STM-DSM-EVO89-OPSI-HOUSING
The STM remote oil pressure line kit includes everything needed to take your oil psi gauge reading from the oil filter housing on 4G63 DSM/Evo or from the engine block for Evo X. Works with any 1/8" NPT sending unit.
Before installing your aftermarket oil pressure gauge, you'll want one of these lines in place to mount the sending unit safe and away from vibration which could cause the sensor to break or fail, leading to oil leaking and engine catastrophe!

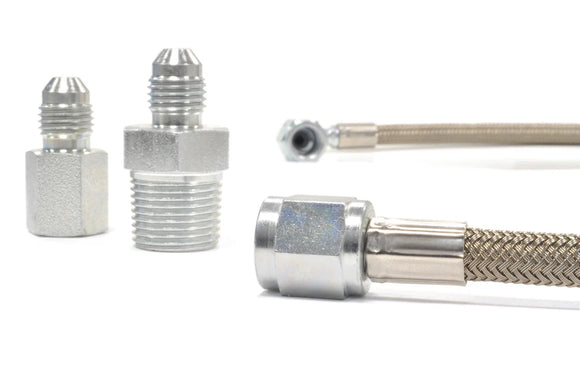

The STM oil line includes a 90° end so it can be configured to suit any build. Strong 4AN stainless braided line protects your oil and the length is 24" so you have plenty of reach for install.
Features:
• 24" length with 90° and straight ends
• 3/8" BSPT fitting for the Evo X block or 4G63 sending unit
• 1/8" NPT fitting accepts most oil pressure sensors/sending units
• Supports longer sending unit life
• Eliminates the chance of engine damage from a sending unit breaking
• Braided stainless steel protection
| Vehicle Fitment: | Install Placement: |
| Evo 8/9 1G/2G DSM |
Installs at the oil filter housing |
| Evo X | Installs at the block Note - be careful removing and installing the plug from the 4B11 aluminum block! |
