Superlift 19-20 Ford Ranger 4WD 2in Leveling Kit

40050

Take your Ford Ranger to a new height with an improved attitude and aggressive look with the Superlift LEVEL-IT 2 inch leveling Kit.  SUPERLIFT’s Level-IT lift system is a perfect solution for anyone wanting an economical and easy way to level front to rear on the all-new 2019-2021 Ford Ranger Truck.

Whether it is simply leveling the truck’s stance or providing increased ground clearance for a more aggressive tire and wheel combination, these Level-It components work with factory suspension components to achieve modest ride height gains without breaking the bank.

Made of strong and durable high construction steel and powder coated, this Level-It kit is a super-simple 100% bolt-on installation and backed by a Limited Lifetime Warranty.

Features:

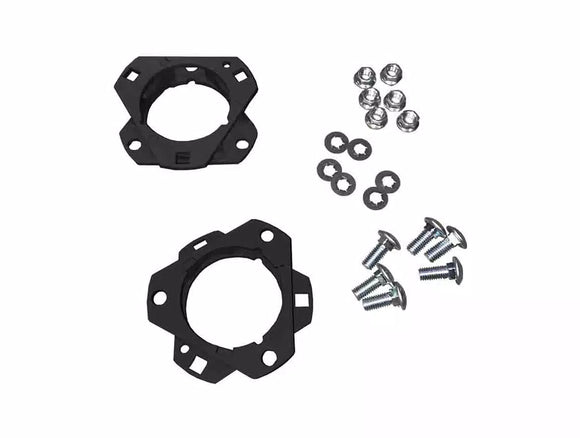

• Front Strut Spacer Leveling Kit
• Retains Factory Ride Quality
• Levels the Front end of the vehicle
• Adds clearance for 32” tires
• Backed by our Limited Lifetime Warranty
• 100% super-simple bolt-on installation
• Made in the USA

Benefits:

• Designed using existing suspension
• Maintain Factory Ride
• Increased Ground Clearance
• No Need to disassemble your struts to install
• Does not require a strut compressor
• Retains OEM caster and camber alignment specifications
• Works with all OEM Model Control Arms
• Corrosion Resistant
• Ideal for restoring lost height due to heavy front bumpers, winch/bumper combo, or snow plows

Technical Notes:

• Does not fit on 2WD version
• Aftermarket Wheels do require a minimum of 93.1mm center bore and max. backspacing of 6.5 inches.
• Aftermarket wheels with less backspacing than recommended may require some trimming
• 9 inch wide aftermarket wheels will require trimming

  Tire	Wheel	Backspacing (INCH)	Offset (MM)
  265|70|R17	Factory
  255|75|R17	Factory
  265|65|R18	Factory
  265|60|R18	18 x 9	6.5 Inch	Plus 18mm
  265|60|R18	18 x 9	6.5 Inch	Plus 30mm
  275|55|R20	20 x 8	5.5 - 6.5 Inch	Plus 18mm
  275|55|R20	20 x 9	6.5 Inch	Plus 30mm

  ***20 Inch wheel requires 93.1mm center bore
  **20x9 aftermarket may require some trimming

  IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

  • Installation time: 2 hours
  • Difficulty level: 2 of 5



  DOWNLOAD INSTALL GUIDE

  • 2019-2022 Ford Ranger With Front Strut Spacer 2 inch Leveling Kit Levels front to rear factory rake Retains Factory Ride Quality Without Tremor Package 4WD
