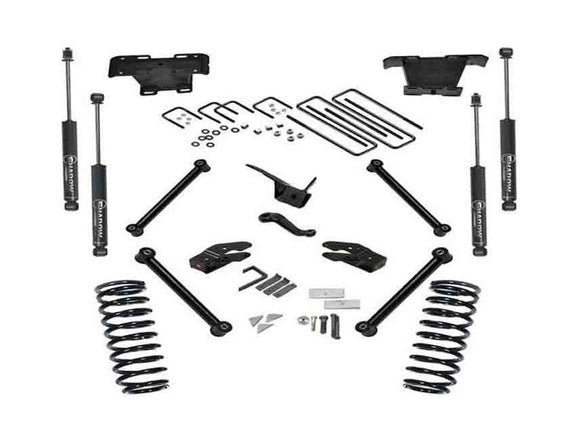

Superlift 00-01 Dodge Ram 1500 4WD 5in Lift Kit Control Arm Kit w/ Superlift Shocks

K101

Superlift's complete coil spring style suspension lift kit for the 2000-2001 Dodge Ram 1500 4wd, providing 5” of lift height.

• Relocating the track bar prevents steering wheel kick and stud bind
• Front anti-sway bar relocation brackets prevent bar pre-load
• Tubular radius arms improve drivability
• Greasable radius arm eye bushings for long, squeak-free life
• Front / rear compression travel stop brackets eliminate over-compression
• Front extension travel limiting straps prevent over-extension
• Special pitman arm relieves drag link angle
• Front / rear Superide shock included

Front lift is via new, pre-set coil springs. Superlift tubular radius arms replace the factory 4-link control arms to decrease link angle and improve overall control and drivability. The new radius arms are constructed of 1.5" diameter x .120" wall thickness DOM tubing and feature Poly eye bushings. Grease fittings at the eyes' pivot points ensure squeak-free operation and increased bushing life.

A dropped pitman arm reduces drag link angle, and Superlift's braced cast steel track bar relocation bracket ensures proper body/axle alignment and steering phasing. Sway bar relocation brackets, suspension compression travel bump-stop relocation brackets, and front axle limiting straps complete the front lift.

For rear lift, add-a-leafs are used in conjunction with blocks to strengthen the spring pack and control axle wrap-up. The lift kit includes front and rear Superide shocks.
