Superlift 2021 Ford F-150 4WD 6in Lift Kit w/King FR Coils & Rear Reservoir Shocks

K130KG

America’s bestselling truck is now crowned! Introducing Superlift’s new KING edition 6 inch lift kits for the 2021 F-150. KING® Shocks and SUPERLIFT® united forces to provide you with a precision-engineered lift system with perfectly matched with perfectly valved coil overs and shocks..  Discover for yourself the reason the world’s toughest race winners choose King Shocks.

These King Superlift edition Coil Overs come completely assembled and ready to bolt in. No assembly or spring compressors needed.

For Superlift's part, OEM CAD models and the latest 3D design was used to create a precision-engineered CNC machined steering knuckles. These CNC knuckles work in conjunction with the heavy duty fabricated steel control arm crossmembers to ensure OE alignment specs.

Features:

• Designed using Original Equipment (OE) CAD data for suspension accuracy
• Ductile Iron Steering Knuckle for durability
• Clearance up to a 35” tire
• Cross-members constructed out of ¼” plate steel.
• Aligns to OEM specifications
• Corrects Front to Rear factory rake for a more level stance

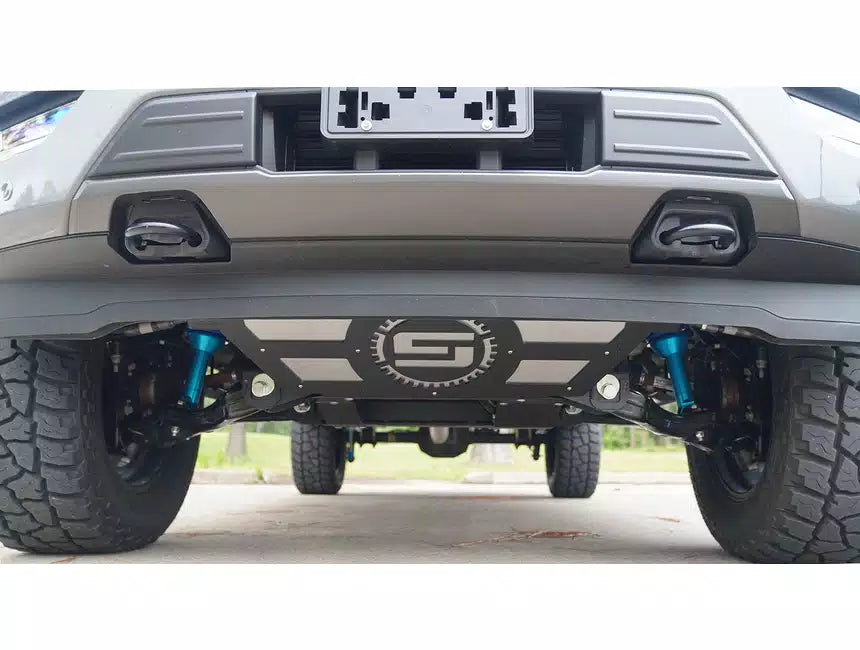

• Front Skid Plate with laser cut Superlift logo.
• Grade 8 Hardware
• Allows for 20” or larger aftermarket wheel
• Backed by our Limited Lifetime Warranty

Benefits:

• Retains OEM alignment specifications
• Industry best ride quality
• No excessive ball joint or steering components
• CV axle angles are in the stock parameters
• Maintains OEM like ride quality and handling characteristics

  Tire	Wheel	Offset (MM)
  35 x 12.50R20	20 x 9	+0 to -12
  35 x 12.50R20	20 x 10	-18 to -24MM

  IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

  • Installation time: 8 hours
  • Difficulty level: 3 of 5
