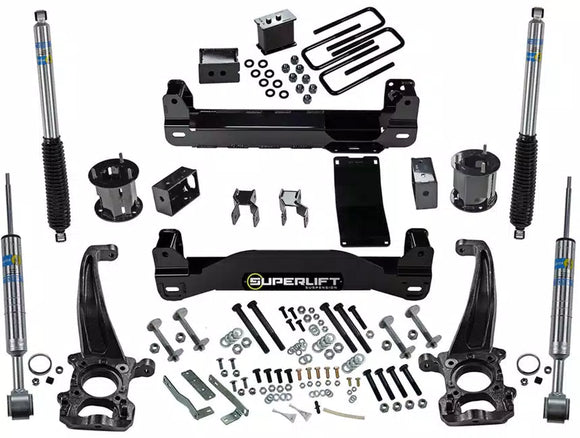

Superlift 04-08 Ford F-150 6in Lift Kit w/ Rear Bilstein Shocks

K174B

Features:

• Direct bolt-on (No Weld Design)
• Allows the use of 18" or larger factory wheels
• Makes room for up to 35" tires
• Maintains awesome ride quality and handling characteristics
• Aligns to OEM specifications
• Corrects front to rear factory rake
• Retains OEM track width

Includes:

Front

• CNC machined extended ductile iron steering knuckles
• CNC machined billet aluminum driveshaft spacer
• All fabricated steel components are laser cut, CNC formed finished with a durable black powder coat
• Front top mount strut spacers
• One-piece front and rear cross members
• Front differential skid plate
• Sway-bar relocation brackets
• Differential relocation brackets
• Brake line relocation brackets
• Eccentric cam-bolts

Rear

• Fabricated lift blocks
• Brake line relocation bracket
• U-bolts and hardware
• Compression stop extensions
• Superlift Shocks (2) OR Bilstein Shocks (2)

• Tire	Wheel	Backspacing	Offset
  35 x 12.5	18 x 9	4.5 -5.7 inch	-
  35 x 12.5	20 x 9	4.5 -5.7 inch	-
  35 x 12.5	22 x 9	4.5 -5.7 inch	-



  IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

  • 2004-2008 Ford F-150 With Bilstein Rear Shocks 6 in. Suspension Lift Kit 4WD
  • Installation time: 8 hours
  • Difficulty level: 3 of 5
  DOWNLOAD INSTALL GUIDE FOR 2004-2008 MODELS
