K424
Superlift's complete Superlift leaf spring suspension lift kit provides 8” lift height.
Features:
- Heavy Duty Front leaf springs
- Durable Urethane spring eye bushings
- Degree shim installed on the front springs to help driveline angle
- Rear lift options include add-a-leaf and block or full replacement rear spring
- Raised steering arm and drop drag link included
- Sway bar drop brackets included
- Front driveshaft spacer available
- Superlift shock absorbers included

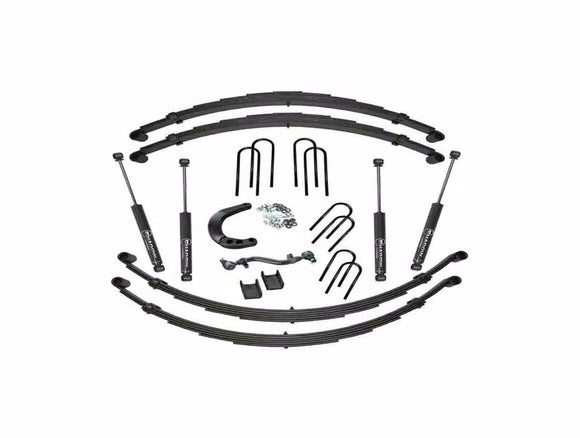

The 8" lift consists of Heavy Duty (HD) front leaf springs, durable Poly spring bushings, replacement front U-bolts, front sway bar brackets, brake hose relocation brackets, replacement rear leaf springs with Poly bushings and rear u-bolt kit. For steering correction, a 4" raised steering arm and a 4" adjustable drag link are also included. The kit is packaged complete with Superlift shock absorbers.
Options include single and dual steering stabilizers, a 4" rear shackle flip kit and a front driveshaft spacer.
NOTE: If the vehicle is factory-equipped with auxiliary (dual) front shocks also order quantity two, part number 85150 Superlift shocks.
NOTE: 88-91 Blazer/Jimmy and Suburban models require additional part number 315-88 bushing sleeve kit.
| Tire | Wheel | Backspacing | Offset |
| 37x12.5 | - | 3.75-4 | - |
IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.
- Installation time: 2 hours
- Difficulty level: 2 of 5
Additional Info
1977.5-91 models require clearance (machining) of the front driveshaft CV cluster to prevent binding. If the vehicle has a single exhaust, the cross-over pipe requires modification to clear front driveshaft.
Optional extended length brake hoses recommended.
Brake line/hose relocating hardware included in kit box. Both driveshafts need to be lengthened.
This is a SwampRunner Series lift system that is intended primarily for off-road or exhibition use. Reference the "Important Product Use" section of the Warranty for additional safety-related information.
Vehicles with 56" long rear spring can use spring if shackle hanger is relocated on frame for 52" long application.
NOTE: If the vehicle is factory-equipped with auxiliary (dual) front shocks also order quantity two, part number 85150 Superide shocks.
NOTE: 88-91 Blazer/Jimmy and Suburban models require additional part number 315-88 bushing sleeve kit.
- 1973-1974 Chevrolet Blazer With Solid Axle 8 in. Suspension Lift Kit With Rear Springs 4WD
- 1987-1991 Chevrolet Blazer With Solid Axle 8 in. Suspension Lift Kit With Rear Springs 4WD
- 1975-1986 Chevrolet K10 With Solid Axle 8 in. Suspension Lift Kit With Rear Springs 4WD
- 1973-1974 Chevrolet K10 Pickup With Solid Axle 8 in. Suspension Lift Kit With Rear Springs 4WD
- 1973-1986 Chevrolet K10 Suburban With Solid Axle 8 in. Suspension Lift Kit With Rear Springs 4WD
- 1975-1986 Chevrolet K5 Blazer With Solid Axle 8 in. Suspension Lift Kit With Rear Springs 4WD
- 1987 Chevrolet V10 With Solid Axle 8 in. Suspension Lift Kit With Rear Springs 4WD
- 1987-1988 Chevrolet V10 Suburban With Solid Axle 8 in. Suspension Lift Kit With Rear Springs 4WD
- 1989-1991 Chevrolet V1500 Suburban With Solid Axle 8 in. Suspension Lift Kit With Rear Springs 4WD
- 1973-1991 GMC Jimmy With Solid Axle 8 in. Suspension Lift Kit With Rear Springs 4WD
- 1975-1978 GMC K15 With Solid Axle 8 in. Suspension Lift Kit With Rear Springs 4WD
- 1975-1978 GMC K15 Suburban With Solid Axle 8 in. Suspension Lift Kit With Rear Springs 4WD
- 1973-1974 GMC K15/K1500 Pickup With Solid Axle 8 in. Suspension Lift Kit With Rear Springs 4WD
- 1973-1974 GMC K15/K1500 Suburban With Solid Axle 8 in. Suspension Lift Kit With Rear Springs 4WD
- 1979-1986 GMC K1500 With Solid Axle 8 in. Suspension Lift Kit With Rear Springs 4WD
- 1979-1986 GMC K1500 Suburban With Solid Axle 8 in. Suspension Lift Kit With Rear Springs 4WD
- 1987 GMC V1500 With Solid Axle 8 in. Suspension Lift Kit With Rear Springs 4WD
- 1987-1991 GMC V1500 Suburban With Solid Axle 8 in. Suspension Lift Kit With Rear Springs 4WD
