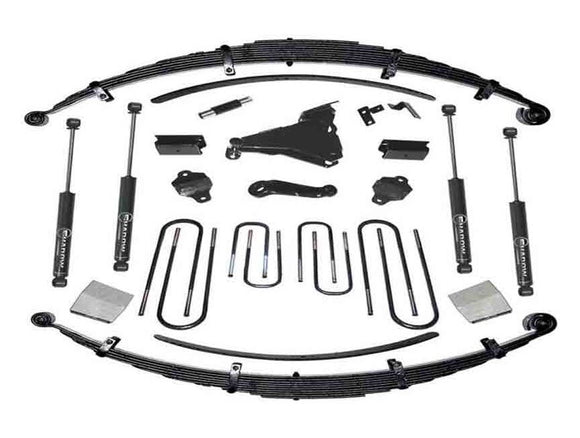

Superlift 00-04 Ford F-250/F-350 SuperDuty 4WD 8in Lift Kit w/ Superlift Shocks

K644

• Springs incorporate military-wrapped spring eyes and anti-friction pads between leafs
• Track bar relocation bracket prevents steering wheel "kick"
• New front anti-sway bar hardware maintain factory bar geometry
• Functional front compression travel stops prevent over-compression and provide a more progressive spring rate; factory rear travel-stops are relocated
• Rear lift via 5" blocks and add-a-leafs
• Front / rear shocks included

NOTE: This lift kit is packaged with rear blocks and u-bolts that are configured for the Ford F-250/F-350 pickups with the factory 1 7/8" blocks without top mount overloads. If your vehicle is equipped with the factory 3.71" block or top mounted overloads, a longer rear u-bolt will be required and is available from us. Please refer to the option's list or call our technical support line for additional details.

• 2000-2004 Ford F-250 Super Duty DIESEL With Superlift Shocks 8 in. Suspension Lift Kit 4WD
• 2000-2004 Ford F-350 Super Duty DIESEL With Superlift Shocks 8 in. Suspension Lift Kit 4WD

  Tire	Wheel	Backspacing	Offset
  37 x 12.5	17 x 9	4.5	-
  38 x 13.5	17 x 9	4.5	-



  IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.
