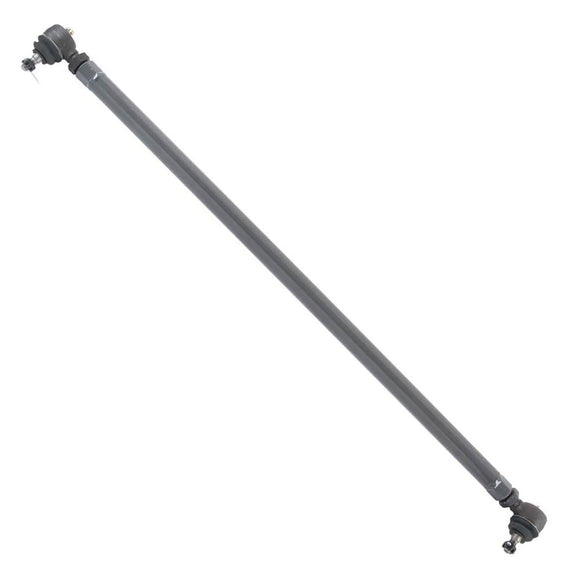

Synergy Jeep TJ/LJ/XJ/ZJ Heavy Duty Tie Rod

2272176 Fitment:
1997-2006 Jeep Wrangler (TJ)
2004-2006 Jeep Wrangler (LJ)
1987-2001 Jeep Cherokee (XJ)
1993-1998 Jeep Grand Cherokee (ZJ)
1987-1992 Jeep Comanche (MJ)
Requirements and Fitment:
Wheel back spacing requirements:
- 15" wheel - max 3.75"
- 16" wheel - max 4.00"
- 17" wheel - max 4.50"
- Minimum of 2" front bump stop spacers required
Fits vehicles with 2-6" of lift
2-4" of lift, must use stock pitman arm
4.5"-6" of lift, must use drop pitman arm
Features:
Tie Rod is made from 1-3/8" 4130 Chromoly and Heat Treated for maximum strength
Comes with Synergy HD metal on metal tie rod ends, 4135-L and 4135-R
Features LH and RH opposing threads to allow adjustment of tie rod length without removal from vehicle
Abrasion-resistant powder coat finish for maximum durability and corrosion resistance
IMPORTANT: Designed to be used with 8121-02 Drag Link only
Min/Max Lengths:
Measured in a straight line from Zerk fitting to Zerk fitting
Tie Rod - Max extended length: 43.750"
Tie Rod - Min in collapsed length: 41.500"
Drag Link - Max extended length: 39"
Drag Link - Min collapsed length: 36.875"
Installation Instructions
