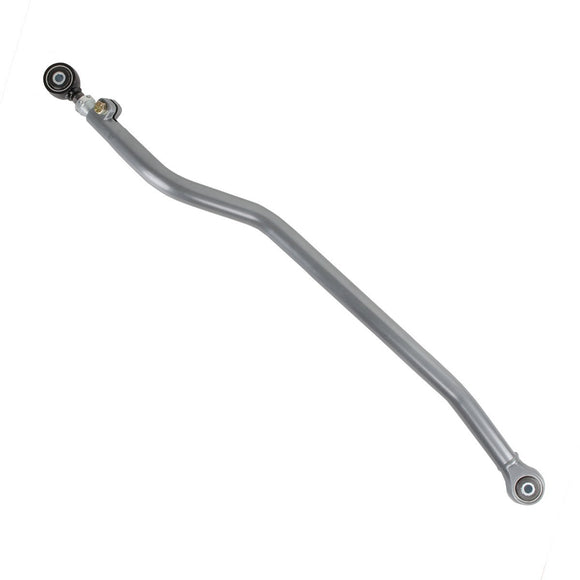

Synergy 03-13 Dodge Ram 1500/2500/3500 4x4 Adjustable Track Bar

2429169 The Synergy 1994-2013 Dodge Ram 1500 / 2500 / 3500 HD Adjustable Track Bar is designed to increase the strength between the frame and axle and is fully adjustable to help center the axle underneath your truck. It can adjusted from 38.625" (.25" shorter than stock) to 39.438". This allows the track bar to be used when lowering trucks for truck pull & race applications (up to 3" lower than factory height) and lifted applications up to 6.0" over factory height for off road use. The bar is bent to clear most aftermarket differential covers and uses maintenance free Synergy Dual Durometer bushings on both ends.
Fitments:
1994 - 2002 Dodge Ram 1500 / 2500 / 3500 with use of Synergy Part 8554-02
2006-2008 Dodge Ram 1500 Megacab 4x4
2003-2013 Dodge Ram 2500 4x4
2003-2013.5 Dodge Ram 3500 4x4
Warning: 2013 Dodge Ram 3500's were a split year for production. If your truck has radius arms use part number 8704-01.
Benefits:
Allows centering of front axle when running a 0-4" suspension lift
Increased Strength from Stock
Adjustable without removing from vehicle
Maintenance Free, no greasing required
Synergy Dual Durometer Bushings eliminate binding issues associated with stock vulcanized bushings
No jam nuts that are impossible to keep tight
No modifications required to install
Isolates Noise, Vibration, and Harshness (NVH) increasing ride quality
Bent to clear most aftermarket differential covers with no additional lift height required
Limited Lifetime Warranty
Features:
Made from high quality 1.5" x .250" wall DOM tubing
Bent to clear most aftermarket differential covers
Retains factory track bar mounting bolts & hardware
Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
Synergy double adjuster sleeve & pinch bolt assembly allows for adjustment of track bar length without removing mounting bolt
Features Synergy Dual Durometer Bushings (DDB) with Teflon® bearing surface for a maintenance free design focusing on performance, flex, longevity, and ride quality
100% bolt on components assures an easy, trouble free installation with the use of basic hand tools
Min/Max Length:
Measured in straight line from center of bolt hole to center of bolt hole
Min collapsed length: 38.625"
Max extended length: 39.438"
Includes:
(1) Synergy Dodge Front Track Bar
(1) Grade 8 Hardware Kit
(1) Synergy Double Adjuster Sleeve
Notes:
8550-11 Replacement Parts (Bars Built after 1/1/2021)
4327-03 Replacement Bushing
4812-01 Replacement Threaded Housing and Bushing Assembly
8550-01 Replacement Parts (Bars built 5/19/2015 - 1/1/2021)
4324-01
4324-02
8550-01 Replacement Parts (Bars built before 5/19/2015)
Upgrade to 4323-01 DDB using Synergy retrofit kit 8529-01
or 4306-01 Bushing Halves
*If you have any trouble identifying your track bar please contact our Support Team Here
