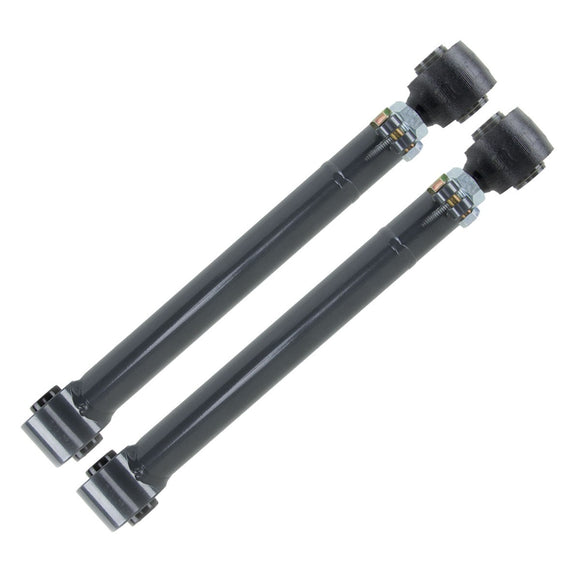

Synergy 94-13 Ram 2500/3500 4x4 Adjustable Front Lower Control Arms

2429320 Synergy Adjustable Front Lower Control Arms are a Heavy Duty upgrade for the stock Dodge Ram control arms. They are adjustable to allow for caster correction and re-centering of the front axle housing for oversize tires and increased ride heights. Our Double Adjuster Assembly allows adjustment of control arm length without removing them from the vehicle and uses a pinch bolt instead of jam nut for ease of use and reliability. Maintenance Free Dual Durometer Bushings are used at both ends for uncompromised articulation and isolation of Noise, Vibration, and Harshness
Fitments:
1994-1999 1500 4x4 2500 / 3500 *Requires 9/16'' hole to be drilled in mount
2000-2001 1500 4x4, 2006-2008 1500 Mega Cab 4x4, 2000-2009 2500 / 3500 with 16mm Bolts
2010-2012 2500 / 3500 with 16/18mm Bolts
Benefits:
Stronger than stock
Lighter than comparable offerings
Increases articulation
Maintenance Free, no greasing required
Isolates Noise, Vibration, and Harshness increasing ride quality
Adjustable to accommodate oversize tires and increased ride heights
Adjustable without removing from vehicle
No jam nuts that are impossible to keep tight
No modifications required to install
Limited Lifetime Warranty
Features:
Made from high quality crush resistant 1.75" x .188" Wall 1026 DOM tubing
Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
Synergy Double Adjuster Sleeve & Pinch Bolt Assembly: allows for adjustment of control arm length without removing control arm mounting bolt
Features Synergy Dual Durometer Bushings (DDB) with Teflon® bearing surface for a maintenance free design focusing on performance, flex, longevity, and ride quality
100% bolt on components assures an easy, trouble free installation with the use of basic hand tools
Sold in pairs
Min/Max Lengths:
Measured in a straight line from center of bolt hole to center of bolt hole
Max extended length: 20.125"
Min collapsed length: 18.375"
Includes:
(2) Heavy Duty Adjustable Front Lower Control Arms
(2) Pinch Bolts and Hardware
Notes:
8565 Cam Bolt Eliminators recommended for increased strength and extended bushing life
8551-04 supersedes old part numbers: 8551-01, 8551-02, and 8551-03
