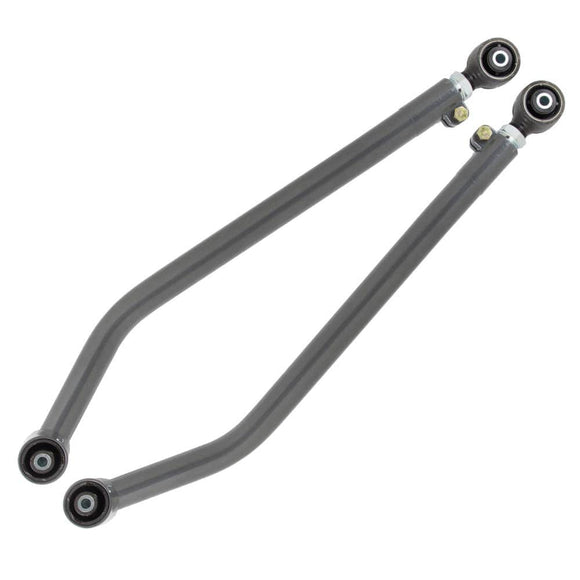

Synergy 03-13 Ram 1500/2500/3500 4x4 Front Long Arm Upper Control Arm - Pair

8585 These Synergy 2003-2013 Dodge Ram 1500 / 2500 / 3500 Front Upper Control Long Arms correct caster and re-center the front axle housing after installing a lift and oversized tires. Correct suspension geometry is critical to high performance and flawless handling on and off road. Our long arms feature the Synergy Double Adjustable Assembly, allowing you to fine tune your link geometry while the arms are installed! We cap them with our maintenance free Dual Durometer Bushings, providing uncompromised articulation and a soft, smooth ride. For unmatched articulation, reliability, and performance, pair these with our Synergy Long Arm Brackets and Front Lower Long Arms.
Fitments:
Part #Description
8585
2006-2008 Dodge Ram 1500 Mega-cab 4x4
2003-2013 Dodge Ram 2500 4x4
2003-2013.5 Dodge Ram 3500 4x4
Warning: 2013 Dodge Ram 3500's were a split year for production. If your truck has radius arms use our 2014+ Dodge Ram Radius Arm Brackets
Benefits:
Eliminates the choppy ride from a short arm suspension on both stock and lifted trucks
Increases wheel travel and reduces the operating angle for maximum off road performance and smoother on road handling
Corrects suspension geometry reducing stress on joints and bushings and allows the suspension to cycle through it's full range of motion
Arms are engineered to maximize ground clearance without inhibiting flex
Allows OEM wheels with larger tires to fit without the requirement of an additional wheel spacer
Adjustments can be done on the fly without removing the control arm due to our Synergy Double Adjuster Sleeve and Pinch Bolt Assembly
Features:
Built from high quality crush resistant 1.75" X .188 Wall 1026 DOM tubing
Premium abrasion-resistant powder coat finish for maximum durability and corrosion resistance
Innovative Synergy Double Adjuster Sleeve and Pinch Bolt Assembly
Synergy Dual Durometer Bushings (DDB) with Teflon® bearing surface for maintenance free joints
100% bolt on components assures an easy, trouble free installation with the use of basic hand tools
Min/Max Lengths:
Measured in a straight line from center of bolt hole to center of bolt hole
Max extended length: 34.125"
Min collapsed length: 32.375"
Includes:
8585
(1) Assembled Dodge Long Arm, Left Upper Control Arm
(1) Assembled Dodge Long Arm, Right Upper Control Arm
Notes:
For a complete front long arm suspension kit, you will need our Synergy Long Arm Upgrade Kit
Designed to be used in conjunction with Synergy Dodge Long Arm Brackets; Fitment with other aftermarket brackets is unknown
Installation Instructions
