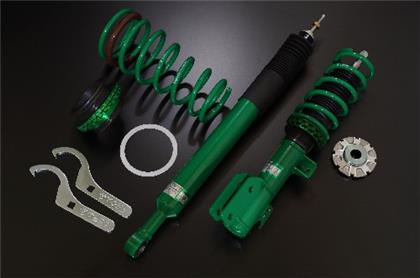

Tein 02-06 Acura RSX Street Basis Z Coilovers

GSA28-8USS2

The Tein STREET BASIS Z Coilover System combines affordability and comfort packaged into a masterfully constructed suspension system. These coilovers utilize a Twin-Tube setup that when compared to the regular mono-tube systems, these twin-tube systems attain longer stroke with a smaller repulsive force, resulting in increased ride comfort. Thanks to this unique characteristic, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speeds.

Front Specifications:

• Damping Force Adjustment: N
• Full-Length Ride-Height Adjustable: N
• Upper Mount: OEM
• Recommended Ride Height (mm): -50
• Recommended Ride Height (inch): -2
• Ride Height Adjustable Range:
  • Max Low (mm): -87
  • Max Low (inch): -3.4
  • Max High (mm): -25
  • Max High (inch): -1
  • Recommended Low (mm): -60
  • Recommended Low (inch): -2.4
  • Recommended High (mm): -40
  • Recommended High (inch): -1.6
• Spring
  • Rate (kgf/mm): 7
  • Rate (lbs/in): 392
  • SP PART#SW070-13175
  • Free Length (mm): 175
  • I.D. (mm): ID70

Rear Specifications:

• Damping Force Adjustment: N
• Full-Length Ride-Height Adjustable: N
• Upper Mount: OEM
• Recommended Ride Height (mm): -55
• Recommended Ride Height (inch): -2.2
• Ride Height Adjustable Range:
  • Max Low (mm): -118
  • Max Low (inch): -4.6
  • Max High (mm): -50
  • Max High (inch): -2
  • Recommended Low (mm): -65
  • Recommended Low (inch): -2.6
  • Recommended High (mm): -50
  • Recommended High (inch): -2
• Spring:
• Rate (kgf/mm): 9
• Rate (lbs/in): 504
• SP PART#SA090-13150
• Free Length (mm): 150
• I.D. (mm): ID70

Fitment:

• Year: 2002-2006
• Make: Acura
• Model: RSX
• Drivetrain: FF
• Chassis: DC5
• Motor Size: 2000
• Vehicle Region: USA

Notes:

• 3Dr/4Cyl. Ft: Lh Has Left-Hand Threads. Be Sure To Tighten In The Correct (Anticlockwise) Direction. (Spring Seat And Lock)

Features:

• Steel Construction
• Twin Tube internal construction
• Thread Type Ride Height Adjustment
• Utilizes OEM Mounts
• 16 way adjustable dampers, compression and rebound combined
• High Durability and Reliability
• Anodized brackets with Teflon coated shock body for heavy duty rust prevention
