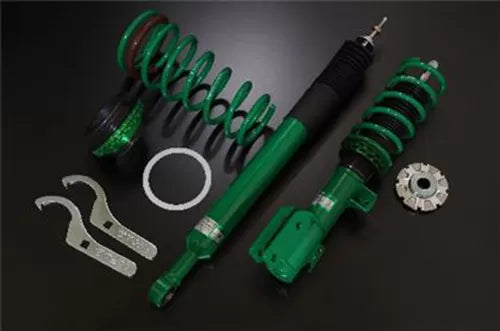

Tein 06-11 Honda Civic Street Basis Z Coilovers

The Tein STREET BASIS Z Coilover System combines affordability and comfort packaged into a masterfully constructed suspension system. These coilovers utilize a Twin-Tube setup that when compared to the regular mono-tube systems, these twin-tube systems attain longer stroke with a smaller repulsive force, resulting in increased ride comfort. Thanks to this unique characteristic, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speeds.

Front Specifications:

• Damping Force Adjustment: N
• Full-Length Ride-Height Adjustable: N
• Upper Mount: OEM
• Recommended Ride Height (mm): -30
• Recommended Ride Height (inch): -1.2
• Ride Height Adjustable Range:
  • Max Low (mm): -65
  • Max Low (inch): -2.6
  • Max High (mm): -13
  • Max High (inch): -0.5
  • Recommended Low (mm): -40
  • Recommended Low (inch): -1.6
  • Recommended High (mm): -20
  • Recommended High (inch): -0.8
• Spring
  • Rate (kgf/mm): 6
  • Rate (lbs/in): 336
  • SP PART#S8B14-13060
  • Free Length (mm): 220

• Damping Force Adjustment: N
• Full-Length Ride-Height Adjustable: N
• Upper Mount: OEM
• Recommended Ride Height (mm): -25
• Recommended Ride Height (inch): -1
• Ride Height Adjustable Range:
  • Max Low (mm): -37
  • Max Low (inch): -1.5
  • Max High (mm): -20
  • Max High (inch): -0.8
  • Recommended Low (mm): -35
  • Recommended Low (inch): -1.4
  • Recommended High (mm): -15
  • Recommended High (inch): -0.6
• Spring:
• Rate (kgf/mm): 7
• Rate (lbs/in): 392
• SP PART#S6B15-13070
• Free Length (mm): 181

• Year: 2006-2011
• Make: Honda
• Model: Civic
• Trim: 2DR/4CYL
• Drivetrain: FF
• Chassis: FG1
• Motor Size: 1800
• Vehicle Region: USA

• 2Dr/4Cyl/Exc Si

• Steel Construction
• Twin Tube internal construction
• Thread Type Ride Height Adjustment
• Utilizes OEM Mounts
• 16 way adjustable dampers, compression and rebound combined
• High Durability and Reliability
• Anodized brackets with Teflon coated shock body for heavy duty rust prevention
