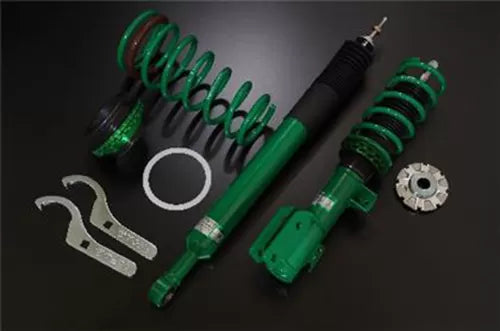

Tein 12-13 Honda Civic Si (FB6/FG4) Street Basis Z Coilovers

GSHC0-8UAS2

The Tein STREET BASIS Z Coilover System combines affordability and comfort packaged into a masterfully constructed suspension system. These coilovers utilize a Twin-Tube setup that when compared to the regular mono-tube systems, these twin-tube systems attain longer stroke with a smaller repulsive force, resulting in increased ride comfort. Thanks to this unique characteristic, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speeds.

Front Specifications:

• Damping Force Adjustment: N
• Full-Length Ride-Height Adjustable: N
• Upper Mount: OEM
• Recommended Ride Height (mm): -40
• Recommended Ride Height (inch): -1.6
• Ride Height Adjustable Range:
  • Max Low (mm): -77
  • Max Low (inch): -3
  • Max High (mm): -34
  • Max High (inch): -1.3
  • Recommended Low (mm): -50
  • Recommended Low (inch): -2
  • Recommended High (mm): -35
  • Recommended High (inch): -1.4
• Spring
  • Rate (kgf/mm): 6
  • Rate (lbs/in): 336
  • SP PART#S8B14-13060
  • Free Length (mm): 220

Rear Specifications:

• Damping Force Adjustment: N
• Full-Length Ride-Height Adjustable: N
• Upper Mount: OEM
• Recommended Ride Height (mm): -35
• Recommended Ride Height (inch): -1.4
• Ride Height Adjustable Range:
  • Max Low (mm): -52
  • Max Low (inch): -2
  • Max High (mm): -6
  • Max High (inch): -0.2
  • Recommended Low (mm): -45
  • Recommended Low (inch): -1.8
  • Recommended High (mm): -25
  • Recommended High (inch): -1
• Spring:
• Rate (kgf/mm): 7
• Rate (lbs/in): 392
• SP PART#S6HC1-13070
• Free Length (mm): 165

Fitment:

• Year: 2012-2015
• Make: Honda
• Model: Civic
• Trim: 2DR/4CYL EXC. Si
• Drivetrain: FF
• Chassis: FG3
• Motor Size: 1800
• Vehicle Region: USA

Notes:

• 2Dr/4Cyl. Non Si Model. A Conversion Kit (Sps12-P9043) Is Required. Ft: Oe Dust Boot Needs To Be Modified. Rr: Oe Spring Insulator Needs To Be Modified.

Features:

• Steel Construction
• Twin Tube internal construction
• Thread Type Ride Height Adjustment
• Utilizes OEM Mounts
• 16 way adjustable dampers, compression and rebound combined
• High Durability and Reliability
• Anodized brackets with Teflon coated shock body for heavy duty rust prevention
