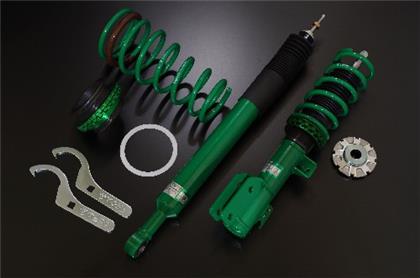

Tein 90-99 Toyota MR2 (SW20L/SW21L) Street Basis Z Coilovers

GST04-8USS2

The Tein STREET BASIS Z Coilover System combines affordability and comfort packaged into a masterfully constructed suspension system. These coilovers utilize a Twin-Tube setup that when compared to the regular mono-tube systems, these twin-tube systems attain longer stroke with a smaller repulsive force, resulting in increased ride comfort. Thanks to this unique characteristic, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speeds.

Features:

• Steel Construction
• Twin Tube internal construction
• Thread Type Ride Height Adjustment
• Utilizes OEM Mounts
• 16 way adjustable dampers, compression and rebound combined
• High Durability and Reliability
• Anodized brackets with Teflon coated shock body for heavy duty rust prevention

Front Specifications:

• Damping Force Adjustment: N
• Full-Length Ride-Height Adjustable: N
• Upper Mount: OEM
• Recommended Ride Height (mm): -35
• Recommended Ride Height (inch): -1.4
• Ride Height Adjustable Range:
  • Max Low (mm): -65
  • Max Low (inch): -2.6
  • Max High (mm): -19
  • Max High (inch): -0.7
  • Recommended Low (mm): -45
  • Recommended Low (inch): -1.8
  • Recommended High (mm): -25
  • Recommended High (inch): -1
• Spring
  • Rate (kgf/mm): 4
  • Rate (lbs/in): 224
  • SP PART#SW040-13175
  • Free Length (mm): 175

Rear Specifications:

• Damping Force Adjustment: N
• Full-Length Ride-Height Adjustable: N
• Upper Mount: OEM
• Recommended Ride Height (mm): -40
• Recommended Ride Height (inch): -1.6
• Ride Height Adjustable Range:
  • Max Low (mm): -70
  • Max Low (inch): -2.8
  • Max High (mm): -20
  • Max High (inch): -0.8
  • Recommended Low (mm): -50
  • Recommended Low (inch): -2
  • Recommended High (mm): -30
  • Recommended High (inch): -1.2
• Spring:
• Rate (kgf/mm): 7
• Rate (lbs/in): 392
• SP PART#JD070-1C230-3
• Free Length (mm): 230

Fitment:

• Toyota MR2 SW20L | SW21L 1990-1999

Note:

• Images are for marketing purposes only. Actual item may vary
