GSY20-91SS2

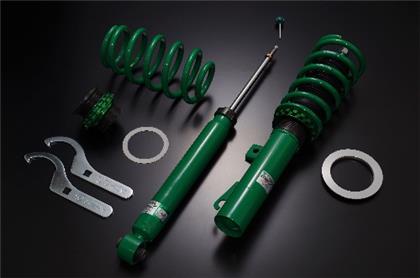

TEIN STREET ADVANCE Z Damper: Performance Meets Precision
The TEIN STREET ADVANCE Z damper is designed to take your driving experience to the next level. Building on the success of the Super Street coilover, this damper offers a sporty feel and an aggressive stance that will transform your vehicle's dynamics. With our innovative Advance Needle technology, you can enjoy a wide range of damping force adjustments that make a noticeable difference in ride quality.
Key Features
- Durable steel construction for long-lasting performance.
- Twin-tube internal design ensures consistent performance.
- Larger piston diameter (22mm) improves responsiveness.
- 16-way damping adjustment provides over 200% increase in damping force change.
- Ride height can be adjusted via the spring seat for optimal customization.
- Powder-coated damper body for enhanced corrosion resistance.
- Non-welded ZT coated adjustment tube for added durability.
- Full-length dust boots protect against debris.
- One-piece aluminum spring seat with Delrin thrust washer for smooth operation.
- Compatible with EDFC for electronic damping force control.
- One-year warranty against manufacturer defects.
Specifications
Front Specifications
- Damping Force Adjustment: Yes
- Upper Mount: OEM
- Recommended Ride Height: -50 mm (-2 inches)
- Ride Height Adjustable Range:
- Max Low: -110 mm (-4.3 inches)
- Max High: -28 mm (-1.1 inches)
- Spring Rate: 9 kgf/mm (504 lbs/in)
- Free Length: 225 mm
Rear Specifications
- Damping Force Adjustment: Yes
- Upper Mount: OEM
- Recommended Ride Height: -40 mm (-1.6 inches)
- Ride Height Adjustable Range:
- Max Low: -100 mm (-3.9 inches)
- Max High: -18 mm (-0.7 inches)
- Spring Rate: 6 kgf/mm (336 lbs/in)
- Free Length: 250 mm
Fitment
- Year: 2001.07 - 2004.11
- Make: Toyota
- Model: Verossa
- Trim: VR25, V25, 25
- Drivetrain: FR
- Chassis: JZx110
- Motor Size: 2500
- Vehicle Region: JPN
Customer Experiences
Many users have reported a significant improvement in their vehicle's handling and ride comfort after installing the TEIN STREET ADVANCE Z dampers. One customer mentioned, "The difference was night and day! The car feels much more planted on the road, and I can adjust the damping to suit my driving style." Another driver appreciated the ease of adjusting the ride height, stating, "Being able to lower my car without sacrificing comfort is a game changer." These testimonials highlight how the STREET ADVANCE Z dampers can enhance both daily driving and spirited adventures.
Watch Us in Action
Images are for marketing purposes only. Actual item may vary
