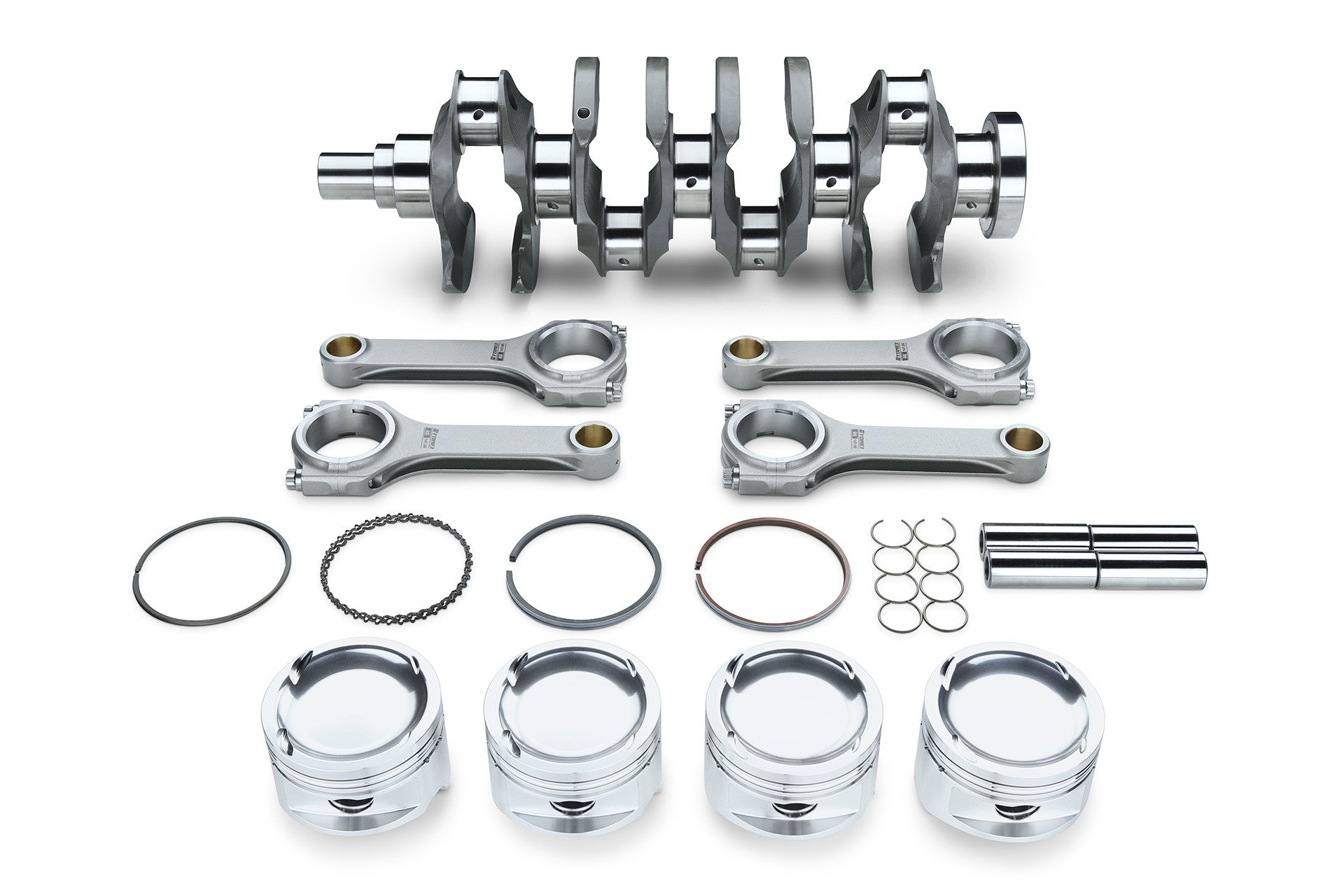

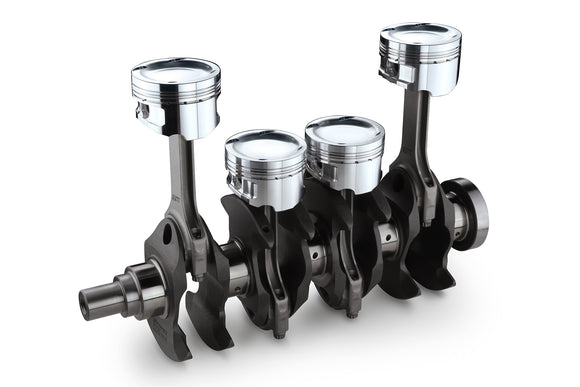

STROKER KIT 4G63 EVO1-9 2.3 TOMEI PISTON

STROKER KIT 4G63 EVO1-9 2.3 TOMEI PISTON

$4,939.99 CAD $4,941.00 CAD Save $1.01 CAD

Tomei SKU: TA201A-MT01B

Earn [points_amount] when you buy this item.

Description Availability

TA201A-MT01B

ITEM DESCRIPTION

Application 4G63
Type TOMEI CP
Bore (mm) 86.00 (OEM +1.0) 86.00 (OEM +1.0)
STROKE (mm) 100.00 (OEM +12.0 ) 100.00 (OEM +12.0)
DISPLACEMENT (cc) 2323.5 2323.5
C.C. VOLUME (cc) 43.0 43.0
PISTON VOLUME (cc) -19.5 -19.6
PISTON DECK CLEARANCE/HIGHT (mm) -0.35 -0.35
PISTON COMP.HEIGHT (mm) 31.65 (OEM -3.35) 31.65 (OEM -3.35)
ROD C-to-C (mm) 147.00 (OEM -3.0) 147.00 (OEM -3.0)
HEAD GASKET BORE (mm) 86.5 86.5
C/R With 86.5-1.0 9.25 9.24
C/R With 86.5-1.2 9.11 9.10
C/R With 86.5-1.5 8.92 8.91
C/R With 86.5-1.8 8.73 8.72

This website does not show live stock.

If the product is in stock we ship same/next day.

If a product needs to be ordered in the typical wait time is 1-2 weeks. This means the product is special ordered.

Shipping times vary depending if the part is in stock at our warehouse and which shipping option is chosen at checkout.

Please contact us for an accurate ETA and availability.
