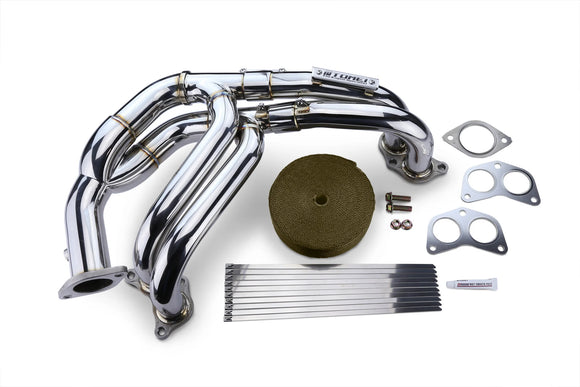

TOMEI EXHAUST MANIFOLD EXPREME GR86/86/FR-S/BRZ FA24/FA20 EQUAL LENGTH Ver.2

TOMEI EXHAUST MANIFOLD EXPREME GR86/86/FR-S/BRZ FA24/FA20 EQUAL LENGTH Ver.2

$1,129.70 CAD

TOMEI SKU: TOMTB6010-SB05B

Earn [points_amount] when you buy this item.

Description Availability

TB6010-SB05B

Item Description


Equal Length for Total Balance
Unequal Length for Boxer Sound


APPLICATION FA24 GR86 ZN8 / BRZ ZD8
FA20 *1 86 ZN6 / FR-S ZN6 / BRZ ZC6

*1 FA20 models require the use of exhaust manifold ver.2 and joint pipe ver.2 together.


Significant Performance Gains

Tested with the 45mm Ver.2-Unequal and showed excellent performance across the entire RPM range.


Bigger Diameter 45.0mm

The large 45mm diameter creates even more power and sound.


Great Attention to Details

Bigger Diameter 45.0mm

Supports compression ratio adjustment with thicker gaskets

AF/O2 Sensor Bung

Compatible with OEM sensors

Lightweight/high rigidity flange

Custom design by lost wax

AF/O2 Sensor Bung

Achieving a complex layout that pursues efficiency

FA24/FA20 Fully Compatible

Ver.2 is engineered to provide optimal clearance for the oil pan and other components of the FA24 model, while also ensuring a perfect fit with the FA20, making it compatible with both models.

The FA24 can be used with just the exhaust manifold, but we recommend using it in combination with a more efficient joint pipe.


Stock Comparison

EXHAUST MANIFOLD

Main Pipe Diameter


Engine Side Port Effective Diameter


Joint Pipe Side Port Effective Diameter


Weight


4 -2 Collector


4 -2 After Collector Piping


Concept of Layout


JOINT PIPE

Main Pipe Diameter


Port Effective Diameter


Weight


Titan Exhaust Bandage Included

Basalt fiber bandages are optimal for pursuing exhaust efficiency and preventing thermal damage.


■ Equal Length ■

■ Unequal Length ■


■ Equal Length ■

■ Unequal Length ■


FA24/FA20 EXHAUST MANIFOLD/JOINT PIPE APPLICATION LIST

ENGINE TYPE PIPE DIA PART No.   FA24 FA20
 2021-  2012-
2020
New
FA24/
FA20		 New
UNEQUAL ver.2		 Φ45.0 TB6010-SB05A
〇 △ *1
New
EQUAL
ver.2		 TB6010-SB05B
〇 △ *1
New
JOINT PIPE ver.2		 Φ60.5 TB6060-SB05A
〇 △ *1
FA20 UNEQUAL Φ42.7 TB6010-SB03B
△ *2 〇
EQUAL TB6010-SB03A
  〇
JOINT PIPE Φ60.5 TB6060-SB03A
△ *3 〇

*1 TB6060-SB05A Installation can be possible by using it in combination with a joint pipe.
*2 TB6060-SB03A Installation can be possible by using it in combination with a joint pipe.
*3 TB6010-SB03A Installation can be possible by using it in combination with a Unequal EX-MANI.
