Torque Solution Fast Response SD IAT Sensor Kit GM Style IAT Sensor w/ Pigtail & Stainless Weld Bung

Torque Solution Fast Response SD IAT Sensor Kit GM Style IAT Sensor w/ Pigtail & Stainless Weld Bung

$45.98 CAD $51.31 CAD Save $5.33 CAD

Torque Solution SKU: TS-ES-IAT-GMPS

Earn [points_amount] when you buy this item.

Description Availability

TS-ES-IAT-GMPS

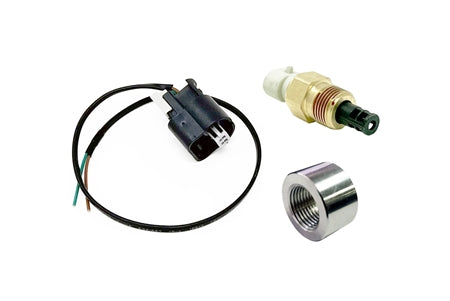

Torque Solution Fast Response SD IAT Sensor KIT
Applications: Universal GM Style IAT Sensor w/ Pigtail and Stainless Steel Weld Bung

Torque Solution Fast Response IAT Sensor is the perfect choice when converting to a speed density setup or just needing to replace your existing GM IAT sensor. This kit comes paired with our pigtail wire harness and stainless steel weld-on 3/8" bung for the complete package.

- Fast Response
- Torque Solution Direct Fit for GM Style IAT Sensor
- Torque Solution IAT / Speed Density Pigtail Harness
- Torque Solution Weld Bung: 3/8" (-18) NPT Female Stainless Steel
- 1 Year Warranty

Sensor Specifics:
- Typical Voltage Supply: 5V DC
- Operating Temperature: -40 C to 135 C
- Sensor Body Material: Brass
- Hex Size: 18.90 mm (3/4")
- Thread Size: 3/8" - 18 NPTF w/ Thread Sealing Compound
- Sealing Pressure: 200 kPa

Interchangeable With The Below Part Numbers:
- AC Delco / GM Part #'s: 25036751, 5S1007, AJ0005, TS10077, 213-190, 25037334, 213190, 213192, 25037034, 25037225, 5744430, 8250373340, SU107, 8250367510, 213191, 25036950, 25095187, 3854527, 38545273
- AEM 30-2010
- Haltech HT-010204
- Other GM Style IAT Sensors

This website does not show live stock.

If the product is in stock we ship same/next day.

If a product needs to be ordered in the typical wait time is 1-2 weeks. This means the product is special ordered.

Shipping times vary depending if the part is in stock at our warehouse and which shipping option is chosen at checkout.

Please contact us for an accurate ETA and availability.
