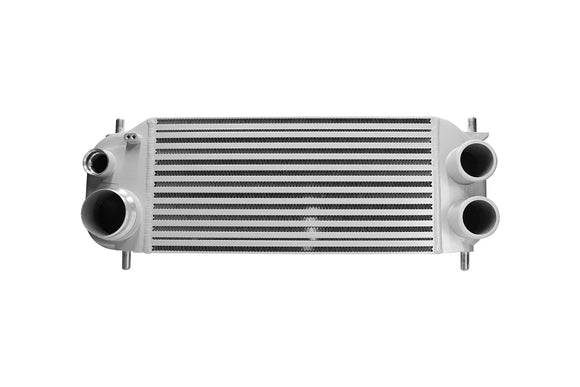

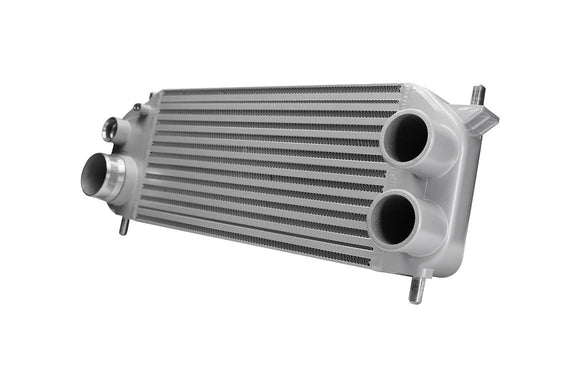

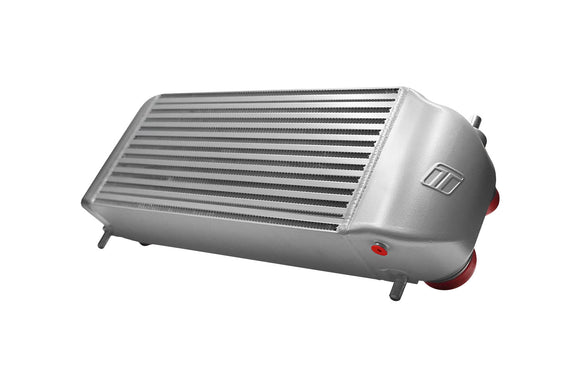

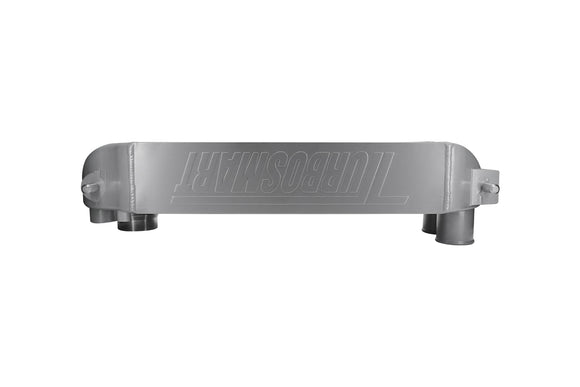

Turbosmart Ford F-150 2.7L/3.5L Ecoboost Performance Intercooler - Silver

TS-CCA-VSFD001S

The F150 EcoBoost intercooler upgrade from Turbosmart is a direct bolt on upgrade for the factory intercooler. Massive increases in surface area and thermal mass, designed to increase mass-air flow even on standard and mildly modified engines while also providing maximum flow and efficiency for highly tuned vehicles. Includes a built a maintenance drain for blow by and condensation.

The CFD design driven and real world validated F150 intercooler upgrade has been developed to ensure a direct replacement for the factory unit, including factory locating pin / mount positions and integration with the factory / factory style charge pipes while providing an enormous +80% increase in cooling surface area with the same quality, performance and support you’ve come to expect from Turbsomart.

Available Colors
Silver
Black

Features
Bar and plate charge cooler design
TIG welded, no cutting, no trimming, no fabrication
80% increase in cooling surface area
Maintenance drain for condensation and blow-by
CFD modeled end-tanks for maximally balanced flow
End tanks design optimized to support OE mounts
Cast Aluminium, CFD driven design end tanks
Compatible with OEM shutter shroud
Compatible with OEM ECU calibration
Compatible with OEM and OEM style charge pipes

Note: Suitable for all Ford F150 2.7L and 3.5L EcoBoost powered V6 turbocharged vehicles including Raptor.
