3049-150
PRODUCT DESCRIPTION

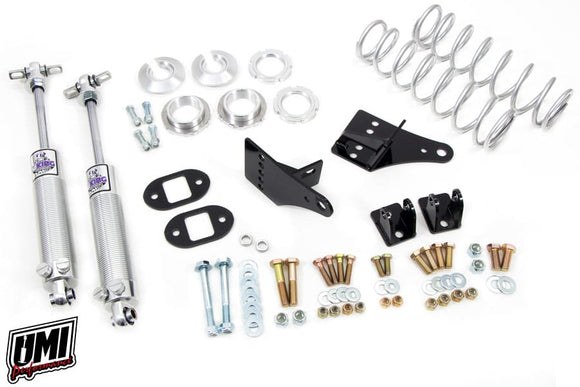

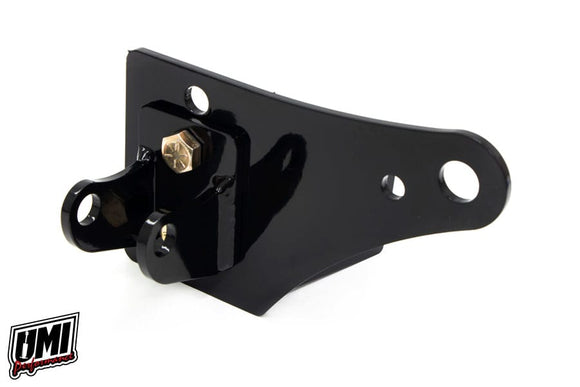

UMI’s bolt-in rear coilover kit allows for full adjustability of ride height, spring rate, and damping for 1978-1988 GM G-Body vehicles. The kit includes a direct bolt-in upper mount reinforcement for a 2-½” racing coilover with T-Bar. The lower bracket, designed using FEA, bolts in using the standard trailing arm mounting hole and an additional reinforcement hole. It features a multi-position design for fine tuning of ride height and shock location. The Viking shock included is 19-way adjustable in both compression and rebound. Coilover springs are available in 110lb and 150lb rates for different applications. There is no cutting required, and the car can be returned to stock if desired. The kit also works with UMI P/N 3010 weld-on relocation brackets. Optional Spanner Wrench & Thrust Bearing Kit: The spanner wrench tool is used for adjusting vehicle height while the shock remains mounted. The thrust bearing kit is recommended for easier adjustments between the spring and spring seat attached to the shock. Optional Shock Tower Brace P/N 3055: Designed for additional chassis reinforcement by tying the rear shock towers together. It is designed to clear most popular exhaust systems but fitment with all exhaust systems is not guaranteed. Overall, UMI’s rear coilover kit offers adjustability, durability, and performance for GM G-Body vehicles.
PRODUCT FEATURES
- Designed for 2” – 3” lowering
- Bolt in design mounts to factory rear end housings
- Included Viking Warrior double adjustable shocks offer 19 compression and 19 rebound adjustments
- Available in 110lb or 150lb spring rates
- Adjustable height lowering mounting bracket allows shock travel tuning and additional ride height tuning
- Brackets manufactured entirely from 3/16” Made In USA mild steel
- Powder coated for a long lasting finish
- Sliding slot included for use with control arm relocation brackets
- Optional shock tower reinforcement brace available (P/N 3055)
- Designed, tested, manufactured and raced in Philipsburg, PA-USA
This '3049-X - 1978-1988 GM G-Body Rear Coilover Kit, Bolt In, 2”-3” Lowering' fits the following platforms:
1978-1988 GM G-Body
- 1978-1987 Buick Regal
- 1978-1987 Chevrolet El Camino
- 1978-1983 Chevrolet Malibu
- 1978-1988 Chevrolet Monte Carlo
- 1978-1987 GMC Caballero
- 1978-1988 Oldsmobile Cutlass
- 1982-1986 Pontiac Bonneville
- 1978-1987 Pontiac Grand Prix
This 3049-X - 1978-1988 GM G-Body Rear Coilover Kit, Bolt In, 2”-3” Lowering fits the following vehicles:
Buick
Regal
- 1978 Buick Regal
- 1979 Buick Regal
- 1980 Buick Regal
- 1981 Buick Regal
- 1982 Buick Regal
- 1983 Buick Regal
- 1984 Buick Regal
- 1985 Buick Regal
- 1986 Buick Regal
- 1987 Buick Regal
Chevrolet
El Camino
- 1978 Chevrolet El Camino
- 1979 Chevrolet El Camino
- 1980 Chevrolet El Camino
- 1981 Chevrolet El Camino
- 1982 Chevrolet El Camino
- 1983 Chevrolet El Camino
- 1984 Chevrolet El Camino
- 1985 Chevrolet El Camino
- 1986 Chevrolet El Camino
- 1987 Chevrolet El Camino
Malibu
- 1978 Chevrolet Malibu
- 1979 Chevrolet Malibu
- 1980 Chevrolet Malibu
- 1981 Chevrolet Malibu
- 1982 Chevrolet Malibu
- 1983 Chevrolet Malibu
Monte Carlo
- 1978 Chevrolet Monte Carlo
- 1979 Chevrolet Monte Carlo
- 1980 Chevrolet Monte Carlo
- 1981 Chevrolet Monte Carlo
- 1982 Chevrolet Monte Carlo
- 1983 Chevrolet Monte Carlo
- 1984 Chevrolet Monte Carlo
- 1985 Chevrolet Monte Carlo
- 1986 Chevrolet Monte Carlo
- 1987 Chevrolet Monte Carlo
- 1988 Chevrolet Monte Carlo
GMC
Caballero
- 1978 GMC Caballero
- 1979 GMC Caballero
- 1980 GMC Caballero
- 1981 GMC Caballero
- 1982 GMC Caballero
- 1983 GMC Caballero
- 1984 GMC Caballero
- 1985 GMC Caballero
- 1986 GMC Caballero
- 1987 GMC Caballero
Oldsmobile
Cutlass
- 1978 Oldsmobile Cutlass
- 1979 Oldsmobile Cutlass
- 1980 Oldsmobile Cutlass
- 1981 Oldsmobile Cutlass
- 1982 Oldsmobile Cutlass
- 1983 Oldsmobile Cutlass
- 1984 Oldsmobile Cutlass
- 1985 Oldsmobile Cutlass
- 1986 Oldsmobile Cutlass
- 1987 Oldsmobile Cutlass
- 1988 Oldsmobile Cutlass
Pontiac
Bonneville
- 1982 Pontiac Bonneville
- 1983 Pontiac Bonneville
- 1984 Pontiac Bonneville
- 1985 Pontiac Bonneville
- 1986 Pontiac Bonneville
Grand Prix
- 1978 Pontiac Grand Prix
- 1979 Pontiac Grand Prix
- 1980 Pontiac Grand Prix
- 1981 Pontiac Grand Prix
- 1982 Pontiac Grand Prix
- 1983 Pontiac Grand Prix
- 1984 Pontiac Grand Prix
- 1985 Pontiac Grand Prix
- 1986 Pontiac Grand Prix
- 1987 Pontiac Grand Prix
