31122405862
Description
Details
- SKU:
- BMW-31122405862
-
OE Numbers
- 31126769798, 31126769802, 31124036270, 31122405862
Product Information

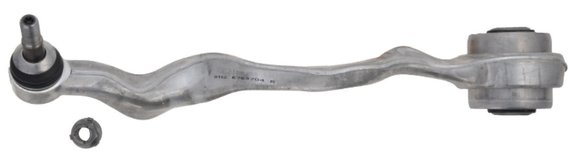

Referred to as a tension strut, per BMW it is mandatory to replace in matched pairs
Your BMW's tension strut is designed to locate the entire front strut assembly. It is under constant tension from suspension movements as well as road forces. Over time the inner bushing is known to fail allowing for this assembly to move freely resulting in poor handling, vibration, and noises.
FCP recommend replacing this control arm in matched pairs per BMW TIS recommendations.
Control arms are crucial link in a vehicle's suspension connecting the suspension to a vehicle's subframe. These pieces are usually hinged to allow for suspension to travel and articulate as the vehicle rides over obstructions in the road and while the vehicle turns. Many vehicles such as those with independent suspensions have multiple links and feature several connection points and arms to offer better ride quality and comfort.
As bushings and joints in a control arm begin to wear you may notice a looseness feel in your suspension. And while many arms have replaceable and serviceable individual components, many still require the replacement of the entire arm. Below are signs of when a replacement control arm may be needed:
Suspension Control Arm Failure Symptoms- Play in suspension joints where these arms meet the subframe and/or knuckle
- Buckling noise emanating from the suspension
- Uneven tire wear
- Inability to properly align vehicle
- Shutter or vibration coming from the steering wheel at highway speed
- Wandering or pulling sensation from side to side felt on the steering wheel
Referred to as a Tension Strut by BMW - Includes Hydraulic Mount
TRW Suspension Tension Strut
TRW control arms can help improve fuel economy, emissions, energy savings, driving comfort and most important, safety. TRW provides hardware kits as standard on all ball joints, installation instructions and catalog information in all formats.
Upper and lower Control Arms designed as:
- Aluminium forged Control Arms
- Aluminium cast Control Arms - low weight/high performance
- Steel forged Control Arms
- Steel stamped Control Arms
Ball Joints include the latest state-of-the-art high performance designs:
- Temperature resistant
- Low-torque/high comfort solution
- Ball stud diameters ranging from 25 to 42mm
- Integral and non-integral designs
Built in Bushes:
- Rubber Bushes
- Rubber and Metal Bushes
- Hydraulic Bushes
36 MONTH / 36,000 MILE LIMITED WARRANTY
TRW warrants this product to be free from defects in material or workmanship in accordance with the following: This limited warranty shall be for a period of 36 months or 36,000 miles, whichever occurs first from the date the automotive part is delivered to the final consumer but no later than 6 months after the invoiced date.
TRW Automotive
TRW is one of the world’s leading providers of Original Equipment chassis systems. TRW now manufactures one quarter of the world’s chassis components - leading the market in the design, development, manufacture and integration of chassis systems for passenger cars.
With over 40 vehicle manufacturers as customers, TRW’s Original Equipment business has to be able to adapt its technologies to the demands of very different vehicles, from the most basic in developing countries to some of the most sophisticated vehicle systems in the world.
Fits These Cars
BMW 330i
-
2006 BMW 330i Suspension Control ArmPosition: Front Right Forward
BMW 325i
-
2006 BMW 325i Suspension Control ArmPosition: Front Right Forward
BMW 328i
-
2007 BMW 328i Suspension Control ArmPosition: Front Right Forward
-
2008 BMW 328i Suspension Control ArmPosition: Front Right Forward
-
2009 BMW 328i Suspension Control ArmPosition: Front Right Forward
-
2010 BMW 328i Suspension Control ArmPosition: Front Right Forward
-
2011 BMW 328i Suspension Control ArmPosition: Front Right Forward
-
2012 BMW 328i 3.0L L6 Suspension Control ArmBody: Convertible, Chassis: E93, Position: Front Right Forward
-
2012 BMW 328i 3.0L L6 Suspension Control ArmBody: Coupe, Chassis: E92, Position: Front Right Forward
-
2012 BMW 328i 3.0L L6 Suspension Control ArmBody: Wagon, Chassis: E91, Position: Front Right Forward
-
2013 BMW 328i 3.0L L6 Suspension Control ArmBody: Convertible, Chassis: E93, Position: Front Right Forward
-
2013 BMW 328i 3.0L L6 Suspension Control ArmBody: Coupe, Chassis: E92, Position: Front Right Forward
BMW 335i
-
2007 BMW 335i Suspension Control ArmPosition: Front Right Forward
-
2008 BMW 335i Suspension Control ArmPosition: Front Right Forward
-
2009 BMW 335i Suspension Control ArmPosition: Front Right Forward
-
2010 BMW 335i Suspension Control ArmPosition: Front Right Forward
-
2011 BMW 335i Suspension Control ArmPosition: Front Right Forward
-
2012 BMW 335i Suspension Control ArmBody: Convertible, Chassis: E93, Position: Front Right Forward
-
2012 BMW 335i Suspension Control ArmBody: Coupe, Chassis: E92, Position: Front Right Forward
-
2013 BMW 335i Suspension Control ArmBody: Convertible, Chassis: E93, Position: Front Right Forward
-
2013 BMW 335i Suspension Control ArmBody: Coupe, Chassis: E92, Position: Front Right Forward
BMW 128i
-
2008 BMW 128i Suspension Control ArmPosition: Front Right Forward
-
2009 BMW 128i Suspension Control ArmPosition: Front Right Forward
-
2010 BMW 128i Suspension Control ArmPosition: Front Right Forward
-
2011 BMW 128i Suspension Control ArmPosition: Front Right Forward
-
2012 BMW 128i Suspension Control ArmPosition: Front Right Forward
-
2013 BMW 128i Suspension Control ArmPosition: Front Right Forward
BMW 135i
-
2008 BMW 135i Suspension Control ArmPosition: Front Right Forward
-
2009 BMW 135i Suspension Control ArmPosition: Front Right Forward
-
2010 BMW 135i Suspension Control ArmPosition: Front Right Forward
-
2011 BMW 135i Suspension Control ArmPosition: Front Right Forward
-
2012 BMW 135i Suspension Control ArmPosition: Front Right Forward
-
2013 BMW 135i Suspension Control ArmPosition: Front Right Forward
BMW 335d
-
2009 BMW 335d Suspension Control ArmPosition: Front Right Forward
-
2010 BMW 335d Suspension Control ArmPosition: Front Right Forward
-
2011 BMW 335d Suspension Control ArmPosition: Front Right Forward
BMW Z4
-
2009 BMW Z4 Suspension Control ArmPosition: Front Right Forward
-
2010 BMW Z4 Suspension Control ArmPosition: Front Right Forward
-
2011 BMW Z4 Suspension Control ArmPosition: Front Right Forward
-
2012 BMW Z4 Suspension Control ArmPosition: Front Right Forward
-
2013 BMW Z4 Suspension Control ArmPosition: Front Right Forward
-
2014 BMW Z4 Suspension Control ArmPosition: Front Right Forward
-
2015 BMW Z4 Suspension Control ArmPosition: Front Right Forward
-
2016 BMW Z4 Suspension Control ArmPosition: Front Right Forward
BMW 335is
-
2011 BMW 335is Suspension Control ArmPosition: Front Right Forward
-
2012 BMW 335is Suspension Control ArmPosition: Front Right Forward
-
2013 BMW 335is Suspension Control ArmPosition: Front Right Forward
BMW 135is
-
2013 BMW 135is Suspension Control ArmPosition: Front Right Forward
