37830-PGK-A01

15078

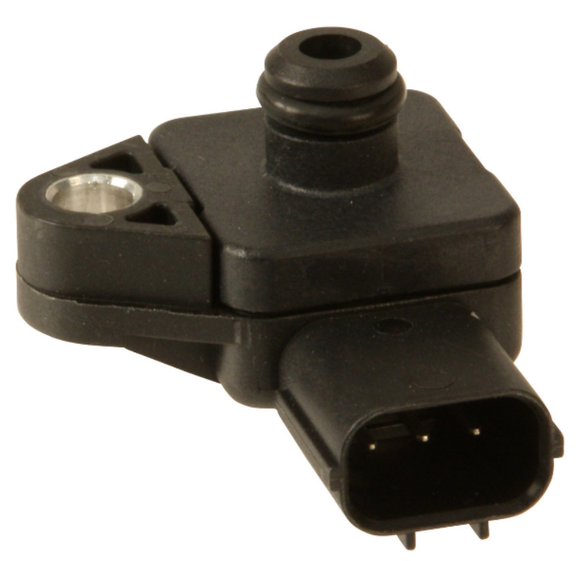

FAE MAP Sensor

The FAE MAP sensor, absolute pressure of admission, detects the air pressure at the inlet of the vehicle and turns it into an electrical signal which is sent to the engine’s electronic control unit (ECU) in order to regulate the stoichiometric mixture.

Some models do have a NTC type temperature sensor that allows the MAP to detect, not only the pressure, but also the air temperature at the inlet. This information is necessary for the ECU to calculate the mass of intake air in order to be able to adjust the air-fuel mixture. The sensor element of the MAP is a piezoresistive type configured as a Wheatstone bridge, - its electrical resistance varies according to the mechanical de- formation of a membrane.

Features and Benefits:

• The sensor element is integrated in a MEMS-type DIE which amplifies, performs a thermal compensation and conditions the signal
• The incorporated digital electronics allow us to program the output signal
• The DIE is mounted on a ceramic circuit and its electrical connections are made by bonding
• Protected with a receptacle and a silicone gel
• The electronic circuit is achieved through hybrid technology and is handled in a clean room due to its sensitive nature.

Acura MDX 2001-2006
Acura RSX 2002-2004
Acura TL 2004
Acura TSX 2004
Honda Accord 2003-2004 2.4 L4
Honda CR-V 2002-2004
Honda Civic 2001-2003
Honda Civic 2004 1.3 L4
Honda Civic 2004 Si 2.0 L4
Honda Civic 2004 1.7 L4
Honda Civic 2005
Honda Element 2003-2006
Honda Odyssey 2001-2004
Honda Pilot 2003-2004
