PRODUCT DETAILS:
- Qty x1 - Oil Pan (Baffled or Non Baffled) (Select Above)
- Qty x3 - Turbo Drain Plugs (Plugs Only)
Note: If you want to install a turbo drain fitting, the size is -10 ORB. (Select Above)
PLEASE NOTE: THE OIL PANS DO NOT COME WITH GASKETS, YOU MUST OPT IN FOR THAT IF DESIRED. (Select Above)

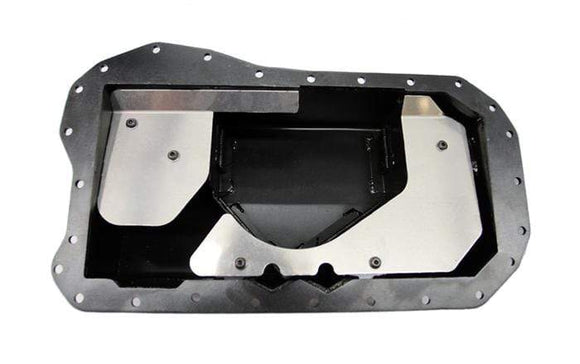

BAFFLED KEY FEATURES INCLUDE:
- 1/4" Plated steel construction to ensure rigidity and structural integrity while maintaining an OEM like overall weight.
- True Baffled Oil Pan system utilizing the MKV R32 Oil Pump (OEM PART# : 022 115 105 E) with steel constructed basket to maintain oil around the oil pump pick up at all times.
- True steel hinged trap doors
- 1.1 Kg's heavier than the OEM MKV R32 Oil Pan
- Laser cut pan rail & steel constructed walls
- (1) 10-AN ORB Supercharger oil return port at the front of the Oil Pan
- (2) 10-AN ORB Turbocharger oil returns ports at the rear of the Oil Pan for both 4Motion and Non-4Motion setups.
- Oil pan drain relocated to the passenger side wheel (LHD vehicles) to allow MK3 users the ability to run an anti-roll bar without interference with oil pan drain.
- Universal VR6 design allowing fitment on both 12V VR6 motors as well as 24V (2.8 & 3.2) VR6 motors.

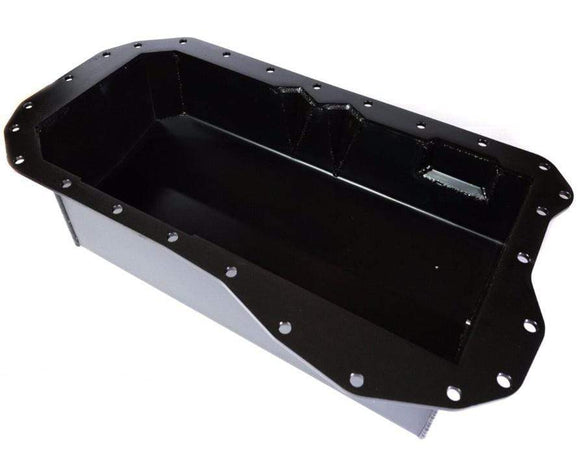

NON BAFFLED KEY FEATURES INCLUDE:
- Oil pan drain relocated to the passenger side wheel (LHD vehicles) to allow MK3 users the ability to run an anti-roll bar without interference with oil pan drain.
- Universal VR6 design allowing fitment on both 12V VR6 motors as well as 24V (2.8 & 3.2) VR6 motors.
- 3/16" Plated steel construction to ensure rigidity and structural integrity and added strength.
- With a shorter pan it requires the oil pump from an MK5 R32 that is 1 inch shorter.
- Available with or without an OEM MK5 R32 oil pump (required)

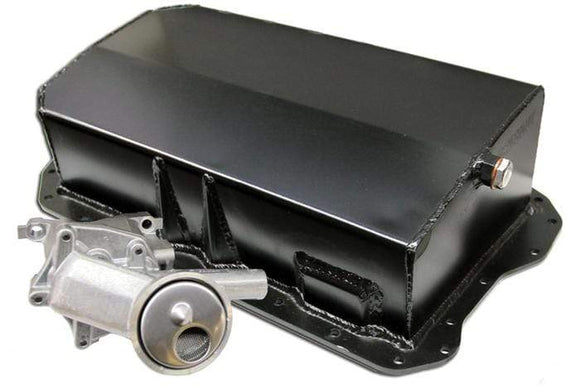

MK5 R32 oil pump is required to install this pan - with a shorter pan it requires the oil pump from an MK5 R32 that is 1 inch shorter.
Fits the following engines: 12V, 24V, R32. Does NOT fit 3.6 VR6.
OEM Oil pan comparison. With the hump removed we are able to add more volume and capacity.
IMPORTANT: Oil pan REQUIRES the use of a Mk5 R32 Oil pump (022115105E) for clearance purposes!
This Part Fits The Following Vehicles
| MAKE | MODEL | SUBMODEL | ENGINE | DRIVETRAIN |
|---|---|---|---|---|
| Volkswagen | Corrado (1990-1995) | VR6 | ||
| Volkswagen | Mk3 (1994-1999) | GTI | VR6 | |
| Volkswagen | Mk3 (1994-1999) | Jetta | VR6 12v | |
| Volkswagen | Mk4 (1999.5-2005) | GTI | 12v VR6 | |
| Volkswagen | Mk4 (1999.5-2005) | GTI | 24v VR6 (2002+) | |
| Volkswagen | Mk4 (1999.5-2005) | Jetta | 12v VR6 | |
| Volkswagen | Mk4 (1999.5-2005) | Jetta | 24v VR6 (2002+) | |
| Volkswagen | Mk4 Golf R32 (2004) | 3.2L VR6 | ||
| Volkswagen | Mk5 Golf R32 (2008) | 3.2L VR6 | ||
| Volkswagen | Passat B3 (1990-1994) | VR6 |
