VMP Performance Gen3 Throttle Body Adapter Plate For VMP 163R Throttle Body

VMP-INA022

Use this adapter to install the the VMP 163R throttle body on the VMP Gen 3 Supercharger.

The 163R was designed to be a direct fit for Gen 3R and Odin, this adapter allows you to install it on the older VMP Gen 3 Supercharger with no modifications necessary!

Features:

• Adapter plate for VMP Super Mono 163R Throttle Body (82mm x 153mm) - Also works with other throttle bodies such as FR65, VMP 67, 69, and 137.
• Adapts the custom Gen 3 bolt pattern down to a stock bolt pattern.
• Includes two countersunk bolts for left hand side.
• Includes throttle body side gasket.
• Quality billet aluminum plate - black anodized.

Allows 163R fitment on the following superchargers:

• VMP Gen 3 2.65 L TVS
• Other Superchargers with a standard opening size (155mm x 78mm)

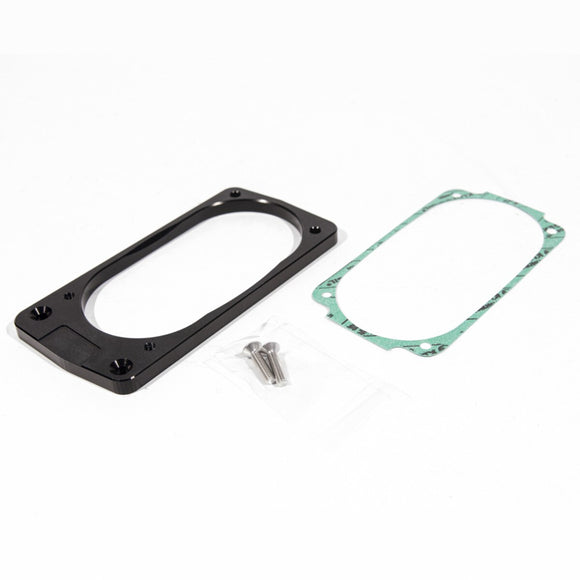

Includes (1) adapter plate, (1) gasket for TB side, (2) M6x25mm SS flat head allen bolts
*Throttle body not included

Note: Does not fit Ford twin 60mm cast throttle body as the opening is too large on the adapter plate.
