VMP-SUA032

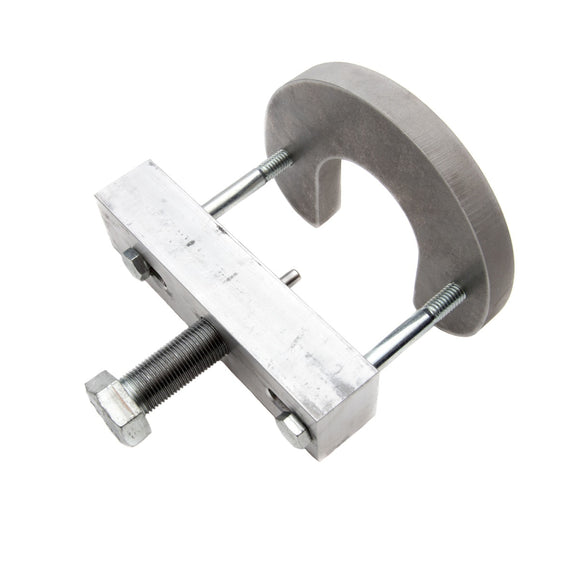

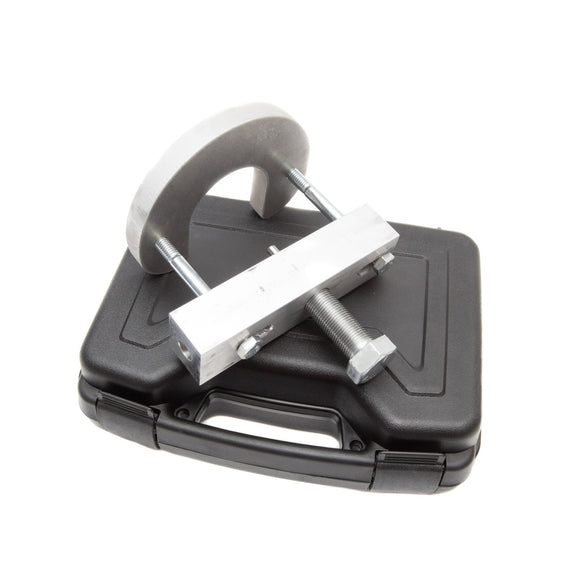

VMP Pulley Removal & Installation tool with U-plate for '03-04 Cobra, comes in a hardsided foam-lined case.
03-04 cobra version includes a U-plate to remove the large factory 3.55" pulley, the U-plate is required for any pulley larger than 3.15" as the Clamshell version for GT500 & Roush will not handle a pulley larger than 3.15".
Our tool utilizes fine thread bolts, bearings, and a supplied grease pack which makes using our tool a breeze. Less expensive tools that use course thread bolts and no bearing can make a pulley removal and installation 10 times harder, our tool avoids these headaches due to it's proper design.
- Easy to use - removes and installs pulleys
- Heavy duty construction for multiple use
- Packaged in a foam-lined hard case
- Provides damage-free removal
- Includes U-shaped plate for removing 3.55" stock 2003-2004 Cobra pulleys
- Also works with Shelbys, Lightnings, Roushcharged F-150s, Roushcharged Mustangs (09+ M90 with press fit pulley or P51 TVS)
- Includes all necessary installation hardware and instructions
Easy to use, the VMP Ultimate Pulley Removal & Installation tool will remove and install factory press-fit pulleys while the supercharger is still installed on the car. The VMP tool includes fine thread bolts, bearing (crucial to an easy installation), and a supplied grease pack to make using the tool a breeze. Avoid the headaches of less expensive tools that use course thread bolts and no bearing that make a pulley removal and installation 10 times harder.
Want to remove 3" or smaller pulleys (stock or aftermarket) without damage? Check out the optional VMP Clam-shell that grabs the pulley by the ribs and applies equal pulling force all the way around.
Parts List: Qty: Usage:
| U-plate |
1 |
5/8" thick Aluminum with 3/8" holes |
|
1/2-13 bolts x 3 |
2 |
Holds clamshell together |
|
3/8-16 bolts x 4 |
2 |
Holds clamshell to square bar |
|
3/8 washers |
2 |
For use on long bolts in bar |
|
Square bar |
1 |
Used for pulley removal only |
|
3/4-16 bolt with nub |
1 |
Used for removal ONLY |
|
5/8-18 bolt with tapped hole |
1 |
Used for installation ONLY |
|
M8 x 40 full thread screw |
1 |
Used for installation of pulley |
|
Large 5/8 D-3 bearing |
1 |
Used for installation of pulley |
|
Small washers |
1 |
Used for removal of pulley |
|
5/8-18 nut |
1 |
Used for installation of pulley |
|
Grease Packet |
1 |
For big bolt threads, nut, & washer |
