VMP-SUT012

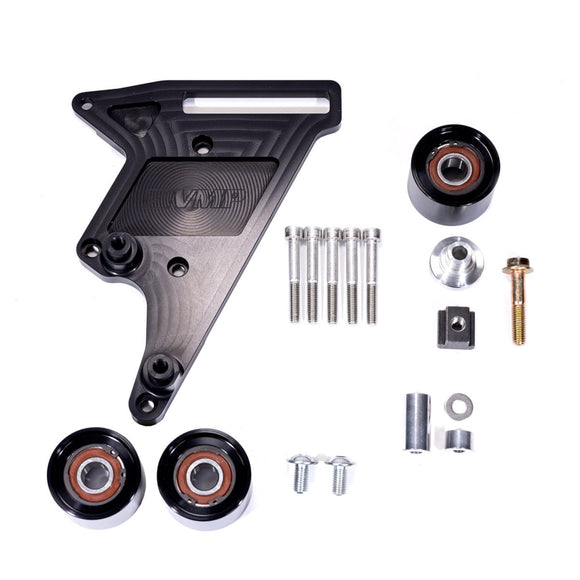

VMP BOMBER BRACKET 8/10-RIB FEAD SYSTEM

The VMP Bomber Bracket improves belt-wrap on blown-down style supercharger systems such as the VMP Gen3R and Roush 2.3 L supercharger kits. This helps your supercharged 11-17 Mustang/F150 avoid belt slip even with smaller pulleys. This bracket may be installed in under 2 hours, in place of the Roush upper FEAD bracket or VMP no-grind FEAD bracket. The Bomber Bracket has a sliding auxiliary idler that allows you to add as much or as little tension on the belt as you want, regardless of the supercharger pulley size.

Key Features:

• 11-17 Roush and VMP Supercharger applications

• Compatible with VMP no-grind and Roush grind style FEAD system

• Completely replaces Roush upper FEAD bracket (RPP-1314-8B653U-AA) and VMP Odin style no-grind "boomerang" FEAD bracket.

• Compatible with original Roush "spider bracket" and tensioner with built-in idler (VMP-50LSPIDER) or VMP Odin style tensioner (VMP-SUT009).

• Black anodize

• 6 rib version (61mm idlers) VMP-SUT010

• 8/10 rib version (58mm idlers) VMP-SUT012*

• Adjustable locations to assist in more or less tension

• Installs in approximately 1-2 hours.

*works with new VMP 20% OD 10-rib kit that uses VMP-918078 balancer, not compatible with legacy 10-rib kits sold 2020 and earlier.

Compatible with:
VMP-SUT022 AC Bypass bracket 10-rib
