SHS Coilovers for Volkswagen and Audi

HPA-2XX

Developed in conjunction with the engineers at KW Automotive, the team at HPA Motorsports has designed an out of the box solution that is preset to perform...

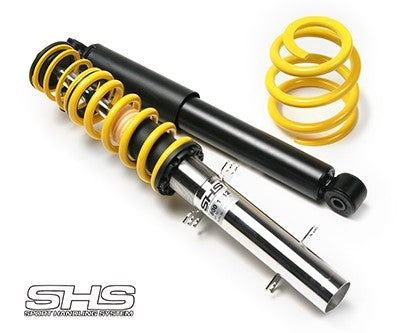

HPA’s SHS coilovers offer an unmatched balance between handling and comfort. Not to be compared to the entry level ST or KW V1 coilovers, all SHS applications are based off KW's twin tube low pressure damper design used in the KW V3. Embracing KW’s patented valve technology, the high-speed dampening characteristics remain similar to OEM offering a near factory comfort level, while the low speed dampening power is increased to eliminate pitch and roll associated with heavy braking or corner entry. Each application features linear race springs on the front and progressive barrel spring on the rear.

SHS is the PERFECT suspension solution for the enthusiast looking to gain better control at corner entry on high-speed sprints, yet uses their car in the harsh real world environment.

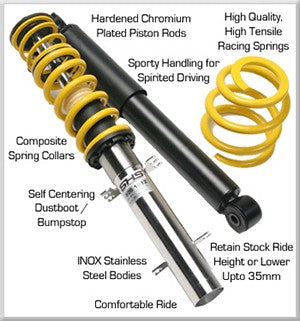

Key Features

• The stainless steel construction guarantees the height adjustability won’t be lost through commuting on salt covered winter roads. KW –INOX technology
• Self centering integrated dust boots. Keep the winter sand and debris from damaging the Piston Rod seal for long life
• Stainless steel impregnated composite spring seats offer easy ride height adjustment all season long. No binding conventionally found with aluminium seats
• Race Springs are EPS powder coated and Zinc phosphated for long life
• Springs are made from chrome-silicon steel
• 54SiCR6 offering higher carry capacity with less material than standard steel wound springs
• Height adjustable on all 4 corners
• Spanner Wrench included for adjusting ride height
• 2 Year Manufacturers Warranty through KW Automotive

Models

APPLICATION - FRONT RANGE / REAR RANGE

Part # HPA-201 - SHS Coilovers

• Audi TT Quattro (Mk1) - 0-35mm / 0-35mm
• VW R32 (Mk4) - 0-35mm / 0-35mm

Part # HPA-204 - SHS Coilovers

• Audi A3 (2 door/2WD) - 25-55mm / 30-55mm
• Audi A3 (4 door/AWD) - 25-55mm / 35-60mm
• Audi TT Coupe Quattro (Mk2) - 25-55mm / 35-60mm
• Audi TT Roadster Quattro (Mk2) - 25-55mm / 35-60mm
• VW Jetta (Mk5) - 25-55mm / 35-60mm
• VW Golf / GTI (Mk5) - 25-55mm / 30-55mm
• VW R32 (Mk5) 4motion - 25-55mm / 35-60mm
• VW Golf R (Mk6) 4motion - 25-55mm / 35-60mm
• VW Passat CC (2WD) - 10-50mm / 15-45mm

Part # HPA-205 - SHS Coilovers

• Audi TT-S Coupe Quattro (8J) - 10-35mm / 5-30mm
• Audi TT-S Roadster Quattro (8J) - 10-35mm / 5-30mm
• Audi TT-RS Coupe Quattro (8J) - 10-35mm / 5-30mm
• Audi TT-RS Roadster Quattro (8J) - 10-35mm / 5-30mm
• VW Golf (Mk6) - 35-65mm / 35-65mm
• VW Golf TDI (MK6) - 35-65mm / 35-65mm
• VW GTI (Mk6) - 35-65mm / 35-65mm

Part # HPA-207 - SHS Coilovers

• VW GTI (Mk6) **Stage 2**
• Stiffer Front Springs - 35-65mm / 35-65mm

Part # HPA-208 - SHS Coilovers

• VW Passat Wagon R36 4motion - 10-50mm / 15-45mm

Part # HPA-209 - SHS Coilovers

• VW Golf 1.4L Engine (Mk6) - 35-65mm / 35-65mm

Part # HPA-210 - SHS Coilovers

• VW Scirocco (Mk6) - 10-45mm / 10-45mm

Part # HPA-211 - SHS Coilovers

• VW Jetta GLI (Mk6) - 35-55mm / 35-55mm

Part # HPA-212 - SHS Coilovers

• VW GTI / Golf R (Mk7) NON-DCC - 10-45mm / 20-50mm
• Audi A3 / S3 (8V) NON-DCC - 10-45mm / 20-50mm
  (DCC cars require a EDC delete)


Part # HPA-213 - SHS Coilovers

• VW Tiguan 2WD/4WD - 35-65mm / 35-65mm
