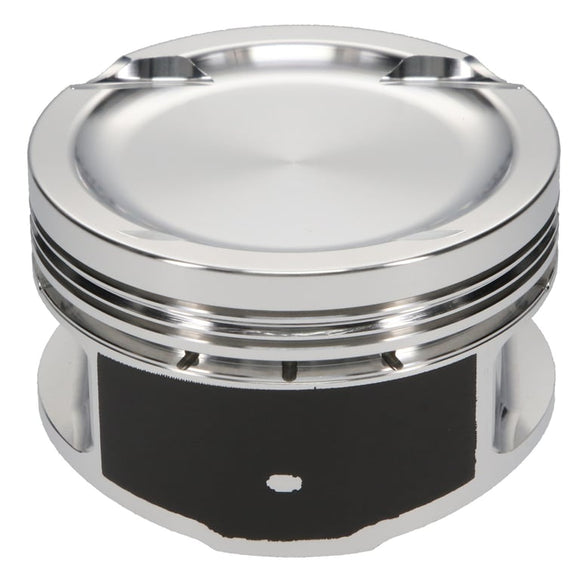

JE Pistons Volkswagen 2.0T TSI 83.5mm Bore 9.6:1 CR -7.1cc Dish Piston (Set of 4)

JE Pistons Volkswagen 2.0T TSI 83.5mm Bore 9.6:1 CR -7.1cc Dish Piston (Set of 4)

$1,059.88 CAD

JE Pistons SKU: jep353848

Earn Points on this purchase. Learn more
Description Availability

353848

JE, VW, 2.0T TSI - 13-15 - 22mm Pin, 3.287 in. Bore, 9.60:1, Inverted Dome/Dish, 4 Cyl. Piston Kit
JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.
Notice:  Product Images may differ from the actual product.  Image may be a representation of this item.
Bore Diameter 83.50
Compression Height 1.165
Piston Head Type Dish
Piston Volume -8.4
Cylinder Head 2.0 TSI
Piston Pin Outside Diameter 0.866
Piston Pin Length 2.250
Piston Pin Material 5115
Ringset Included Yes
Top Compression Ring Thickness 0.04
Second Compression Ring Thickness 0.048
Oil Ring Thickness 0.111
Piston Material 2618
Forging Type Round
Pin Wall Thickness 0.150
Product Market Sport Compact
Product Types Engine Piston Set
Prop 65 Yes/No Yes



Make Engine
VOLKSWAGEN 2.0T TSI 2013-2015 22MM PIN
