N54 Aluminum Turbo Outlet

VTT-ALUM-OUTLET-1

Product Description

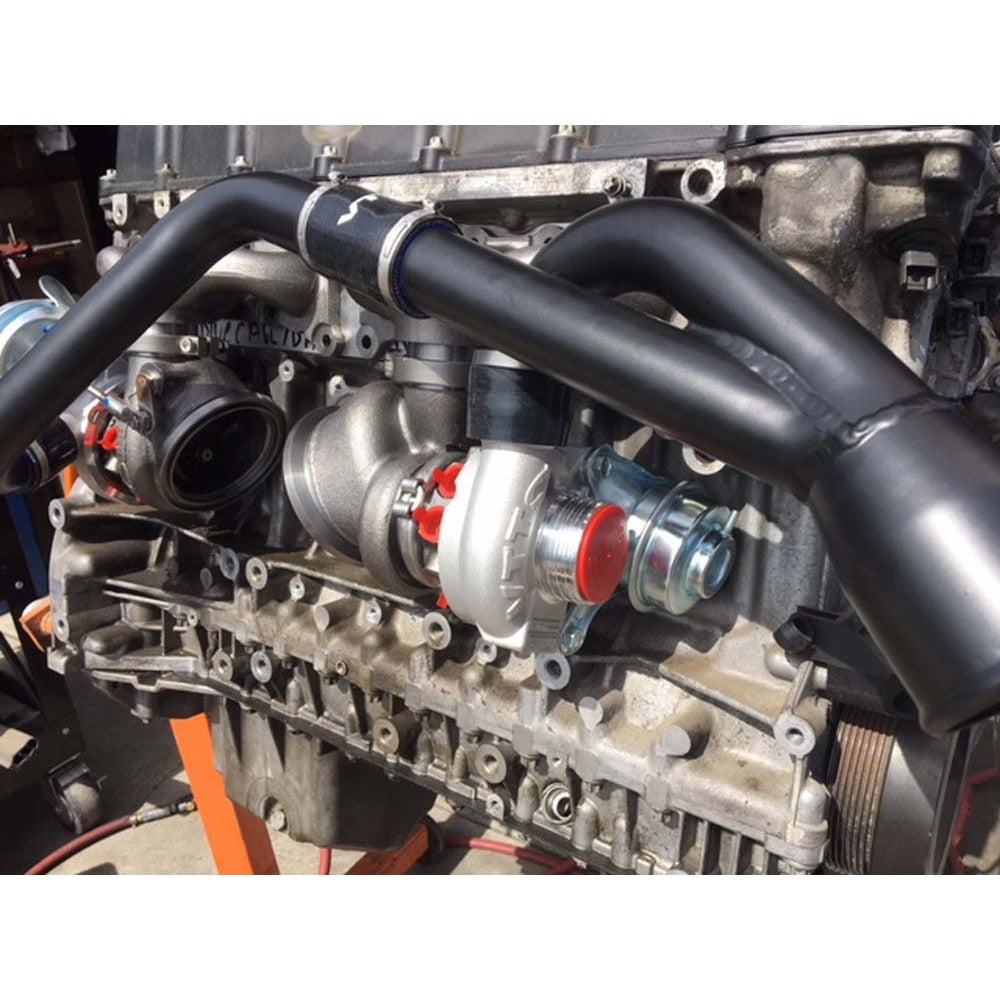

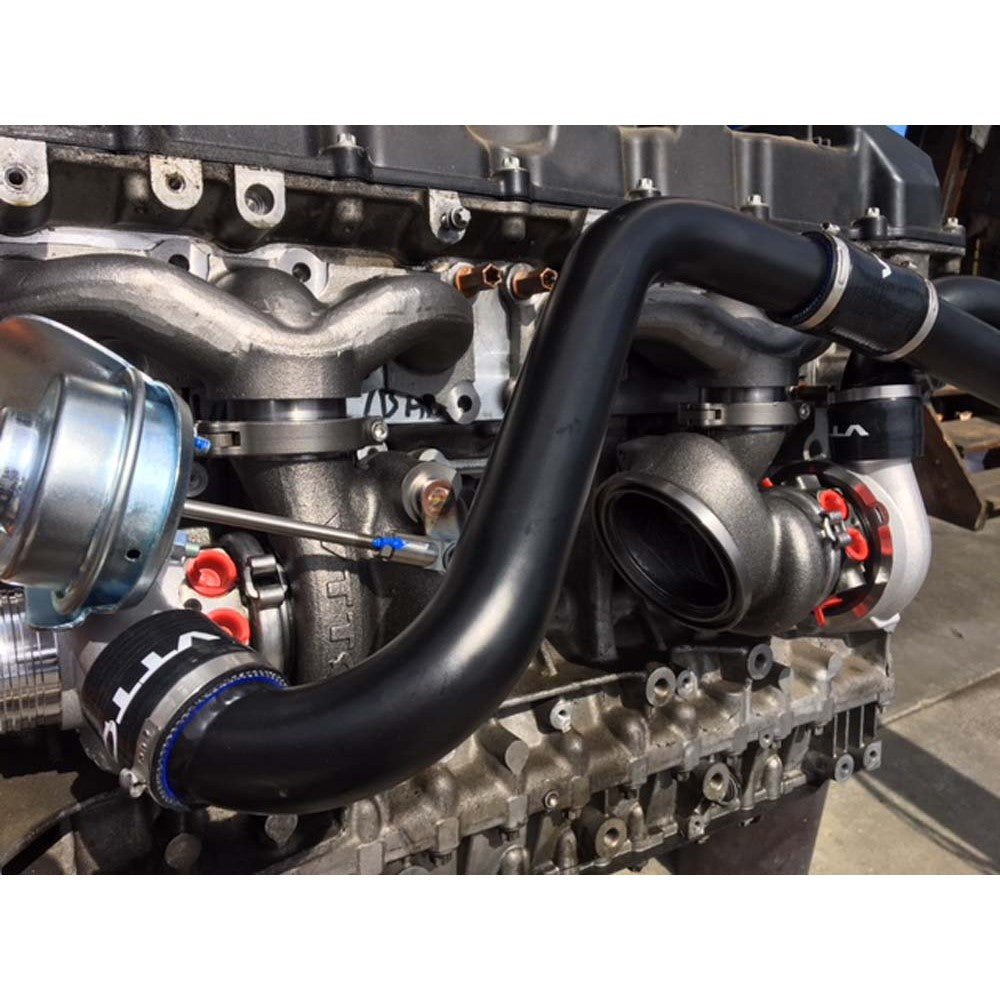

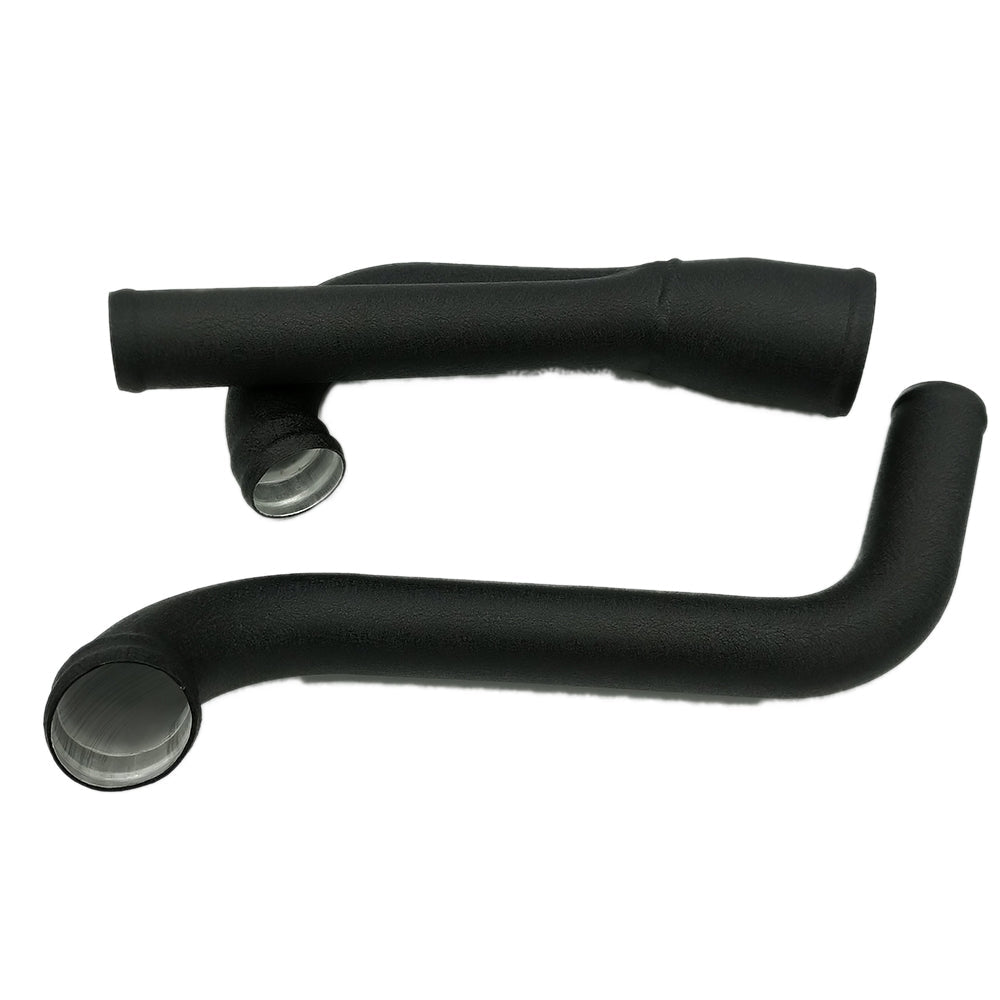

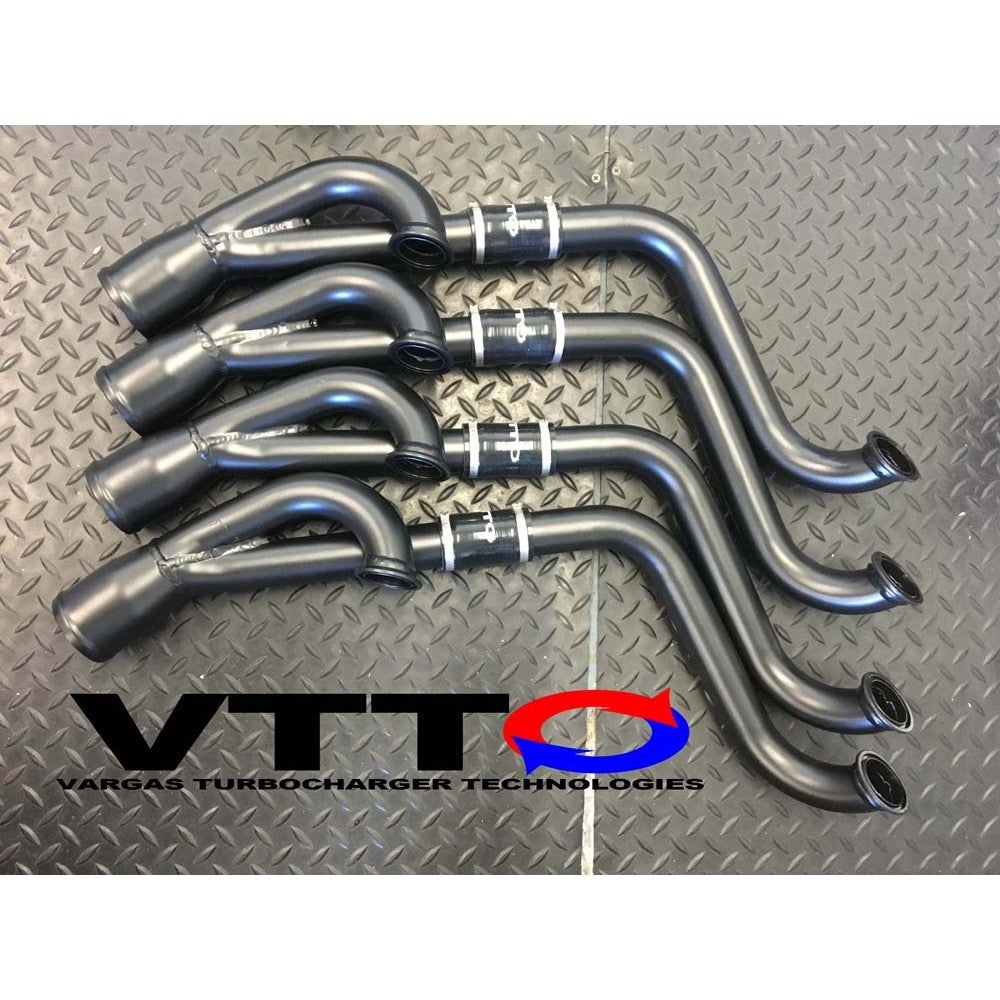

Looking to get the most efficient turbocharger operation out of your N54 powered BMW? The best way to do this is to remove all restrictions from the inlet, and charge tract. The factory charge pipe has a very small 1″ opening and a poorly designed Y section that couples the two banks into one before entering the intercooler. This VTT N54 Aluminum outlet gets rid of those restrictions and provides a full 1.5″ from the turbochargers to a smooth Y transition into a 2.5″ outlet to fit most aftermarket intercoolers. Do not be fooled by companies trying to sell you oversized 2″ charge pipes, these are not going to pick up any power, and will kill velocity. The smallest diameter you can run while still providing adequate flow is always best for flow velocity and reducing time to TQ.

This outlet is powder-coated black for a durable finish and fits all N54 powered BMW’s including 335,535,135, Z4,1M, X5, X6, RHD

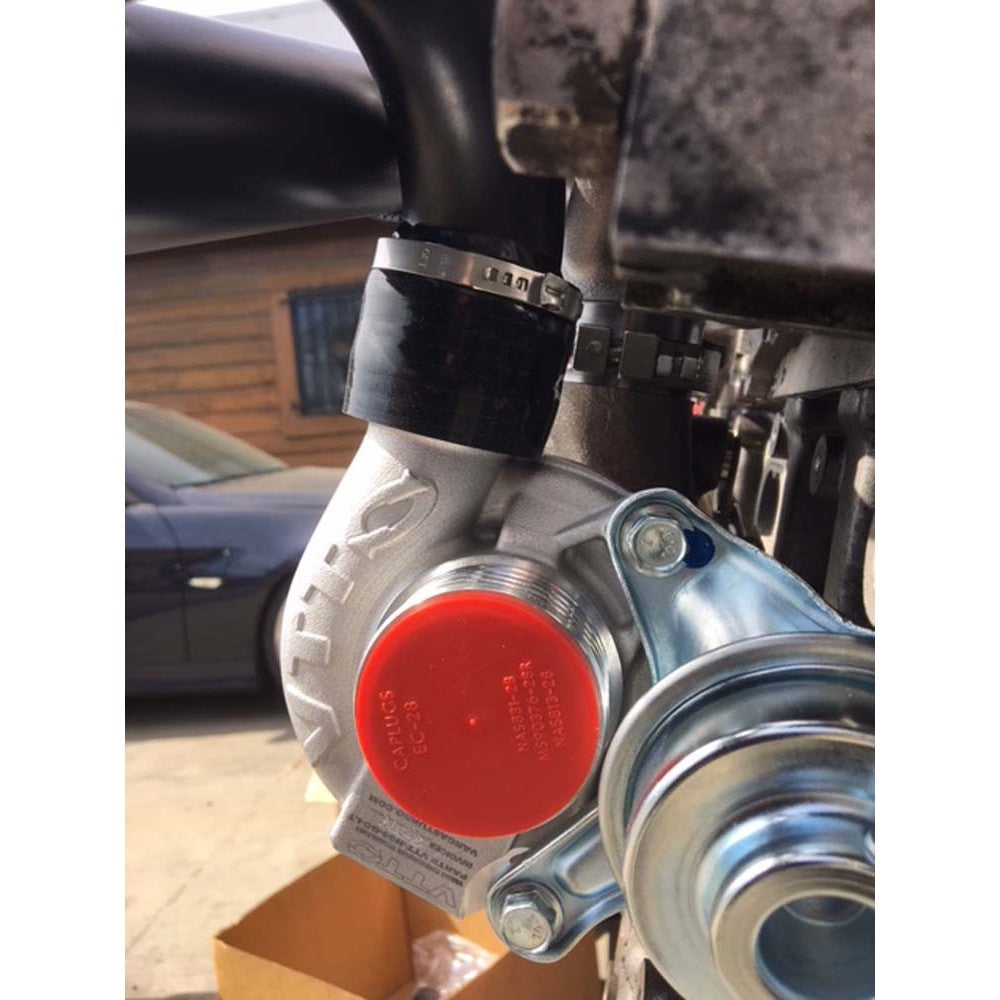

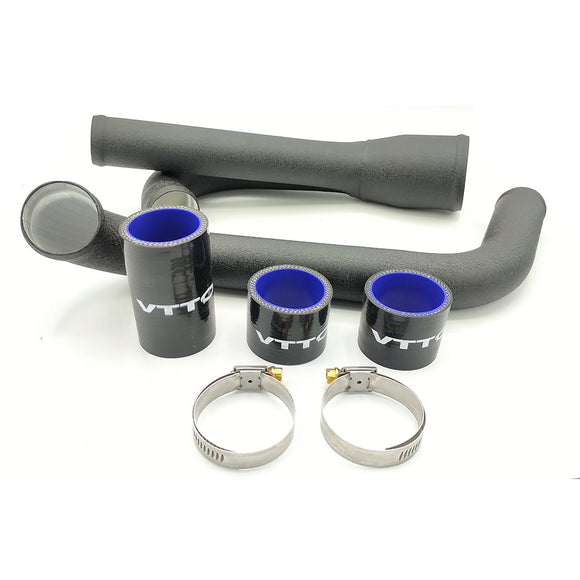

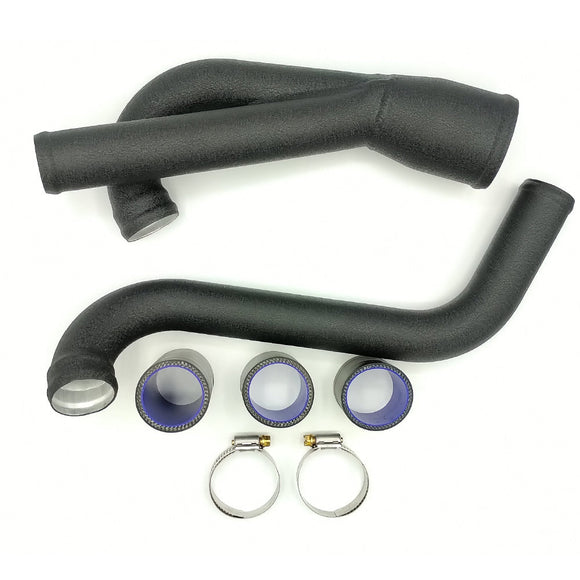

The outlet is available in V-band connection for Stock, Stage 1, Stage 2, Stage 2+, any aftermarket turbo that uses the stock connection (RB, Pure, TTE, ETC.  It is also available in Hose barb connection for our GC, GC Lite line up., as well as with 1.5″-2″ silicone adapters to fit MMP turbos.

PLEASE NOTE: WE HAVE NOT TEST FIT THE MMP OPTION ON ANY VEHICLE WITH MMP TURBOS, THIS IS SIMPLY A 1.5-20″ ADAPTER THAT WILL FIT THE OUTLET OF THE MMP TURBO. IT IS VERY LIKELY YOU WILL HAVE TO MAKE ADJUSTMENTS TO  GET THESE TO FIT, WE DO NOT CLAIM THESE ARE DIRECT FIT FOR MMP TURBOS. ORDER, AND INSTALL AT YOUR OWN RISK! IF THE OUTLET IS ATTEMPTED TO BE INSTALLED, AND YOU CANNOT MAKE IT FIT, IT CANNOT BE RETURNED, IT CAN ONLY BE RETURNED IF IT IS IN UNINSTALLED CONDITION.

Please specify model when ordering

Note: The outlet is terminated with a 2.5″ bead rolled connection, simply use your existing intercooler inlet hose to fit the new outlet
