VTT BMW F9X M5/ M8 “GC” / “GC+”Turbocharger Upgrade

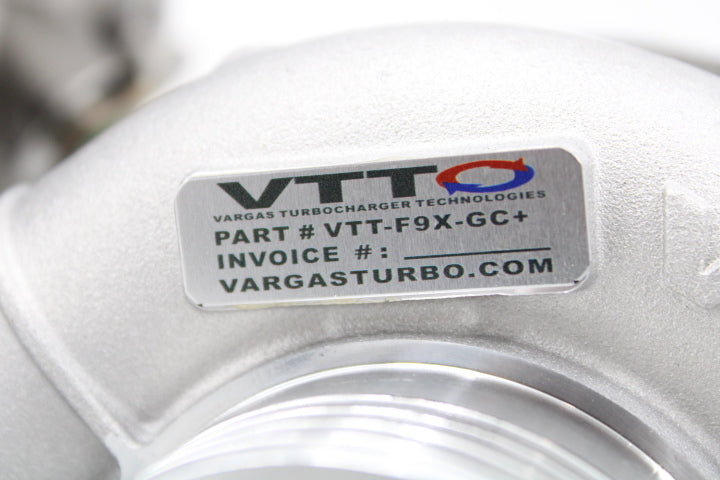

VTT-F90-GC

Description

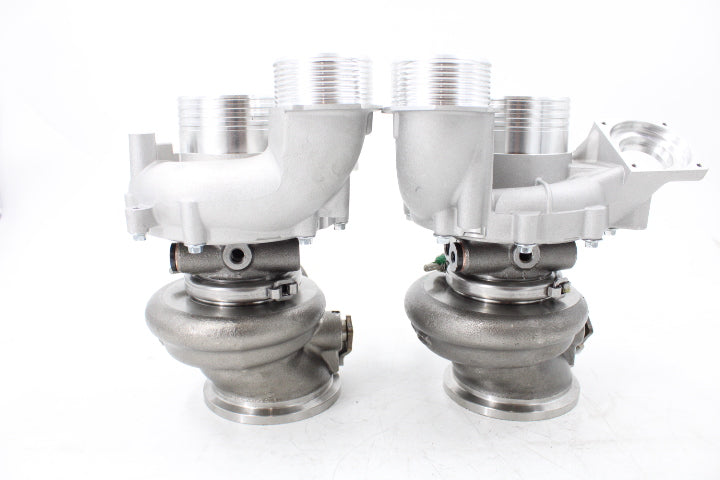

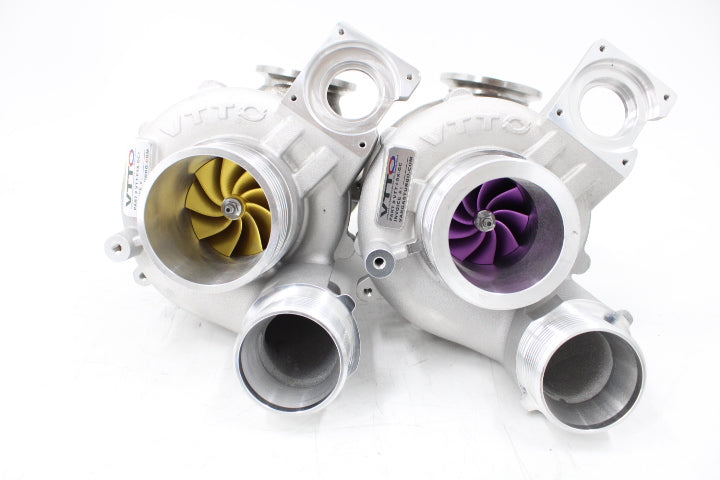

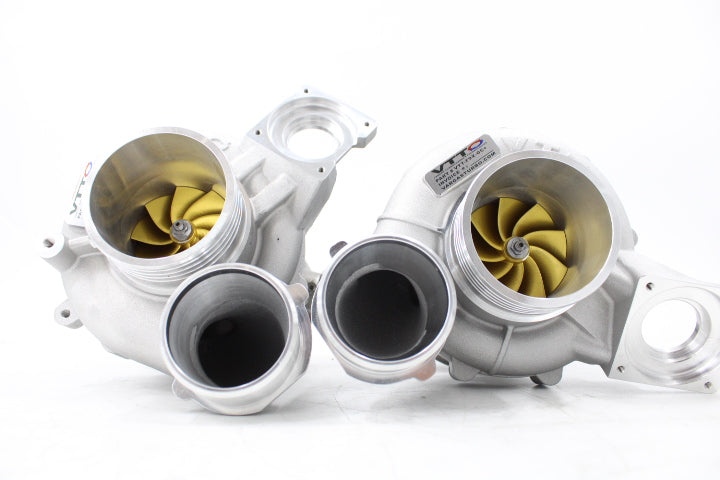

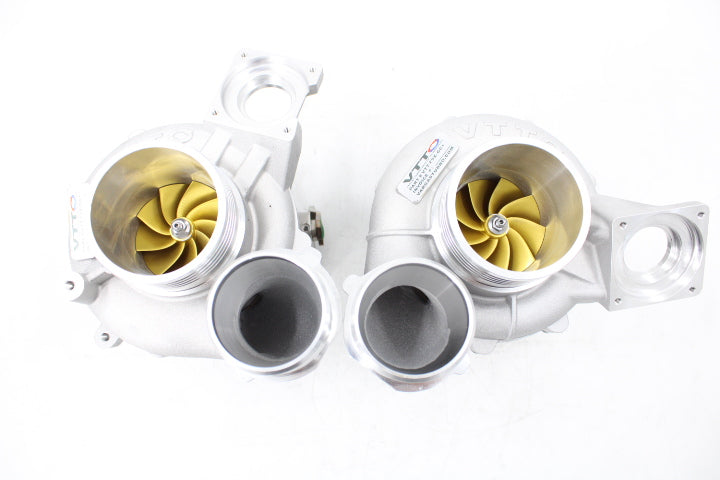

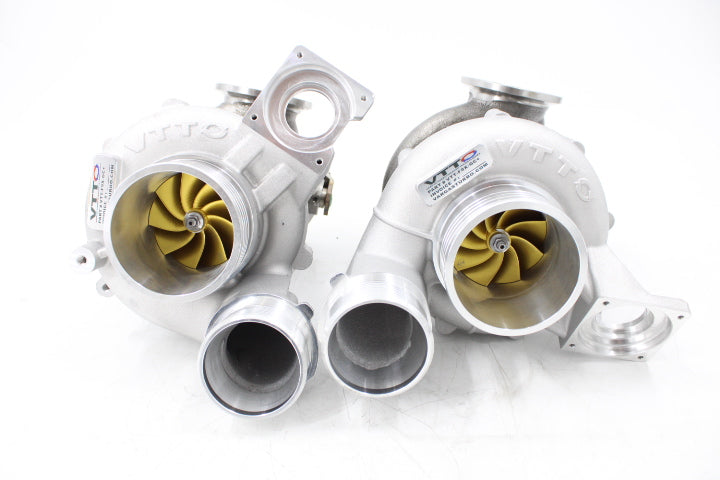

VTT “GC” and “GC+” Turbocharger Upgrade – BMW F90 M5 & F91-93 M8
GC Supported Power Level: Stock – 1000WHP
GC+ Supported Power Level: Stock – 1200+ WHP

Unleash Maximum Performance

Ready to take your BMW F90 M5 or F91-93 M8 to the next level? Skip the core charges, long lead times, and restrictive factory housings—VTT has you covered with our 100% newly cast “GC” and “GC+” turbocharger upgrades.

We’ve preserved the best elements of the factory BMW turbos while eliminating key weaknesses like the small inlet area, inefficient oiling, and outdated thrust bearing design. Then we went further—implementing proprietary VTT enhancements and casting all components to OE-quality standards.

The result? A true drop-in turbocharger solution capable of producing 900–1000WHP with the GC, and 1200+ WHP with the GC+, all while maintaining near-stock spool and full compatibility with OEM oil, water, downpipe, and charge pipe connections.

Key Design Features

•  GC is sized after the Garrett G25-660, supporting up to 1000WHP

•  GC+ is sized after the Garrett G30-900, supporting 1200+ WHP

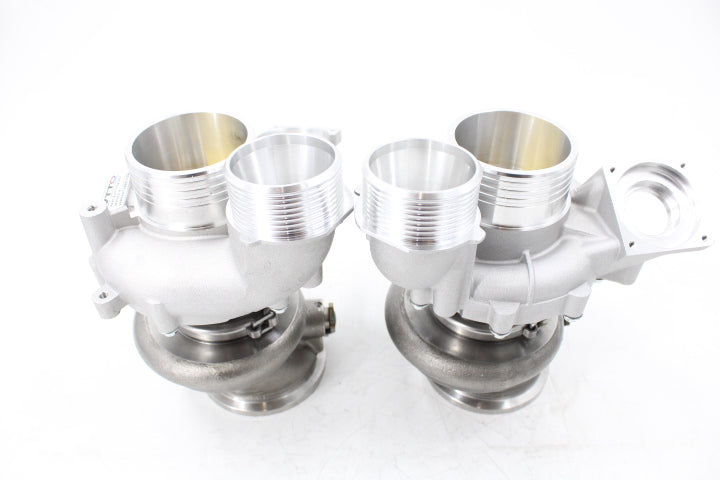

•  All-New Castings – Removes factory restrictions for maximum airflow (no oversized wheels crammed into stock housings!)

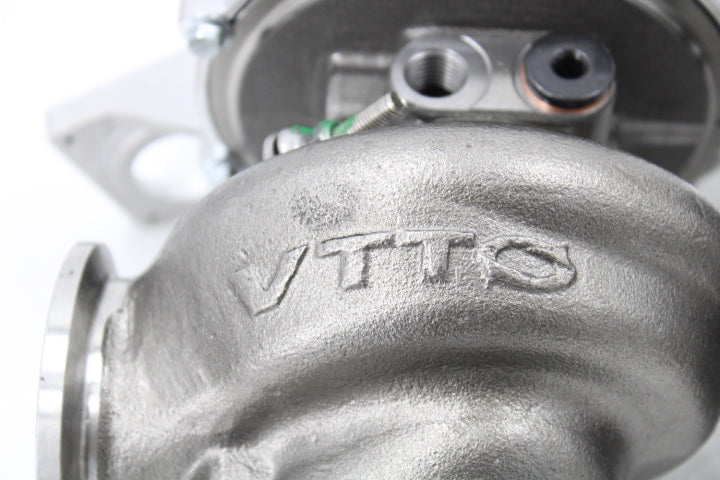

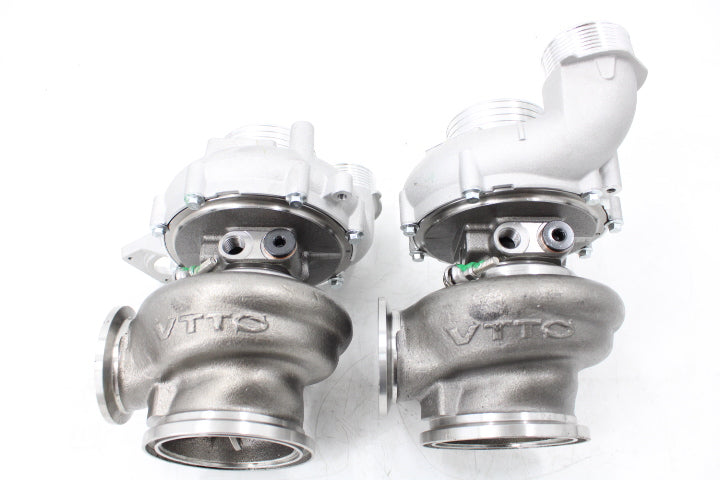

•  Twin-Scroll 310 Stainless Steel Turbine Housing – Superior heat and corrosion resistance

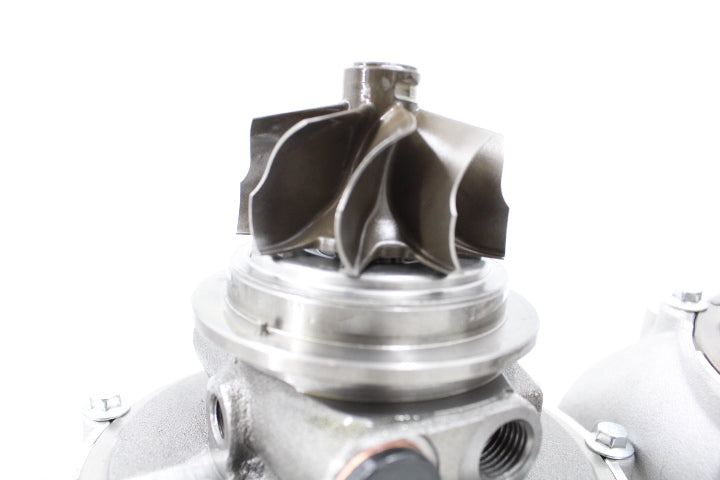

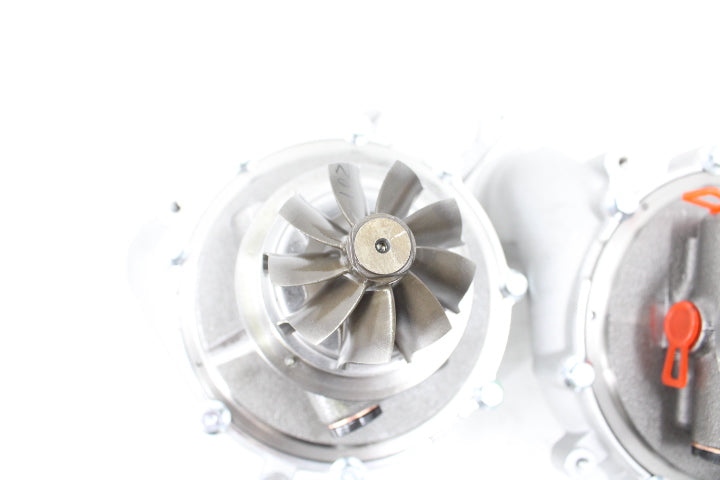

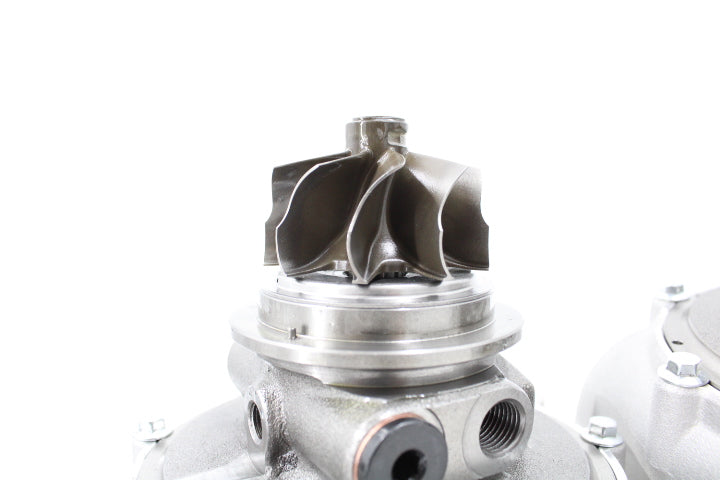

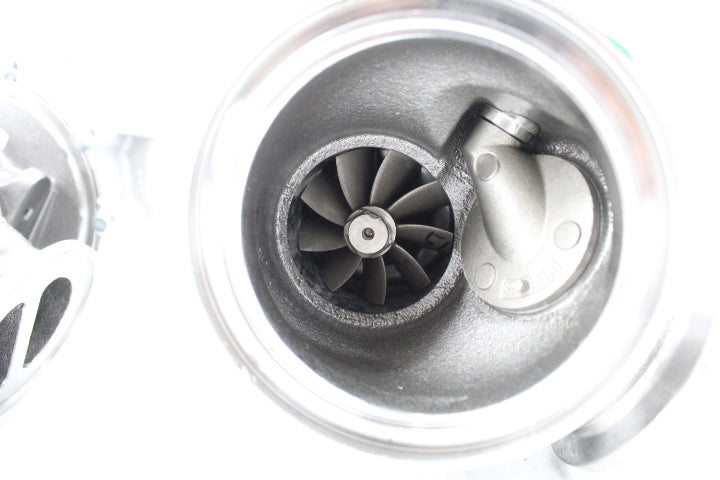

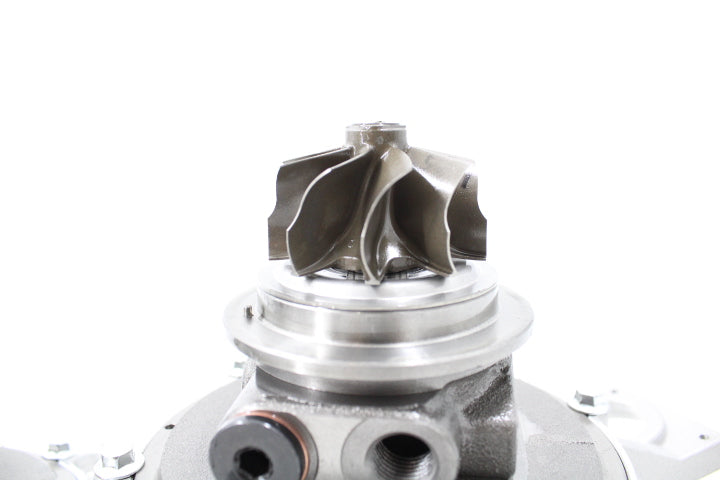

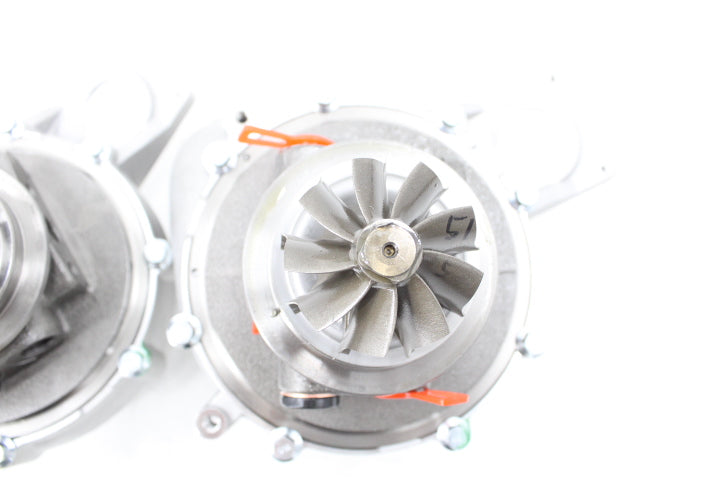

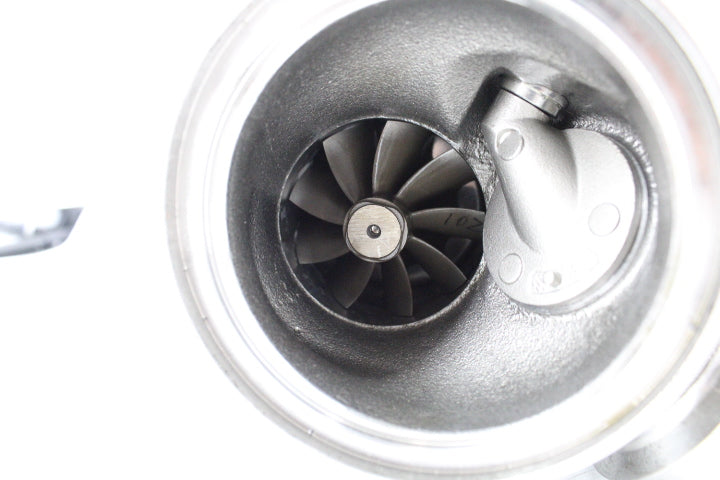

•  9-Blade Mar-M 246 Superalloy Turbine Wheel – Advanced aero for increased flow and quick spool

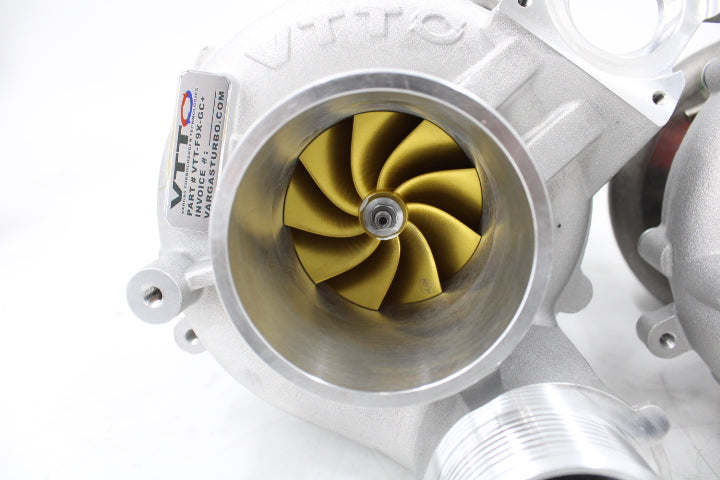

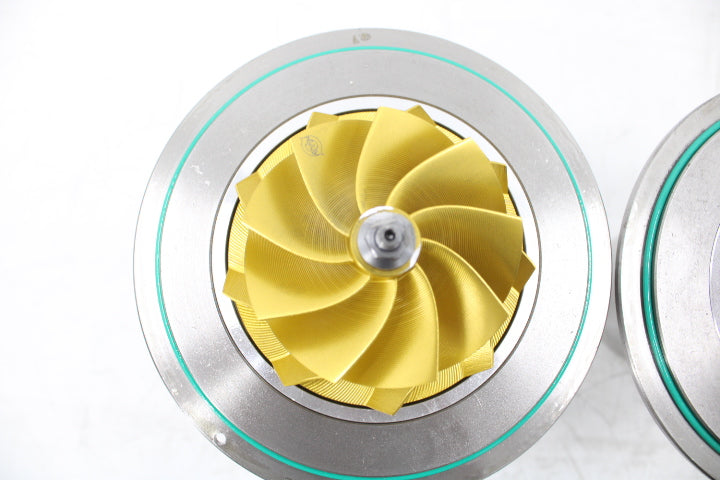

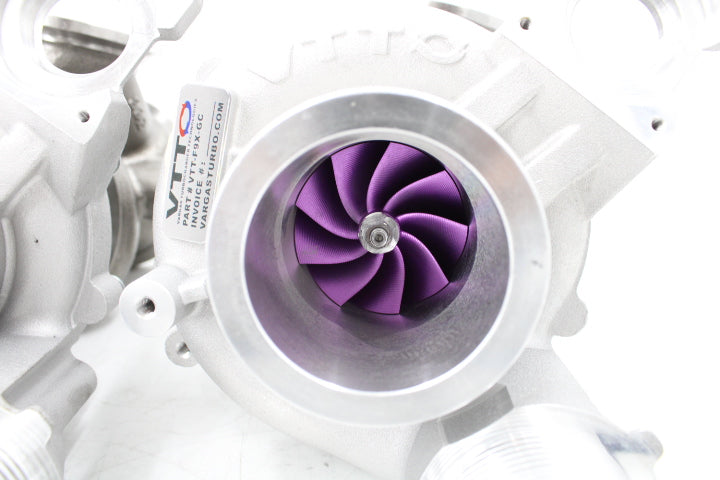

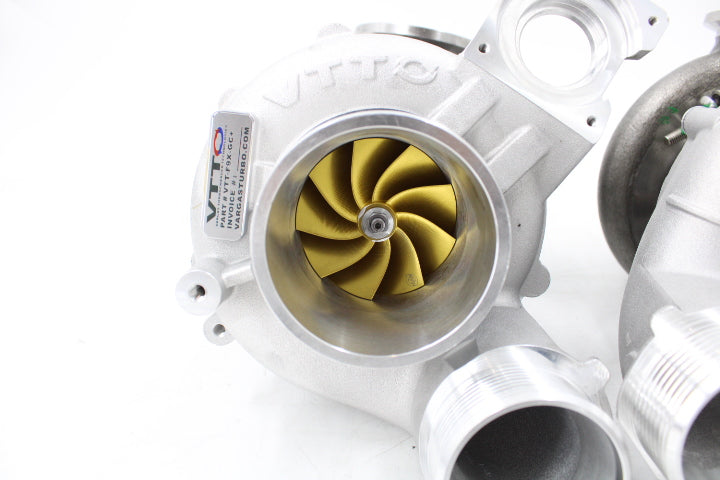

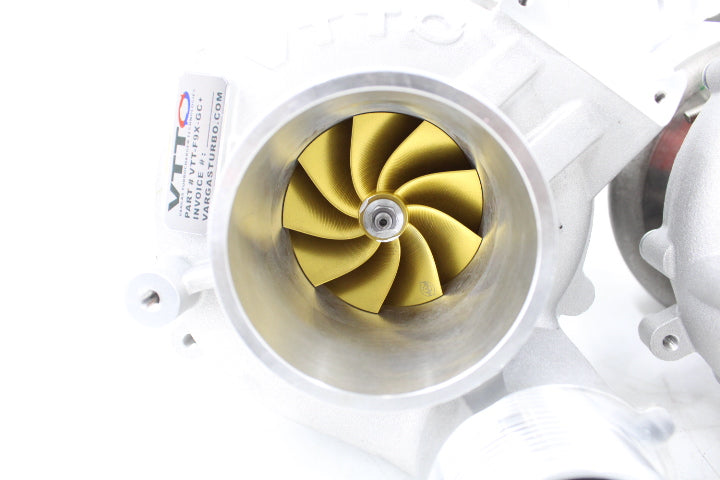

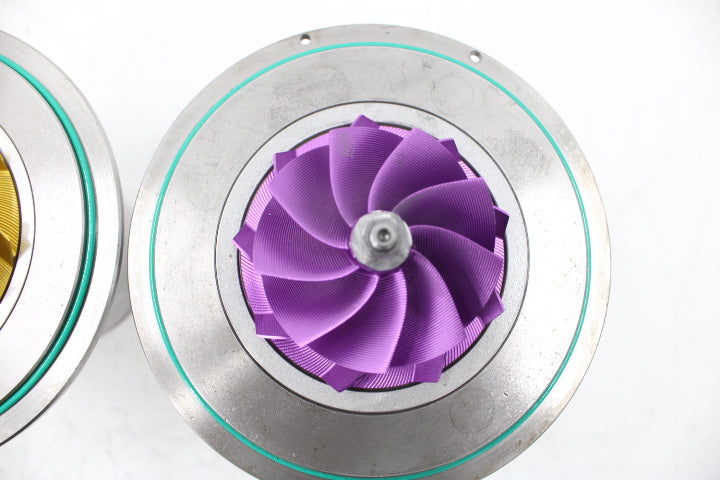

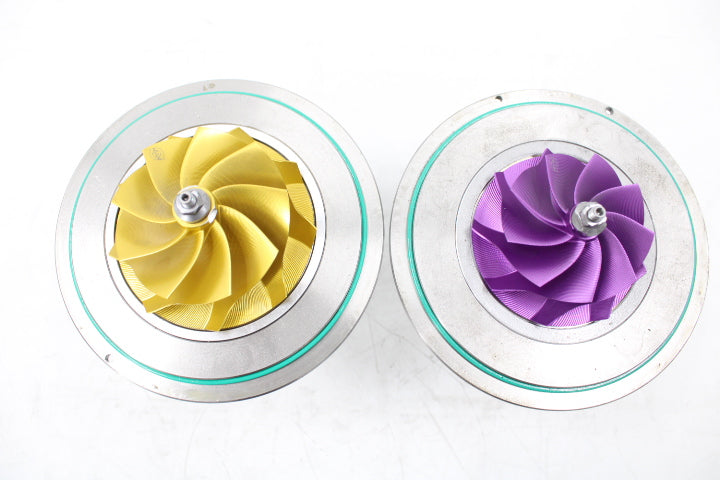

•  9-Blade Point-Milled Compressor Wheel – Maximum airflow with minimal surge

•  Direct Factory Fitment – Fully compatible with OEM oil, water, downpipe, and charge pipe connections

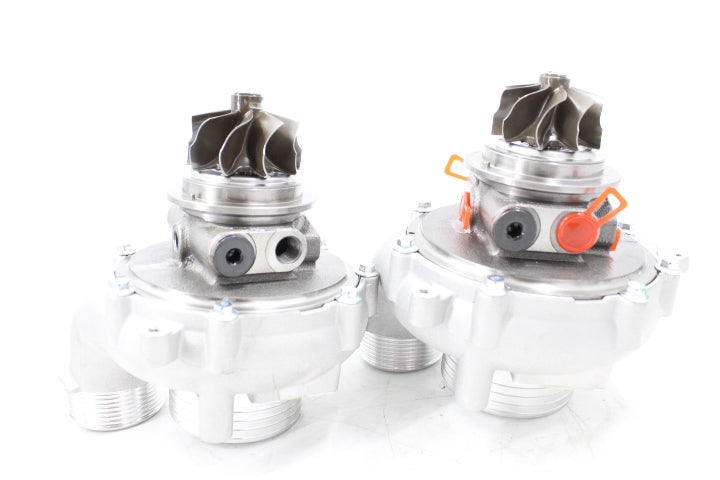

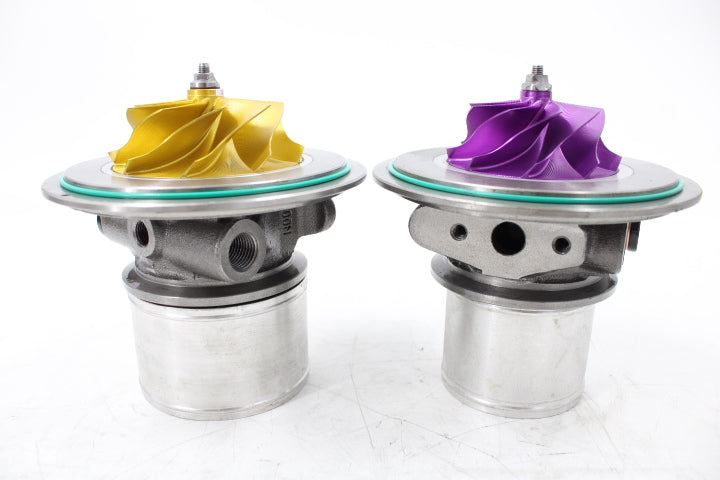

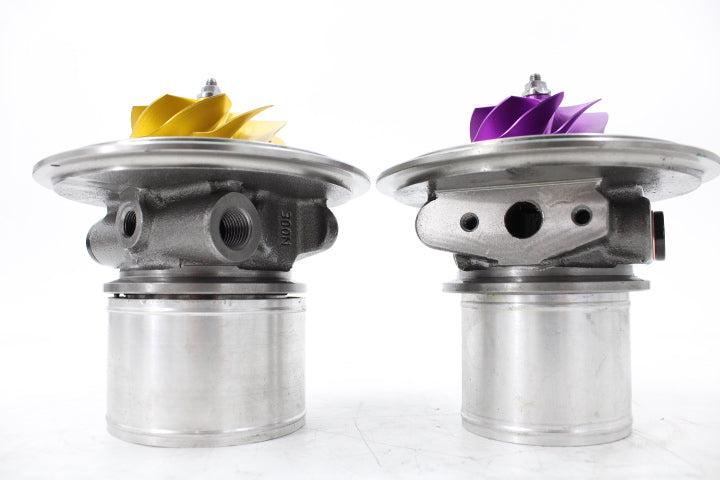

•  Upgraded Internals – Enhanced oiling and thrust bearing system for increased durability

•  No Core Charges – Keep your OEM turbos for resale or reuse

•  No Long Lead Times – Production units will be stocked for same or next-day shipping (contact us for availability)

•  12-Month Unlimited Mileage / No-Hassle Warranty – If there’s an issue, we replace it—no questions asked (Our “no hassle warranty” applies when a unit fails due to a defect in materials or workmanship. It does not apply when the product is pushed past its design limits.)

Turbocharger Kit Includes:

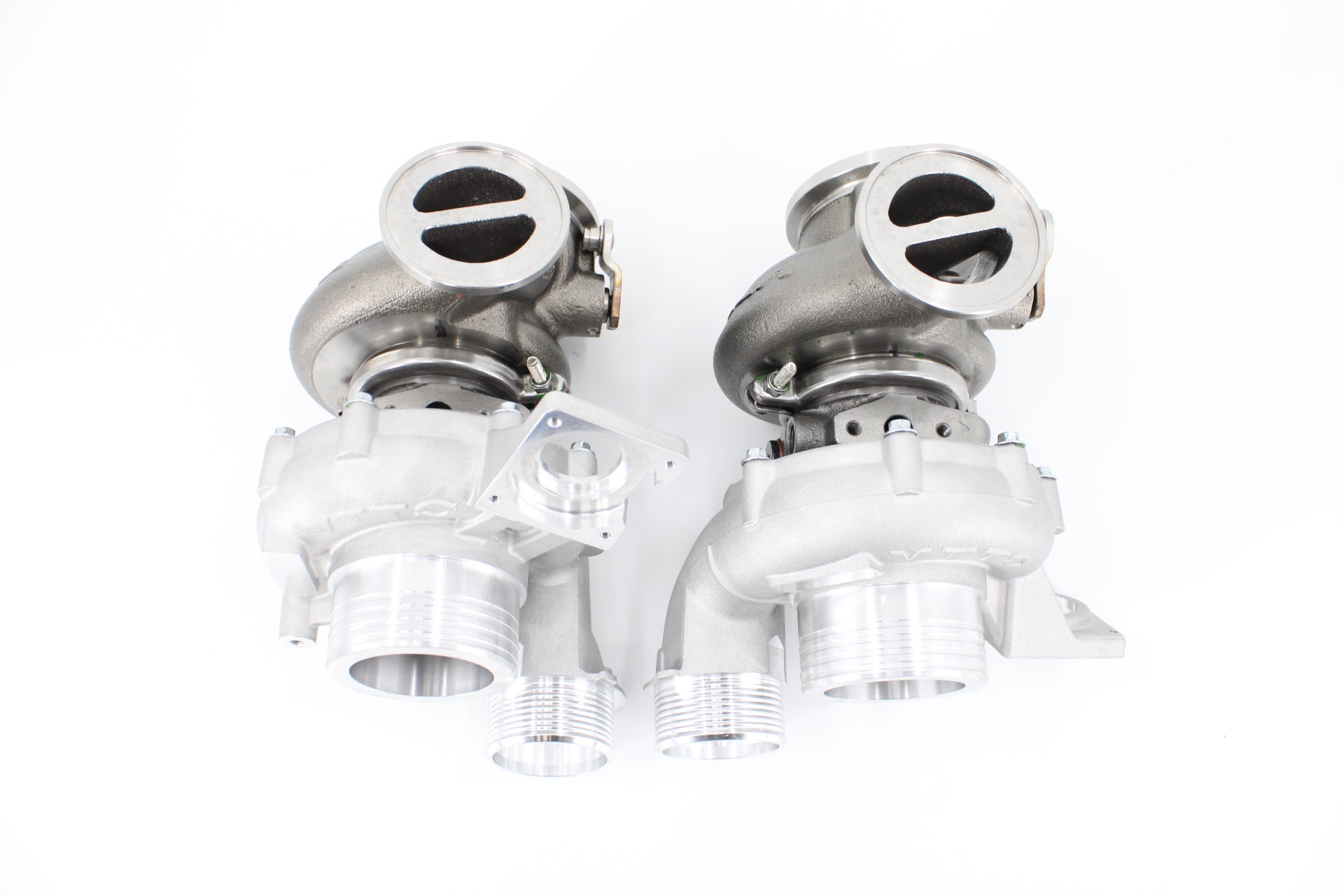

•  1 Set of VTT GC or GC+ Turbochargers

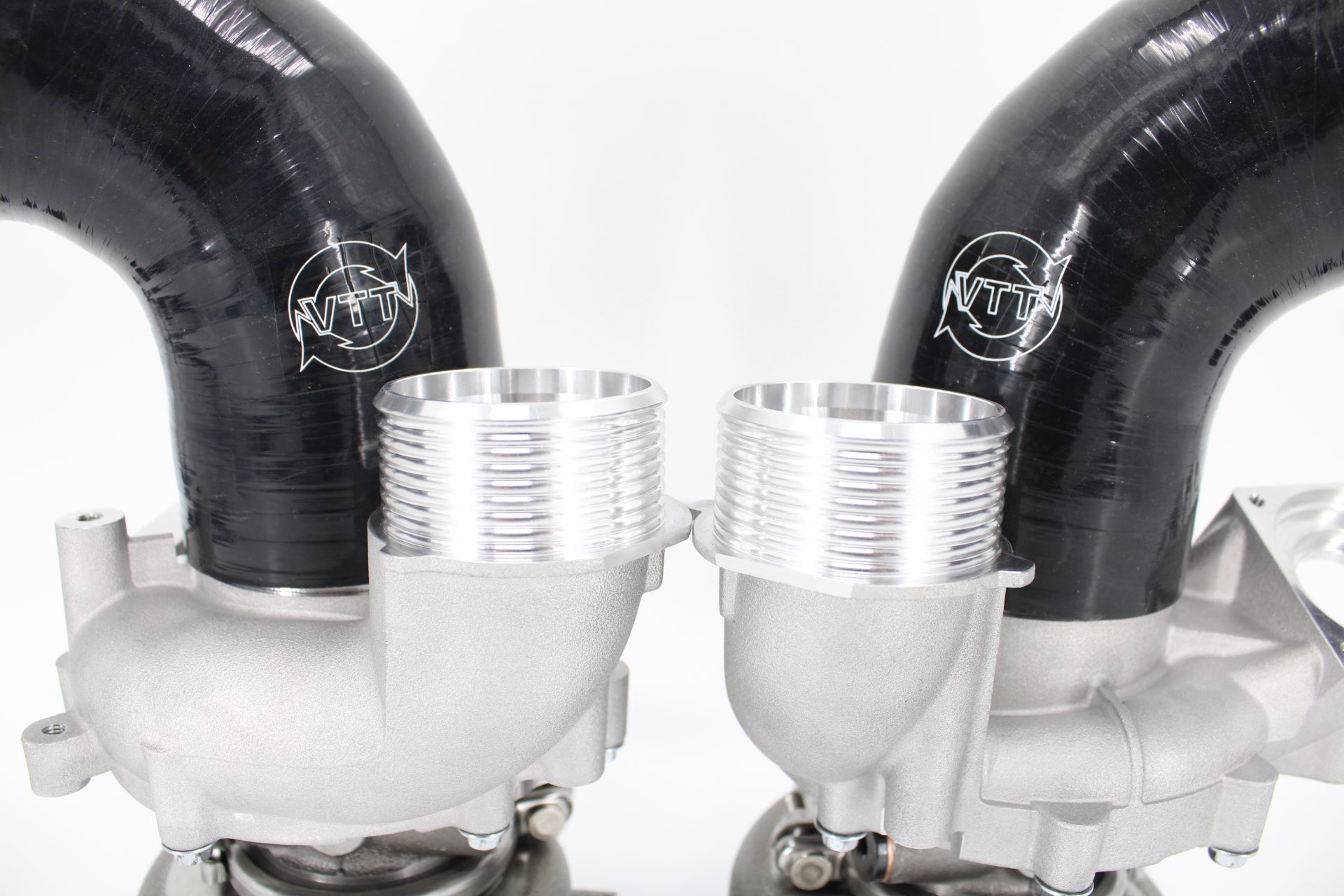

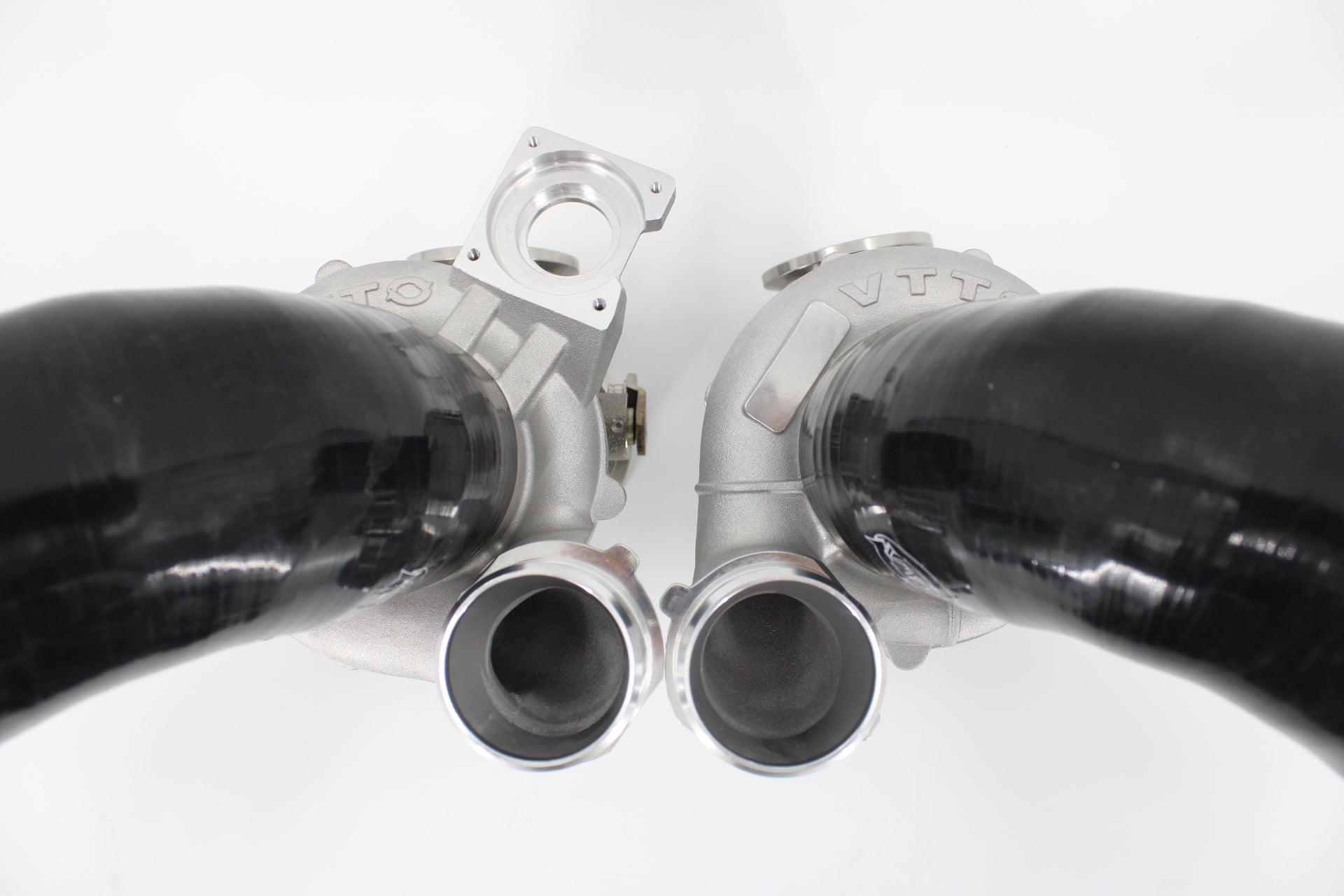

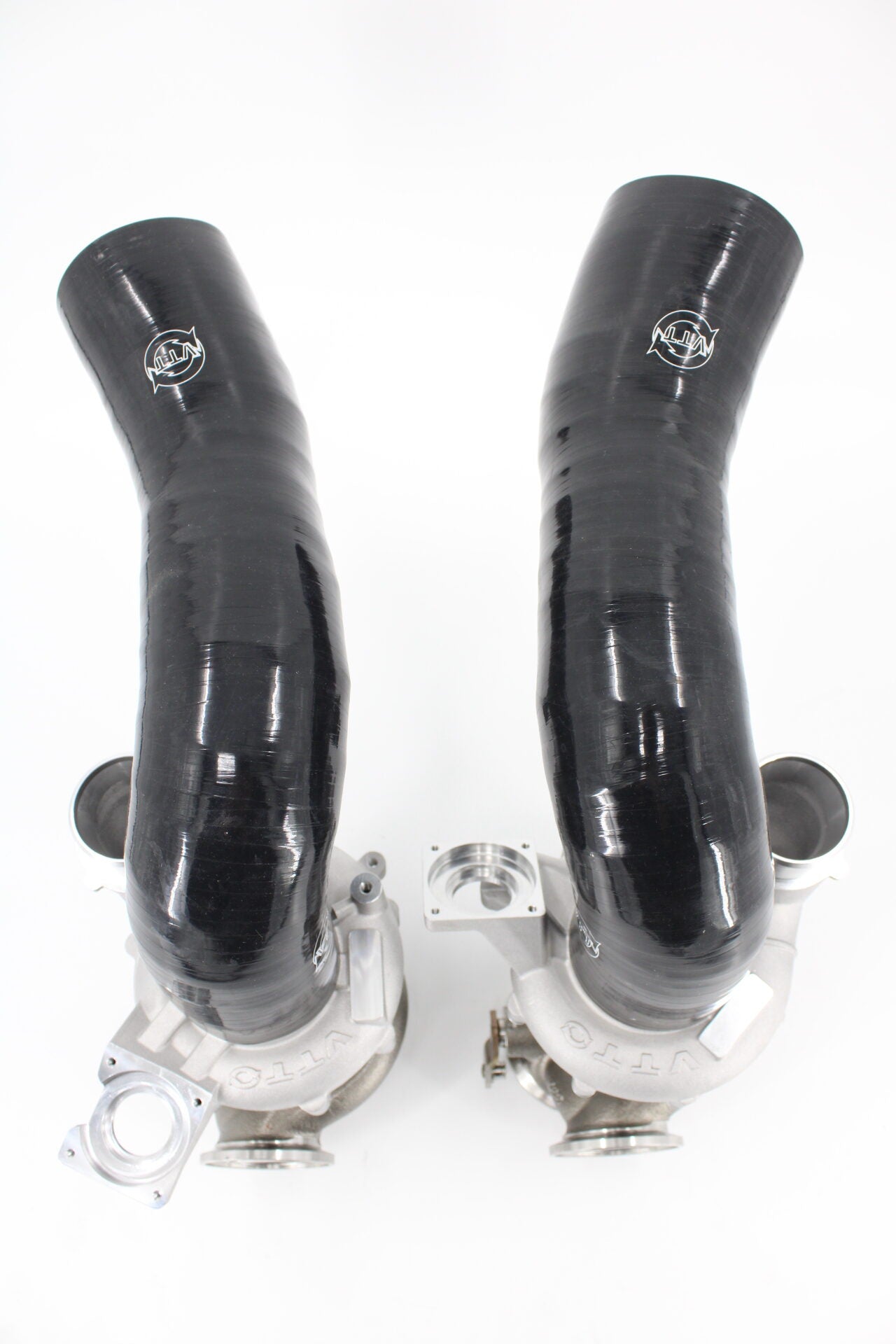

•  1 Set of VTT Custom Silicone Intake Pipes with Clip-On PCV Bungs

 Recommended Supporting Mods

To maximize the performance of your GC or GC+ turbo upgrade, we recommend:

• VTT F9X Plug and Play BOV Kit – NOT CURRENTLY AVAILABLE

• Upgraded fuel system

• High-flow intake

• Downpipe & intercooler upgrades

• Proper ECU tuning

Note: While noticeable gains are possible with stock supporting mods, full power potential requires proper tuning and hardware upgrades.

• From the factory, F9X models come with no dedicated boost venting system—relying solely on valvetronic for throttle modulation, which performs poorly under high boost and increased airflow. When upgrading to high-flow turbos and running elevated boost levels, venting pressure on throttle release becomes critical to prevent compressor surge and long-term damage.

  Our BOV kit solves this with a complete, plug-and-play solution designed specifically for the F9X platform.

  ---

   Kit Includes:

  • VTT Billet BOV Flange
    Precision-machined for a clean, leak-free fit

  • Turbosmart RacePort BOV
    High-performance valve rated for serious boost and fast response

  • BOV Controller
    Seamlessly manages venting based on throttle position and boost conditions

  • Plug-and-Play Wiring Harness
    No cutting or splicing—fully reversible installation

  ---

  Protect your upgraded turbo system and ensure smooth, surge-free operation with the VTT F9X BOV Kit.

  Boost smart. Vent right.™

Fitment:

•  BMW 5 Series (F90 M5) – All Years

•  BMW 8 Series (F91, F92, F93 M8) – All Years

 Important Note on Boost Limit:

F90 platforms have a 38 PSI boost cap. Exceeding this limit voids the warranty. Overspeeding turbos—just like over-revving an engine—leads to failure. Logs will be required for all warranty claims.

Upgrade with Confidence

The VTT GC & GC+ Turbocharger Upgrade is the ultimate drop-in solution for serious power, without sacrificing fitment or reliability. Engineered to OE standards with industry-leading innovation, this is the most capable and complete turbo upgrade for the F90/F91–93 platform.
