89.10.1XX
All Macht Schnell Competition fasteners are hardened and tempered to strength class 10.9 or 10 according to DIN/ISO standard 898. They meet the statutory requirements of all countries - including the USA.
All studs/nuts feature a black plating process for OEM appearance.
Final inspections are not restricted to random quality checks. Every single fastener is tested to ensure compliance with specifications. Studs/nuts are also offered individually and should be replaced after every race season.

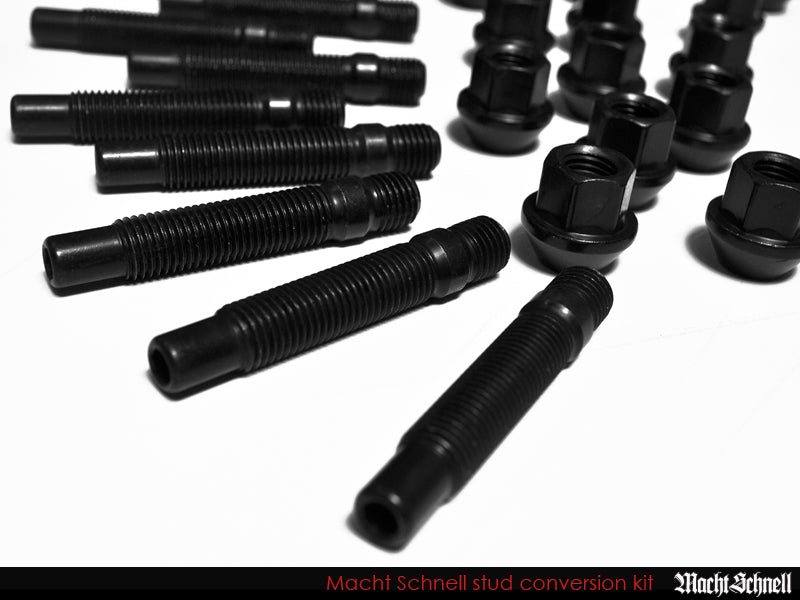

Competition Wheel Stud Kit Features:
- 45mm length allows for the use of close-ended lugs & locks (Note: cannot be used with any spacer)
- 75mm length allows for most spacer thicknesses (up to +12mm) to be used without changing studs
- 90mm length allows for spacer thicknesses (up to +20mm) to be used without changing studs
- 10.9 Grade Strength Class for ultimate strength and safety
- Bullet Tip prevents cross-threading (except for 45mm length)
- Faster and easier wheel changes
- Eliminates the need for balancing the wheel while threading in stock wheel lugs
- Black zinc coating for additional strength and corrosion/wear resistance
- Allen key insert for easy installation
- Fits most BMW models
Specifications:

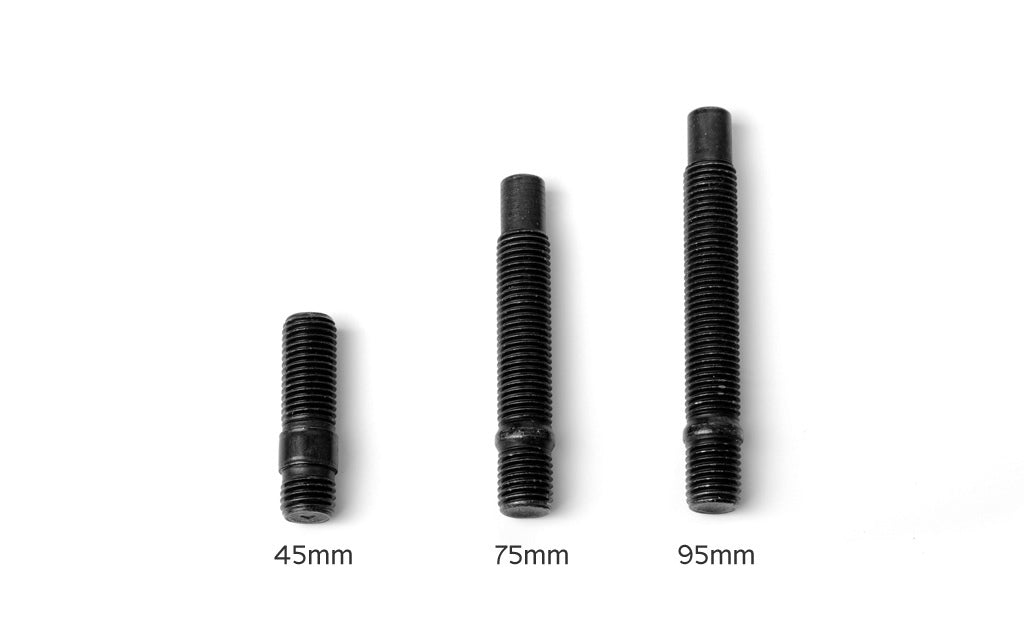

Shank length: 45mm/75mm/90mm
Thread pitch: 12mm x 1.5, 14mm x 1.25
Models Supported:
| 12mm Studs | 14mm Studs |
| 2008+ BMW E82/8 1-Series & 1M | 2012+ BMW F30 3-Series |
| 1992-2012 BMW E36, E46 & E9X 3-Series & M3 | 2011+ BMW F10 5-Series & M5 |
| 2004-2010 BMW E60/1 5-Series & M5 | 2012+ BMW F13 6-Series & M6 |
| 2005-2010 BMW E63 6-Series & M6 | 2009+ BMW F01 7-Series |
| 2002-2008 BMW E65 7-Series | M3 (F80) |
| 1996-2002 BMW E36 Z3 & Z3M | M4 (F82 / F83) |
| 2003+ BMW E85 & E89 Z4 & Z4M |
