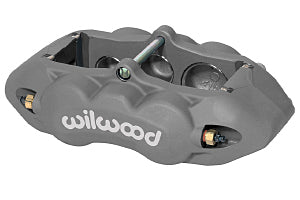

Wilwood Caliper-D8-6 L/H Front Clear 1.88/1.38/1.25in Pistons 1.25in Disc

D8-6 Caliper Front

D8-6 front calipers are a direct bolt-on 6 piston replacement for the OE factory 4 piston front calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons, and high temperature seals put an end to the rust, bore pitting, and seal failures that plague the original cast iron caliper design.

D8-6 calipers mount in the stock location over stock rotors and use the original type D8 brake pads. These calipers fit inside 1967 and later production steel rally wheels and most of the later model alloy wheels. Original steel “JK” code wheels from 1965-66, and some aftermarket alloy replica wheels, will requires a 3/16” or thicker wheel spacer for clearance.

D8-6 calipers use the same overall piston volume as the original calipers, but with the added benefit of differential bores. Differential bores counteract pad taper in high temperature racing and the 6 piston design offer greater pad support. Other than a new flexline with an 1/8”-27 NPT end for the new aluminum caliper, no other changes such as master cylinder output or front to rear bias adjustment are necessary.
