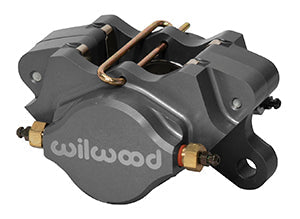

WILWOOD Caliper-Billet DLS, 3.75" mt. 1.75" Pistons, .38" Disc

Billet Dynalite Single

Wilwood’s Billet Dynalite Single utilizes close tolerance design and manufacturing techniques which results in the most rigid, lightweight and attractive caliper in the evolution of the Dynalite Single Series. Starting at 1.58 pounds, the Billet Dynalite Single is perfect for compact high performance braking as required in Open Wheel, Drag, Modified, Kart, Motorcycle and Off Road applications.

The two piston caliper is rigid, lightweight and holds a .49” thick, 1.1 cubic inch brake pad. Internal fluid passage and multiple bleed fittings permit right or left, front or rear mounting options with either 3.25” or 3.75” lug spacing, and will fit .25” to .38” thick rotors with diameters from 6.00” to 13.00”. High temperature square piston seals control piston retraction while the stainless steel deep cup pistons reduce heat transfer from the pad to the brake fluid. Calipers accept 1/8-27 NPT inlet fitting and come standard with our exclusive re-usable pad retainer clip.

The Billet Dynalite Single comes standard with our black anodized coating, but is more spectacular in the brilliant polished version (shown at right) for a show car look. The machining versatility of our CNC equipment sculpts a part that enhances wheel and suspension detail while maintaining the close tolerance design attributes of the Dynalite Single Series.
