140-11119-D

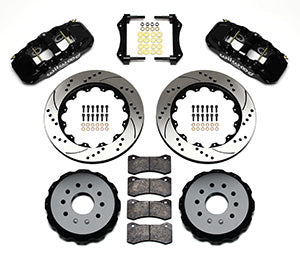

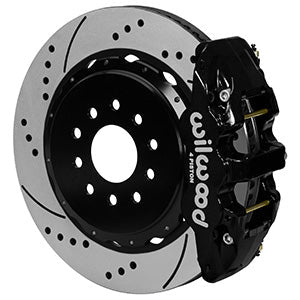

AERO4 Big Brake Rear Axle Kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the W4AR calipers, BP-10 compound pads, and oversized 14.00" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.
| Kit Summary | |
|---|---|
| Rear End Axle: | OEM |
| Axle Offset: | 0.00 |
| Mount Type: | Radial |
| Caliper Type: | 4 - Black Powder Coat |
| Rotor Diameter: | 14.00 |
| Min Wheel Diameter Req'd*: | 18 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-13338-BK |
| Right Hand - Part No: | 120-13338-BK |
| Type: | AERO4 |
| Finish Color: | Black Powder Coat |
| Piston Count: | 4 |
| Piston 1 Bore (in): | 1.12 |
| Piston 2 Bore (in): | 1.12 |
| Piston Area (In²): | 1.98 |
| Piston Type: | Stainless |
| Mount Type: | Radial |
| Brake Pad Plate: | 6617 |
| Brake Pad Area (In²): | 11.1 |
| Brake Pad Volume (In³): | 5.2 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-8401-BK |
| Right Hand - Part No: | 160-8400-BK |
| Type: | SRP Drilled Rotor |
| Style: | SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Spec-37 Iron |
| Outside Diameter (in): | 14.00 |
| Width (in): | 1.10 |
| Vane Count: | 72 CV |
| Design Type: | SRP-BLK |
| Bedded: | No |
| Dynamically Balanced: | No |
| Rotor Hats | |
|---|---|
| Hat - Part No: | 170-8169 |
| Type: | Parking Brake Hat - Standard |
| Material: | Iron |
| Finish Color: | Black E-Coat |
| Hat Offset Dimension (in): | 0.670 |
| Bolt Circle 1: | 5 x 4.75 |
| Bolt Circle 2: | |
| Bolt Circle 3: | |
| Stud Diameter - BC 1: | 0.520 |
| Stud Diameter - BC 2: | 0.000 |
| Stud Diameter - BC 3: | 0.000 |
