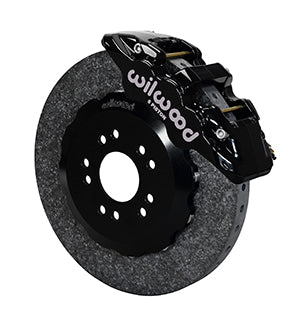

140-12756-CSIC
AERO6 WCCB Carbon-Ceramic Rotor Front Brake Kits offer an extreme performance upgrade featuring WCCB Carbon-Ceramic Dynamic Mount Rotors with Wilwood’s exclusive Bobbin Mounting System. AERO6 WCCB kits are engineered to maximize braking capacity inside custom wheels. These brake kits offer a simple bolt-on installation with minor modifications required to the front spindle only and are fully compatible with ABS and OE master cylinder output. AERO6 calipers are a competition proven and offer fully detail machined forged caliper body demonstrates superior strength and resistance to deflection and separation under high load. Black or Red powder coat calipers are available as options. 14.00” WCCB rotors are made from a proprietary blend ceramic matrix composite material commonly known as Carbon-Ceramic and dynamically using Wilwood’s proprietary integrated anti-rattle Bobbin Mounting System. WCCB rotors offer higher thermal conductivity and heat capacity in excess of conventional iron or titanium rotors of similar or even greater weight and have been developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking and wear.

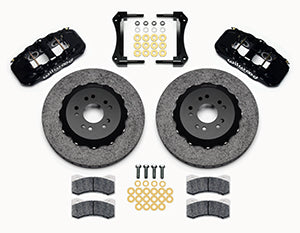

| Kit Summary | |
|---|---|
| Spindle Type: | Factory Disc Spindle |
| Mount Type: | Radial |
| Caliper Type: | 6 - Black Powder Coat |
| Rotor Diameter: | 14.00 |
| Min Wheel Diameter Req'd*: | 18 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-13290-BK |
| Right Hand - Part No: | 120-13289-BK |
| Type: | AERO6 |
| Finish Color: | Black Powder Coat |
| Piston Count: | 6 |
| Piston 1 Bore (in): | 1.62 |
| Piston 2 Bore (in): | 1.12 |
| Piston 3 Bore (in): | 1.12 |
| Piston Area (In²): | 4.04 |
| Piston Type: | Stainless |
| Mount Type: | Radial |
| Brake Pad Plate: | 6617 |
| Brake Pad Area (In²): | 11.1 |
| Brake Pad Volume (In³): | 5.2 |
| Pad Compound: | PCM |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-12442 |
| Right Hand - Part No: | 160-12442 |
| Type: | WCCD Carbon-Ceramic |
| Style: | Plain Face |
| Surface Finish: | Plain |
| Material: | C/SiC |
| Outside Diameter (in): | 14.00 |
| Width (in): | 1.25 |
| Vane Count: | 24 V |
| Design Type: | C/SiC |
| Bedded: | No |
| Dynamically Balanced: | No |
| Rotor Hats | |
|---|---|
| Hat - Part No: | 170-12624 |
| Type: | Big Brake Dynamic Bobbin Mount Hat - Short Offset |
| Material: | Aluminum |
| Finish Color: | Type III Anodize |
| Hat Offset Dimension (in): | 0.658 |
| Bolt Circle 1: | 5 x 4.50 |
| Bolt Circle 2: | 5 x 4.75 |
| Bolt Circle 3: | |
| Stud Diameter - BC 1: | 0.520 |
| Stud Diameter - BC 2: | 0.520 |
| Stud Diameter - BC 3: | 0.000 |
