140-14820

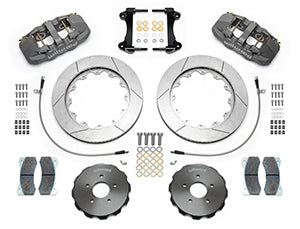

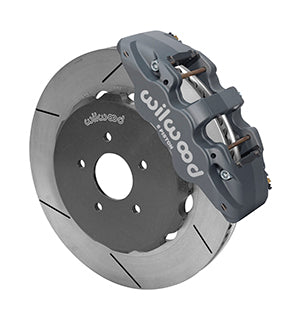

AERO6-ST six piston radial mount calipers are coupled with the high cooling capacity of 14.00” dynamically mounted GT directional vane rotors to provide the ultimate brake package for unrestricted road race competition. Thermlock pistons in the calipers resist fade and extend service life by reducing the heat transfer from the pads, caliper body, fluid, and seals. New design AERO6-ST (Thick Pad) calipers with 20mm thick pads increase endurance with longer pad life. Rotors mount to the hubs with forged aluminum hats and radial mount brackets secure the caliper to the spindle in the OE location without modification. Kits also include high temperature, high friction race compound pads and all premium grade fasteners.
| Kit Summary | |
|---|---|
| Spindle Type: | Factory Disc Spindle |
| Mount Type: | Radial |
| Caliper Type: | 6 - Type III Ano |
| Rotor Diameter: | 14.00 |
| Min Wheel Diameter Req'd*: | 18 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-15769 |
| Right Hand - Part No: | 120-15768 |
| Type: | AERO6 |
| Finish Color: | Type III Ano |
| Piston Count: | 6 |
| Piston 1 Bore (in): | 1.62 |
| Piston 2 Bore (in): | 1.12 |
| Piston 3 Bore (in): | 1.12 |
| Piston Area (In²): | 4.04 |
| Piston Type: | Thermlock |
| Mount Type: | Radial |
| Brake Pad Plate: | 6617 |
| Brake Pad Area (In²): | 11.1 |
| Brake Pad Volume (In³): | 5.2 |
| Pad Compound: | BP-30 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-8399 |
| Right Hand - Part No: | 160-8398 |
| Type: | GT 72 Curved Vane |
| Style: | GT Slotted |
| Surface Finish: | Plain |
| Material: | Spec-37 Iron |
| Outside Diameter (in): | 14.00 |
| Width (in): | 1.25 |
| Vane Count: | 72 CV |
| Design Type: | GT |
| Bedded: | No |
| Dynamically Balanced: | Yes |
| Rotor Hats | |
|---|---|
| Hat - Part No: | 170-14745 |
| Type: | Big Brake Dynamic Hat - Short Offset |
| Material: | Aluminum |
| Finish Color: | Type III Anodize |
| Hat Offset Dimension (in): | 0.540 |
| Bolt Circle 1: | 5 x 4.50 |
| Bolt Circle 2: | |
| Bolt Circle 3: | |
| Stud Diameter - BC 1: | 0.520 |
| Stud Diameter - BC 2: | 0.000 |
| Stud Diameter - BC 3: | 0.000 |
