140-16026-R

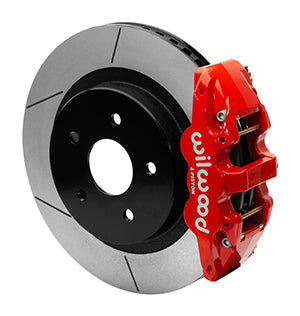

AERO4 Big Brake rear axle kits for 2013 to 2017 for Ram 1500 Trucks replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrade kit. High capacity braking from the Aero4 calipers, BP-20 compound pads, and oversized 15.00" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on vehicles with increased brake requirements from high GVW. Kit comes complete with stainless braided flex lines.
| Kit Summary | |
|---|---|
| Rear End Axle: | OEM |
| Axle Offset: | 0.00 |
| Mount Type: | Radial |
| Caliper Type: | 4 - Red Powder Coat |
| Rotor Diameter: | 15.00 |
| Min Wheel Diameter Req'd*: | 19 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-13282-RD |
| Right Hand - Part No: | 120-13281-RD |
| Type: | AERO4 |
| Finish Color: | Red Powder Coat |
| Piston Count: | 4 |
| Piston 1 Bore (in): | 1.62 |
| Piston 2 Bore (in): | 1.38 |
| Piston Area (In²): | 3.56 |
| Piston Type: | Stainless |
| Mount Type: | Radial |
| Brake Pad Plate: | 6617 |
| Brake Pad Area (In²): | 11.1 |
| Brake Pad Volume (In³): | 5.2 |
| Pad Compound: | BP-20 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-15755-GTB |
| Right Hand - Part No: | 160-15755-GTB |
| Type: | GTB Vented Rotor & Hat |
| Style: | GT Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Iron |
| Outside Diameter (in): | 15.00 |
| Width (in): | 1.25 |
| Vane Count: | 48 V |
| Design Type: | GT-BLK |
| Bedded: | No |
| Dynamically Balanced: | No |
