140-16047-R

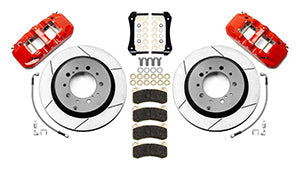

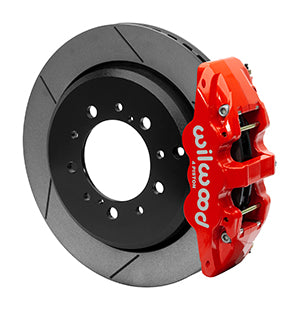

AERO4-DS Big Brake rear axle kits for 2016 to 2018 for Toyota Land Cruiser (J200) and Lexus ZLX570 replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrade kit. High capacity braking from the Aero4 Dust Boot calipers incorporate an exclusive dust wiper seal that further protects the piston bore from dust and corrosion. BP-20 compound pads, and oversized 14.50" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on vehicles with increased brake requirements from high GVW. Kit comes complete with stainless braided flex lines.
| Kit Summary | |
|---|---|
| Rear End Axle: | OEM |
| Axle Offset: | 0.00 |
| Mount Type: | Radial |
| Caliper Type: | 4 - Red Powder Coat |
| Rotor Diameter: | 14.50 |
| Min Wheel Diameter Req'd*: | 18 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-15598-RD |
| Right Hand - Part No: | 120-15598-RD |
| Type: | AERO4-DS |
| Finish Color: | Red Powder Coat |
| Piston Count: | 4 |
| Piston 1 Bore (in): | 1.38 |
| Piston 2 Bore (in): | 1.38 |
| Piston Area (In²): | 3.00 |
| Piston Type: | Stainless |
| Mount Type: | Radial |
| Brake Pad Plate: | 6617 |
| Brake Pad Area (In²): | 11.1 |
| Brake Pad Volume (In³): | 5.2 |
| Pad Compound: | BP-20 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-15475-GTB |
| Right Hand - Part No: | 160-15475-GTB |
| Type: | GTB Vented Rotor & Hat |
| Style: | GT Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Iron |
| Outside Diameter (in): | 14.50 |
| Width (in): | 1.10 |
| Vane Count: | 42 V |
| Design Type: | GT-BLK |
| Bedded: | No |
| Dynamically Balanced: | N |
