XKMZ24005-1C

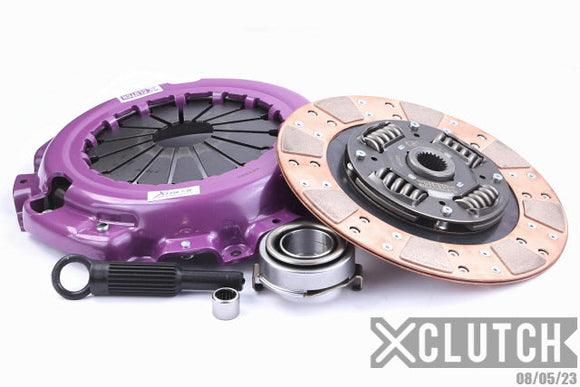

Stage 2 - Cushioned Ceramic Clutch Kit
A cushioned ceramic disc offers a dampening layer between the two friction surfaces which is clamped together as the force of the pressure plate excerted on the disc. This dampening along with a sprung hub offers driveability despite the ceramic friction surface. These kits are ideal for track cars that require some driveability or very high horsepower street vehicles that require the added heat capacity of the ceramic friction material.
XClutch kits are available in a variety of configurations with different kit inclusions. If you require components that aren't listed below, please view the other listings for your vehicle to determine if there is a more suitable kit for your requirements or contact our friendly sales team.
Release Bearing Included
Yes
Pilot Bearing Included
Yes
Alignment Tool Included
Yes
CLUTCH KIT SPECIFICATIONS
Recommended Use
Performance Street Use requiring high heat capacity.
Clamping Force % Increase
80 Percent
Torque Capacity (inc. Factor of Safety)
490 Foot Pounds
Clutch Disc Diameter
9 7/16 Inch
Flywheel Step (Inches)
+0.020
Input Shaft Diameter
1 Inch
Input Shaft Spline Count
23
