ZONC29F

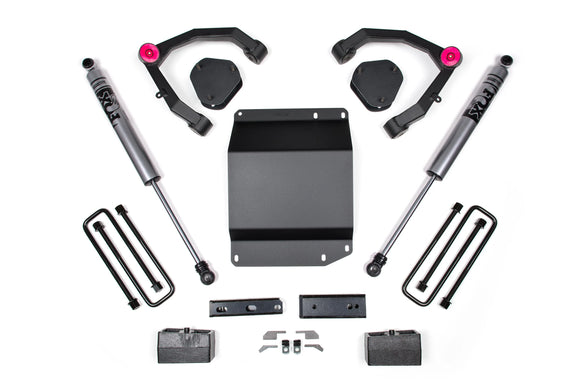

This lift kit is built around replacement upper control arms that dwarf factory components and are made from fully-welded 1/8" steel plate and CNC-machined ball joint and bushing mounts to provide significant gains in suspension travel. The arms utilize high quality ball joints that can handle heavy-duty use and work in conjunction with stock-style rubber mount bushings to provide a quiet ride. A fully integrated front differential drop and differential skid plate system relocates the differential for optimal driveline angles. The included strut spacers provide a full 3.5" of lift and install easily on the factory struts without requiring the use of a strut compressor. A block and U-bolt system nets 2" of lift and provides an athletic level vehicle stance.
Features & Benefits
- Fully welded, heavy duty upper control arms that dwarf the factory arms. CNC-machined UCA bushing and ball joint cups.
- OE rubber bushings and greasable factory style ball joints for quiet, reliable, and low maintenance operation.
- Improved UCA range of motion compared to stock arms UCAs utilize replaceable ball joints and bushings.
- Fully integrated front differential drop and skid plate for optimal driveline angles
Recommended Tires & Wheels
(Trimming may be required)
- 285 / 70 with 17 x 9 and 4.5 in. Backspace
Shock Option
Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish
FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting silver coated finish
