ZONC47F

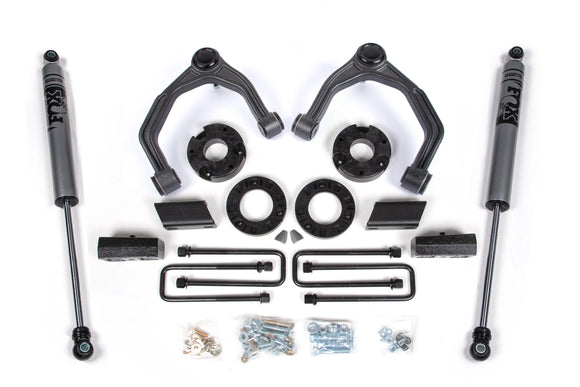

More than a leveling kit, this 3.5" Adventure Series kit takes advantage of Adventure Series upper control arms to offer improved performance and off-road capability with clearance for up to 35" tires. These high strength UCAs allow for increased suspension travel, improved strength and durability, and easy maintenance. Lift is provided by a 2-piece, combination top-mount and preload strut spacers design to provide a full 3.5" of lift without overextending the suspension at full droop (as is the case with kits using just a top mounted spacer). Optional weld-in steering stops are supplied allowing clearance for up to 35" tires. In the rear of this kit, a cast 2" lift block lifts and levels.
Features & Benefits
- High strength UCAs are cast, ductile iron and specially designed with an indexed ball joint cup to correct ball joint operating angle for more suspension travel.
- Utilizes a combination top-mount and preload strut spacers to correctly lift vehicle.
- Retain factory ride quality without over extending suspension/drivelines at full suspension droop.
- Maintains ride and handling characteristics with clearance for larger tires. 2" rear lift blocks and heavy duty u-bolts to level the stance.
- Nitro series gas or FOX 2.0 adventure series gas shocks to improve performance.
- Optional Steering Stops included for larger wheel/tire combinations.
Recommended Tires & Wheels
(Trimming may be required)
- (Chevy) 37 x 12.5 with 20 x 9 and 5.5 in. Backspace
- (GMC) 35 x 12.5 with and in. Backspace
Rear Shock Option
Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish
FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting silver coated finish
