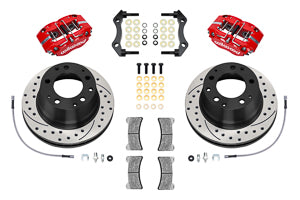

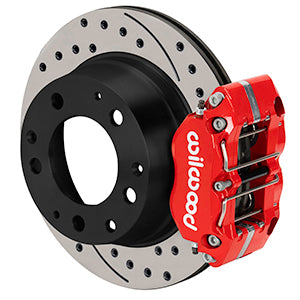

Wilwood kit rear NDPR PORS 911 1984-89 11.42X.95 rotor SRP red W/LINES

140-16682-DR

Narrow Dynapro-P Radial Rear Brake Kit

Forged Narrow Dynapro Radial caliper, pad, rotor and bracket kits are engineered as high performance street and race for 1984-1989 Porsche 911’s with 3.00" caliper mounts. These kits combine the high-tech styling and superior performance of the NDPR-P calipers and the positive response, long wear, high fade resistance, and easy clean properties of the BP-10 compound Smart Pads. Kits include plain face or SRP drilled one piece rotors made from proprietary alloys. These kits bolt directly to the front strut without the need for additional brackets or adapters. Braided stainless flexlines are included.

Fitment & Installation Details

Narrow Dynapro-P Radial Rear Brake Kit Assembly Schematic

Narrow Dynapro-P Radial Rear Brake Kit Assembly Schematic

Rear End / Axle Housing Flange
Confirm The Configuration! OEM Flange	Confirm Offset Measurement! Axle Flange Cross-Section
Search Rear Kits By Rear End/Axle Offset

	AXLE OFFSET: 0.00 Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance	Assembly Instructions
Wheel Clearance Diagram	Part 1

Notes

Compatible Vehicles for this Brake Kit

BRAKE KIT:   Narrow Dynapro-P Radial Rear Brake Kit

This Brake Kit is Compatible with the Following Vehicle Makes:   Porsche

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   OEM - Rear Kit

AXLE OFFSET:   0.00

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.

Offset: 0.00

Kit Components & Specifications

Calipers
Left Hand - Part No:	120-16687-RD
Right Hand - Part No:	120-16687-RD
Type:	Narrow Dynapro-P Radial Mount
Finish Color:	Red Powder Coat
Piston Count:	4
Piston 1 Bore (in):	1.12
Piston 2 Bore (in):	1.12
Piston Area (In²):	1.98
Piston Type:	Stainless
Mount Type:	Radial
Brake Pad Plate:	4812
Brake Pad Area (In²):	5.1
Brake Pad Volume (In³):	1.71
Pad Compound:	BP-10
Narrow Dynapro-P Radial Mount Caliper - Red Powder Coat

Rotors
Left Hand - Part No:	160-16700-BK
Right Hand - Part No:	160-16699-BK
Type:	SRP Drilled Rotor & Hat
Style:	SRP Drilled & Slotted
Surface Finish:	Black Electro Coat
Material:	Iron
Outside Diameter (in):	11.42
Width (in):	0.95
Vane Count:	Vented
Design Type:	SRP-BLK
Burnished:	No
Dynamically Balanced:	No
SRP Drilled Rotor & Hat - Iron - Black Electro Coat

Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories

Caliper Parts
O-ring Kit:	130-2579
Replacement Dustboot:	N-A
Replacement Piston 1:	200-8439
Replacement Piston 2:	200-8439
Replacement Piston 3:	N-A
Replacement Piston 4:	N-A
CrossOver O-Ring Kit:	130-10540
Crossover Tube:	N-A
Self-Bleeder Tube:	N-A
Bridge Bolt Kit:
Wear Plate - Left Hand:	300-5875
Wear Plate - Right Hand:	300-5875
Pad Retainer:	300-9636
Bleed Screw Kit:	220-0627

Brake Lines
Rear Line Kit:	220-16710
