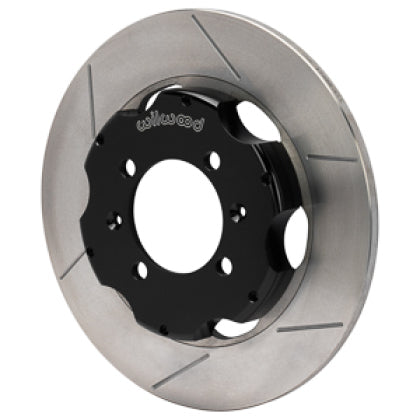

Wilwood Pro-Matrix Rear Kit Slotted 01-05 Mazda Miata Sport

Wilwood Pro-Matrix Rear Kit Slotted 01-05 Mazda Miata Sport

$649.99 CAD $728.74 CAD Save $78.75 CAD

Shipping calculated at checkout

Wilwood SKU: 140-17645

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Description Availability

140-17645

Kit Summary
Rear End Axle: OEM
Axle Offset: 0.00
Mount Type:
Caliper Type: 0 - No Calipers Included
Rotor Diameter: 10.85
Min Wheel Diameter Req'd*: 15

*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram

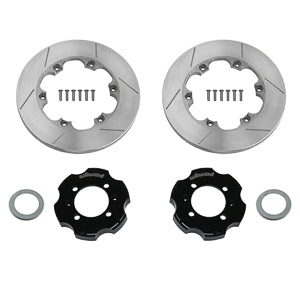

Promatrix Rear Replacement Rotor Kit

ProMatrix rotor upgrade kits offer measurable brake performance improvements to racers and enthusiasts using the OE factory brake calipers. Two-piece provide high temperature durability for the track. Plain, GT Slotted or SRP drilled and slotted black e-coat rotor kits provide high-tech style with corrosion resistance for the street.

Fitment & Installation Details

Promatrix Rear Replacement Rotor Kit Assembly Schematic

Promatrix Rear Replacement Rotor Kit Assembly SchematicPromatrix Rear Replacement Rotor Kit Assembly Schematic Zoom Image

Rear End / Axle Housing Flange
Confirm The Configuration!

OEM Flange 		Confirm Offset Measurement!

Axle Flange Cross-Section
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 0.00
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance Assembly Instructions

Wheel Clearance DiagramWheel Clearance Diagram Zoom Image
Part 1
Notes
1. OE replacement rotor kit.


Compatible Vehicles for this Brake Kit


BRAKE KIT:   Promatrix Rear Replacement Rotor Kit

This Brake Kit is Compatible with the Following Vehicle Makes:   Mazda

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   OEM - Rear Kit

AXLE OFFSET:   0.00

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.
fitment 1
Offset: 0.00


Kit Components & Specifications

Calipers
Left Hand - Part No:
Right Hand - Part No:
Type:
Finish Color:
Piston Count:
Piston 1 Bore (in):
Piston Area (In²):
Piston Type:
Mount Type:
Brake Pad Plate:
Brake Pad Area (In²):
Brake Pad Volume (In³):
Pad Compound:
Rotors
Left Hand - Part No: 160-17388
Right Hand - Part No: 160-17388
Type: GT Solid Steel Rotor
Style:
Surface Finish:
Material:
Outside Diameter (in):
Width (in):
Vane Count:
Design Type:
Burnished:
Dynamically Balanced:
GT Solid Steel Rotor - - GT Solid Steel Rotor - -
Rotor Hats
Hat - Part No: 170-11682
Type: Big Brake Hat - Short Offset
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 0.750
Bolt Circle 1: 4 x 3.93
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.500
Stud Diameter - BC 2: 0.000
Stud Diameter - BC 3: 0.000
Big Brake Hat - Short Offset - Aluminum - Black E-CoatBig Brake Hat - Short Offset - Aluminum - Black E-Coat Zoom Image
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories

Caliper Parts
O-ring Kit:
Replacement Dustboot:
Replacement Piston 1:
Replacement Piston 2:
Replacement Piston 3:
Replacement Piston 4:
CrossOver O-Ring Kit:
Crossover Tube:
Self-Bleeder Tube:
Bridge Bolt Kit:
Wear Plate - Left Hand:
Wear Plate - Right Hand:
Pad Retainer:
Bleed Screw Kit:
Brake Lines
Front Line Kit:
 220-12176
Hat
Bolt Kit: 230-12176
Hub
Bolt Kit:

This website does not show live stock.

If the product is in stock we ship same/next day.

If a product needs to be ordered in the typical wait time is 1-2 weeks (Can Be Longer). This means the product is special ordered.

In General Special orders cannot be canceled, although some brands and suppliers allow it with a restocking fee and or return shipping.

Shipping times vary depending if the part is in stock at our warehouse and which shipping option is chosen at checkout.

Please contact us for an accurate ETA and availability.
