HKS Oil Parts Kit for GTIII-5R/4R Oil Piping (Required to Replace T51R/TO4Z to GTIII-5R/GTIII-4R)

HKS Oil Parts Kit for GTIII-5R/4R Oil Piping (Required to Replace T51R/TO4Z to GTIII-5R/GTIII-4R)

$241.40 CAD

Shipping calculated at checkout

HKS SKU: 14008-AK008

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Description Availability

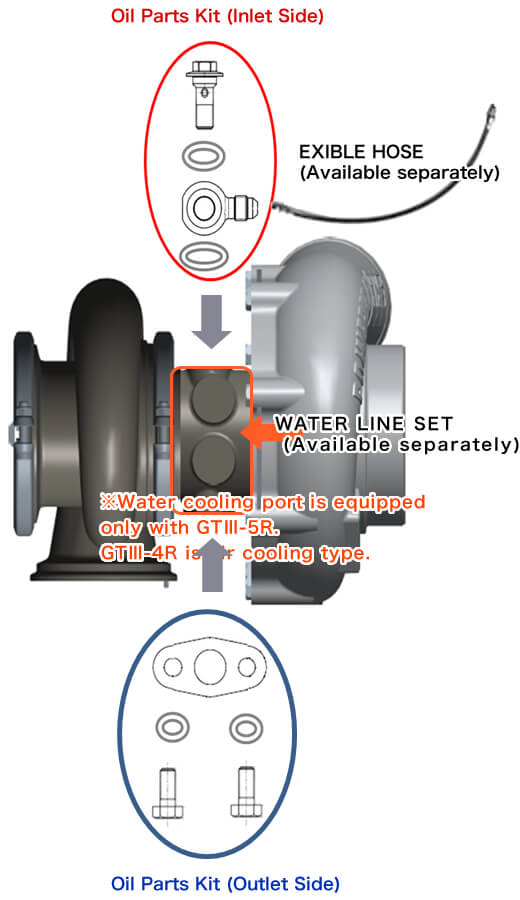

OIL PARTS KIT GTIII-5R & 4R



The oil parts kit for GTIII-5R and 4R's oil piping.
This kit is required to replace T51R and TO4Z to GTIII-5R and GTIII-4R.

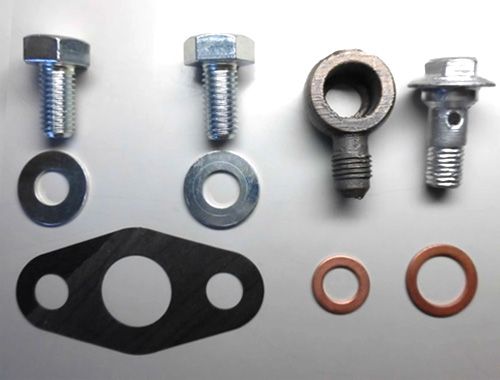

【KIT PARTS】

PRODUCT SPEC. QT REMARKS
BANJO BOLT M10 x P1.25 1 To install the oil inlet parts
BANJO D10 - AN4 Mele 1
Cu. WASHER D14 1
D10 1
BOLT M10 x P1.5 2 To install the oil outlet parts
OIL RETURN FLANGE GASKET   1
WASHER M10 2










【FLEXIBLE HOSE】

LENGTH CODE No. REMARKS
L=300mm 1408-RA005 AN4 Female - AN4 Female
L=460mm 1408-RA013 AN4 Female - AN4 Female
L=600mm 1408-RA006 AN4 Female - AN4 Female





【Kit Parts】

  • Hose L=1000 x1
  • Banjo D14 x2
  • Cu. Washer D14 x4
  • Banjo Bolt M14-P1.5 x2
  • Hose Band #4 x2





【GT TURBINE WATER LINE SET】

PIPE Dia. CODE No.
D8 1499-RA041
D10 1499-RA042





NOTE

  • If the oil return pipe's thread size is smaller than M10, a hole must be enlarged using φ10.5nn drill.
