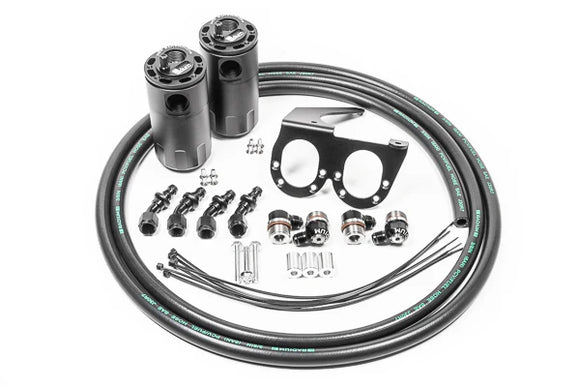

Radium Engineering Nissan R35 GT-R Dual Catch Can Kit CCV Fluid Lock

• Nissan R35 GT-R

The PCV kit is NOT directly compatible with 08-11 GT-Rs which did not have an OEM strut bar.
For RHD vehicles, some modifications may be required for PCV catch can mounting.

To retain factory functionality, the two CCV catch cans run inline between each crankcase vent (CCV) port and the corresponding turbo inlets.

The 20-0555 crankcase vent kit mounts on the front of the engine and interfaces with the breather lines coming off of the heads and going to the turbo intake piping. This kit contains two catch cans (one for each head breather).

When deciding which kit (or kits) to purchase, it is important to remember that both kits working together offer the most protection from oil ingestion into the engine. The PCV side kit is effective at keeping oil out of the intake manifold when the PCV valve is open, such as during light cruising, idle, etc.  When in boost, the PCV valve closes and all the engine blow-by comes out of the head breathers. This is a good reason to have catch cans on the crankcase breathers.

At low loads, these catch cans experience atmospheric pressure. However, when the engine is at high load (WOT), these vents will experience high flow out of the crankcase. This would normally lead to oil and sludge accumulation in the air filter intake pipe. Oil accumulation will occur in the intercooler which lowers the thermal efficiency properties of the heat exchanger and leads to decreased performance.

NOTES

• The dual CCV catch can kit does NOT address blow-by from the PCV valve side of the crankcase.
• The dual CCV catch can kit is compatible and recommended to be used with the PCV catch can kit. See 20-0566-FL below.
