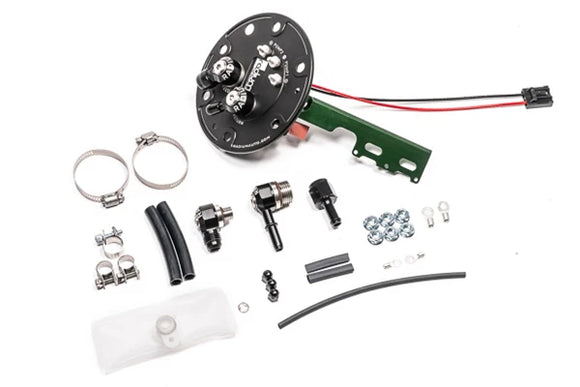

Radium Engineering 94-01 Acura Integra/ 92-00 Honda Civic Fuel Hanger For Walbro GSS342 or AEM 50-12

This Radium Engineering fuel hanger replaces the stock fuel pump assembly. No cutting or modifying of the vehicle's sheet metal or fuel tank is required for installation.

The fuel pump is positioned in the factory collector bowl for fuel starvation protection.

PORTS & FITTINGS

The fuel pump outlet is tapped for 8AN ORB (3/4"-16) female threads on the top plate. There are multiple adapter fittings included for the outlet.

• The preinstalled -6AN male fitting permits an aftermarket feed line.
• The 8.5mm barbed adapter fitting permits the (94-95 Integra/92-95 Civic) OEM feed line to be reused.
• The SAE quick connect fitting permits the (96-01 Integra/96-00 Civic) OEM feed line to be reused.
• For other compatible adapter fittings, click HERE.

The return inlet is tapped for 4AN ORB (7/16"-20) female threads on the top plate. There are 2 fittings included for the return port.

• The preinstalled 6.5mm barbed fitting permits the OEM return line to be reused.
• The provided -6AN male fitting permits an aftermarket return line.
• For other compatible adapter fittings, click HERE.

All fittings are machined low enough to clear the fuel pump access cover. The 96-01 Integra and 96-00 Civic require the OEM return hose to be extended to reach the hanger.

The hanger is configured to be used with 1 aftermarket fuel pump. If 2 aftermarket pumps are required, the supplementary dual pump add-on 20-0796-00 must also be purchased. Choosing the best fuel pump(s) is based on the expected engine power output, fuel type (gasoline, E85, etc.), and fuel pressure.

ELECTRICAL

The custom designed anti-rotation stainless steel electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE.
