Radium Engineering Nissan R35 GT-R Fuel Hanger Feed Kit - Microglass

20-0851-05

20-0851-05 Fuel Hanger Feed Kit Nissan R35 GT-R Microglass Filter

When installing a Radium in-tank fuel hanger with high-flow aftermarket pumps, the stock R35 fuel lines may not be sufficient. The fuel hanger feed kits include everything required to connect all Radium fuel hangers directly to Radium fuel rails. It comes with new PTFE feed lines and re-uses the factory feed line as the return for the regulator.

The fuel filters provided in the 20-0851-03 and 20-0851-05 feed kits feature an integrated check valve to hold fuel pressure after the engine is shut OFF. Because fitment is extremely tight, the 10AN pump outlet port is first split into two 6AN feed lines. The dual 6AN PTFE lines run parallel under the vehicle and are secured using billet aluminum retainers with OEM hardware. The dual 6AN PTFE lines run through a serviceable fuel filter that secures using a GT-R specific heat shield. The 2 lines split and are ready to be installed into the 6AN male fittings on the front ports of the fuel rails (not included).

COMPATIBILITY

• Nissan R35 GT-R (LHD)

Compatible with left hand drive vehicles only.

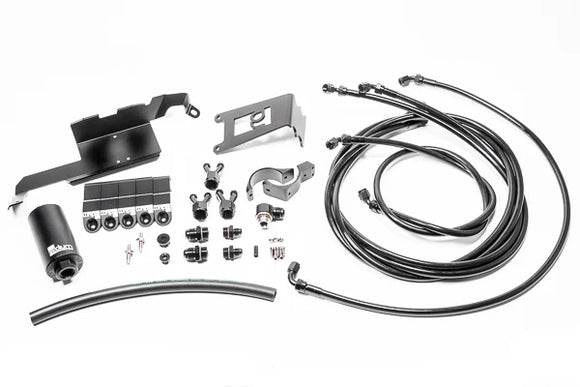

INCLUDES

• 6 Micron Microglass Fuel Filter with Check Valve
• 10AN ORB to 10AN Male Low Profile Fitting
• 10AN to 6AN Y-Adapter Fittings
• Fuel Line Retaining Mounts
• R35 Filter Heat Shield Bracket
• 60mm 2-Piece Filter Clamp
• 6AN PTFE Fuel Hoses
• Stainless Steel Hardware
