Radium Engineering Toyota 1GR-FE Fuel Rails Single VVT-i

• 04-15 Toyota Tacoma
• 02-09 Toyota 4Runner
• 05-09 Toyota Tundra
• 06-09 Toyota FJ Cruiser
• 02-09 Toyota Hilux Surf
• 05-15 Toyota Fortuner
• 2005-up Toyota Hilux
• 2002-up Toyota Land Cruiser

Not compatible with newer 1GR-FE engines with dual VVT-i.

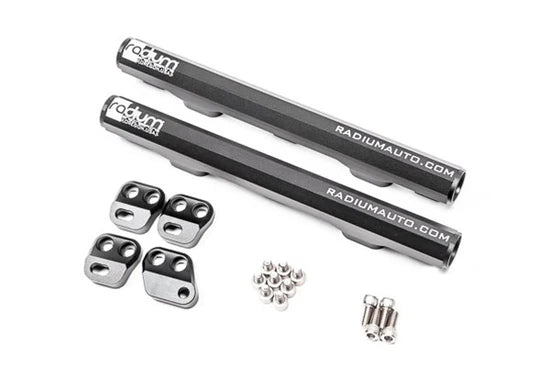

Manufactured with 0.69" large internal bores, the Radium Engineering fuel rails can support all necessary engine power requirements. CNC machined aluminum mounting tabs are included for a factory fit and to maintain the original fuel rail height so both OEM or aftermarket equivalent injectors can work.

Each fuel rail features two 8AN ORB threaded end ports (4 total). The two fuel rails and all necessary mounting hardware are provided. Fittings and hose will need to be individually purchased.

The fuel rail ports are tapped for 8AN ORB. Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

• 8AN ORB Adapter Fittings can be found HERE
• 8AN ORB Direct Mount Regulators can be found HERE
• 8AN ORB Fuel Pulse Dampers can be found HERE
• Fuel Pressure Gauge Adapters can be found HERE
