Radium Engineering BMW E36 E46 Fuel Hanger Plumbing Kit Microglass Filter

20-1175-05

20-1175-05 Fuel Hanger Plumbing Kit, BMW E36 E46, Microglass Filter

COMPATIBILITY

• 90-99 BMW E36 316i
• 90-98 BMW E36 318i
• 92-98 BMW E36 318is
• 94-00 BMW E36 318ti
• 91-98 BMW E36 320i
• 95-98 BMW E36 323i
• 91-95 BMW E36 325i
• 95-98 BMW E36 328i
• 92-99 BMW E36 M3

OVERVIEW

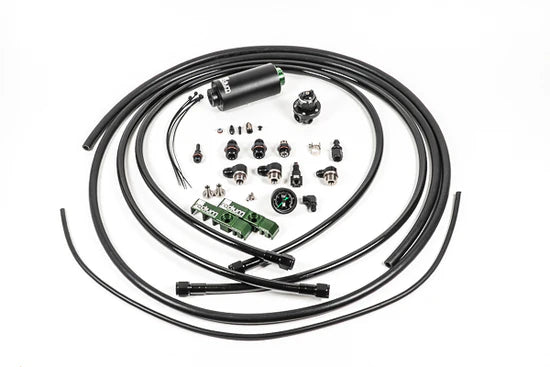

These kits provide all necessary plumbing to and from the engine including a fuel filter, fuel pressure regulator, fuel lines, adapter fittings, and mounting hardware.

First, a low profile 8AN male banjo fitting is installed to the fuel hanger pump outlet. 8AN PTFE fuel hose runs to the LH side over the top of the fuel tank. It then turns downward and routes along the underside of the chassis through 2 billet fuel/brake line retainers. A new 6 micron Microglass billet high flow fuel filter is mounted in the OEM location. From the fuel filter outlet, another 8AN PTFE fuel hose runs into the engine bay and towards the front of the fuel rail (not included). A low profile 8AN male banjo fitting is installed to the fuel rail. A direct mount fuel pressure regulator and gauge is mounted at the rear of the fuel rail.

A new 6AN return hose with an SAE quick connect adapter is constructed to route fuel from the direct mount regulator to the rear. A low profile 6AN male banjo fitting is installed to the fuel hanger return port, as shown below.

New vacuum tubing is provided to replace the OEM hard lines.

INCLUDES

• DMR-RA Fuel Pressure Regulator
• 0-100psi Fuel Pressure Gauge
• 6 micron Microglass fuel filter
• 8AN Fuel Filter Adapter Fittings
• 8AN and 6AN Fuel Hanger Fittings
• Fuel Brake Line Retainers (x2)
• 8AN Fuel Rail Adapter Fitting
• 8AN PTFE Fuel Feed Hoses
• 6AN Fuel Return Hose
• 6AN SAE Quick Connect
• 6AN PushLok Hose End
• Stainless Steel Hardware
• 5/32" Vacuum Tubing
• Misc. Adapter Fittings
